Gree GMV-ND28ZD/A-T

GREE GMV5 INDOOR UNIT SERVICE MANUAL
235
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND22PL/B-T
CM800N3560
GMV-ND25PL/B-T
CM810N0010
GMV-ND28PL/B-T
CM810N0020
GMV-ND32PL/B-T
CM800N3570
GMV-ND36PL/B-T
CM810N0030
Part code
Quantity
17
Left Side Plate Assy
01314100076
1
18
Air Outlet Frame Assy
01374100057
1
19
Hook
02112446
2
20
Hook
01344100034
2
21
Evaporator Assy
01024100039
1
22
Top Cover Board Assy
01265200066
1
23
Right Side Plate Assy
01315200053
1
24
Display Board
01315200053
1
25
Sensor Sub-assy
39004168G
1
Above data is subject to change without notice, pls reference the SP in global service website.

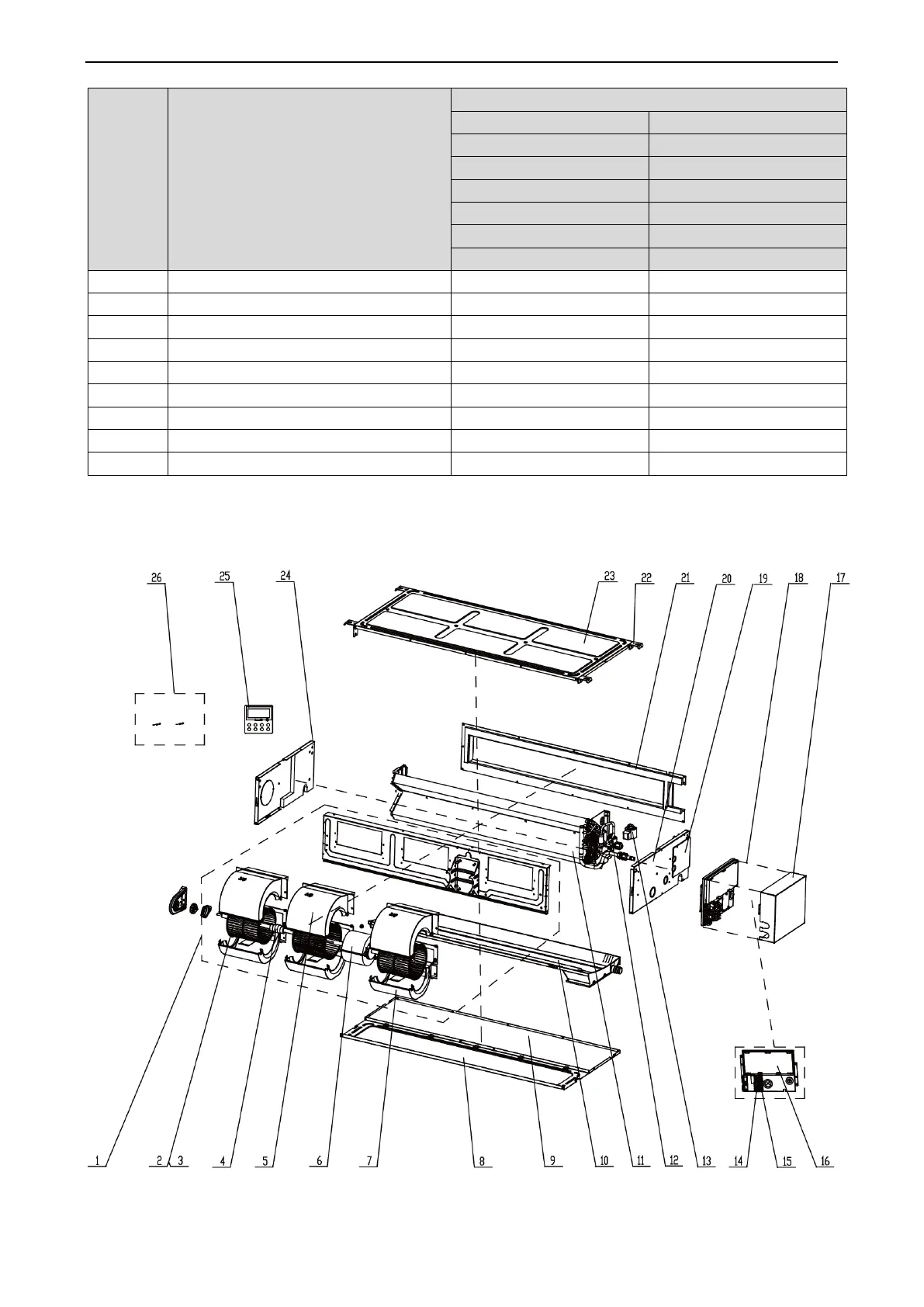

Exploded View of GMV-ND40PL/B-T, GMV-ND45PL/B-T, GMV-ND50PL/B-T, GMV-ND56PL/B-T,
GMV-ND63PL/B-T:
