MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
99

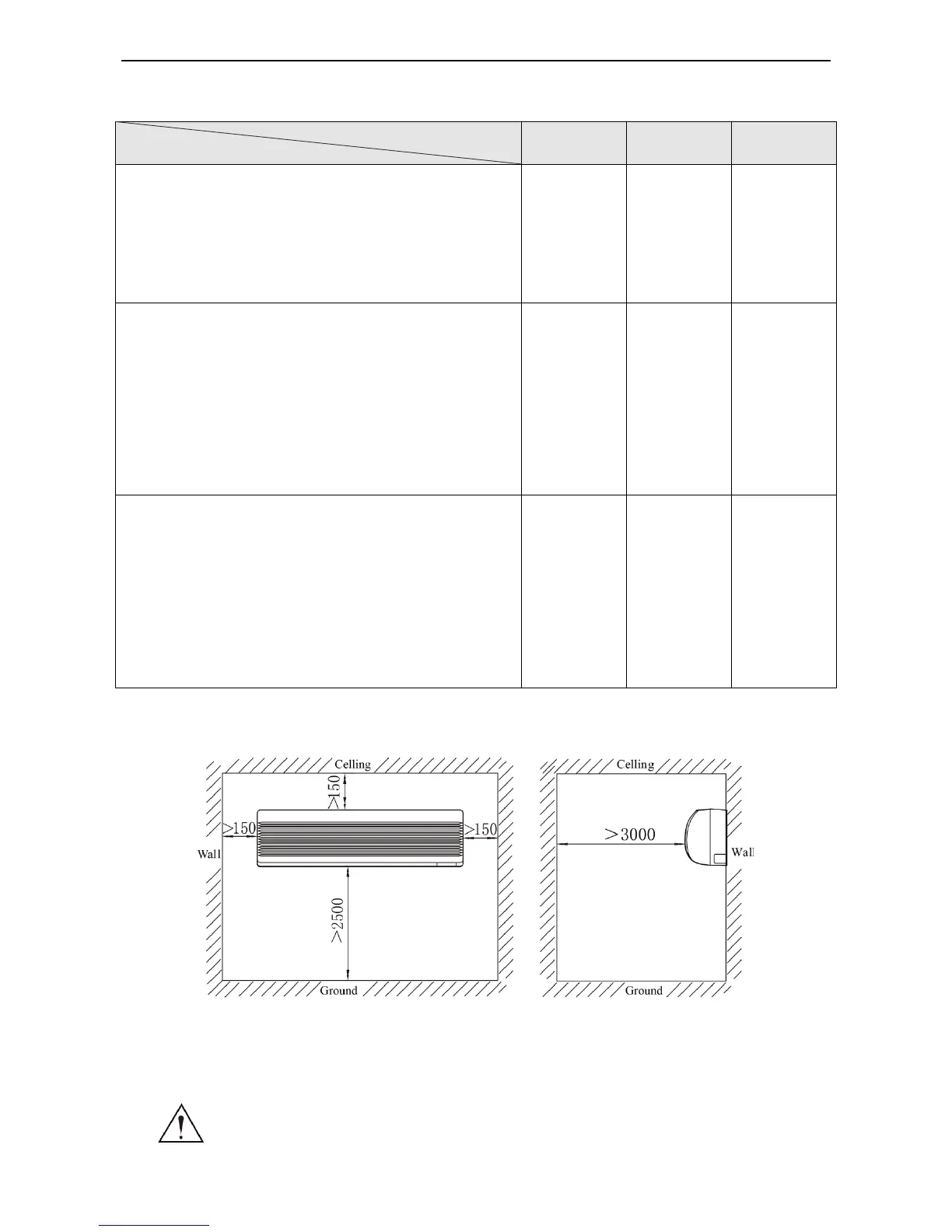

The table below lists the detailed dimensions.
Unit: mm
GMV-N22G/A3A-K, GMV-N28G/A3A-K, GMV-N22G/A2A-K
GMV-N28G/A2A-K, GMV-N22G/A4A-K, GMV-N28G/A4A-K
GMV-N22G/A8A-K, GMV-N28G/A8A-K, GMV-N22G/C9A-K
GMV-N28G/C9A-K, GMV-N22G/E3A-K, GMV-N28G/E3A-K,
GMV-N22G/A3A-D, GMV-N28G/A3A-D,GMV-N22G/A2A-D, GMV-
N28G/A2A-D, GMV-N22G/A4A-D,GMV-N28G/A4A-D, GMV-
N22G/A8A-D, GMV-N28G/A8A-D,GMV-N22G/C9A-D, GMV-
N28G/C9A-D, GMV-N22G/E3A-D, GMV-N28G/E3A-D
GMV-N36G/A3A-K, GMV-N45G/A3A-K, GMV-N50G/A3A-K
GMV-N36G/A2A-K, GMV-N45G/A2A-K, GMV-N50G/A2A-K
GMV-N36G/A4A-K, GMV-N45G/A4A-K, GMV-N50G/A4A-K
GMV-N36G/A8A-K, GMV-N45G/A8A-K, GMV-N50G/A8A-K
GMV-N36G/C9A-K, GMV-N45G/C9A-K, GMV-N50G/C9A-K
GMV-N36G/E3A-K, GMV-N45G/E3A-K, GMV-N50G/E3A-K
GMV-N36G/A3A-D, GMV-N45G/A3A-D, GMV-N50G/A3A-D
GMV-N36G/A2A-D, GMV-N45G/A2A-D, GMV-N50G/A2A-D
GMV-N36G/A4A-D, GMV-N45G/A4A-D, GMV-N50G/A4A-D
GMV-N36G/A8A-D, GMV-N45G/A8A-D, GMV-N50G/A8A-D
GMV-N36G/C9A-D, GMV-N45G/C9A-D, GMV-N50G/C9A-D
GMV-N36G/E3A-D, GMV-N45G/E3A-D, GMV-N50G/E3A-D
GMV-N56G/A3A-K, GMV-N63G/A3A-K, GMV-N71G/A3A-K
GMV-N56G/A2A-K, GMV-N63G/A2A-K, GMV-N71G/A2A-K
GMV-N56G/A4A-K, GMV-N63G/A4A-K, GMV-N71G/A4A-K
GMV-N56G/A8A-K, GMV-N63G/A8A-K, GMV-N71G/A8A-K
GMV-N56G/C9A-K, GMV-N63G/C9A-K, GMV-N71G/C9A-K
GMV-N56G/E3A-K, GMV-N63G/E3A-K, GMV-N71G/E3A-K
GMV-N56G/A3A-D, GMV-N63G/A3A-D, GMV-N71G/A3A-D
GMV-N56G/A2A-D, GMV-N63G/A2A-D, GMV-N71G/A2A-D
GMV-N56G/A4A-D, GMV-N63G/A4A-D, GMV-N71G/A4A-D
GMV-N56G/A8A-D, GMV-N63G/A8A-D, GMV-N71G/A8A-D
GMV-N56G/C9A-D, GMV-N63G/C9A-D, GMV-N71G/C9A-D
GMV-N56G/E3A-D, GMV-N63G/E3A-D, GMV-N71G/E3A-D
3.11.2 Installation space
Unit:mm
3.11.3 Installation notice
Connect the ends of the connection pipe with two leading pipes, and then tighten the joint nuts tightly.
Connect the connect pipe with the two relative leading pipe, tie the nut on tie –in of the connect pipe
tightly.
Notes:
① Be careful in bending the connection pipes, or you would damage the pipes.
