Gree GMV-ND63T/A-T Service Manual

MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
188
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND63ZD/A-T
CM600N0410
GMV-ND71ZD/A-T
CM600N0370
GMV-ND90ZD/A-T
CM600N0330
Part code
Quantity
46
Centrifugal fan
'1041410101
3
47
Front volute casing
'26905208
3
48
Rear Connection board
'01349418
1
49
Rotary Axis Sub-Assy
'73018052
1
50
Joint Slack
'73018731
1
51
Motor Support Sub-Assy
'01809400029
1
52
Brushless DC Motor
'15705200005
1
53
Rear volute casing
'26909419
3
54
Filter
'11126002
1
55
Top Cover Board Sub-assy
'01269405
1
56
Front Grill sub-assy
'01579402
3
57
Drainage Pipe Sub-assy
'05235434
1
Above data is subject to change without notice,pls reference the SP in global service website.

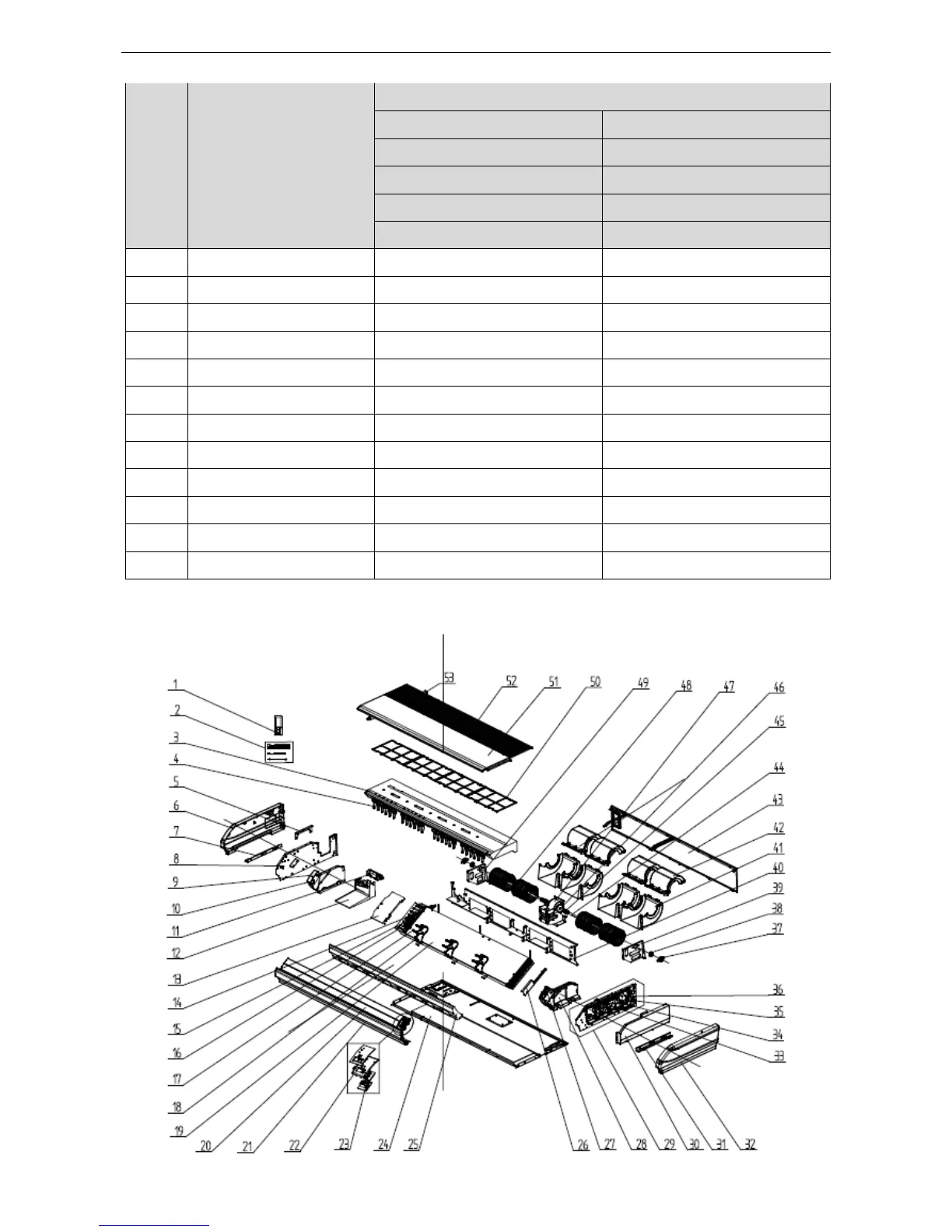

Exploded View of GMV-ND112ZD/A-T、GMV-ND125ZD/A-T、GMV-ND140ZD/A-T：
