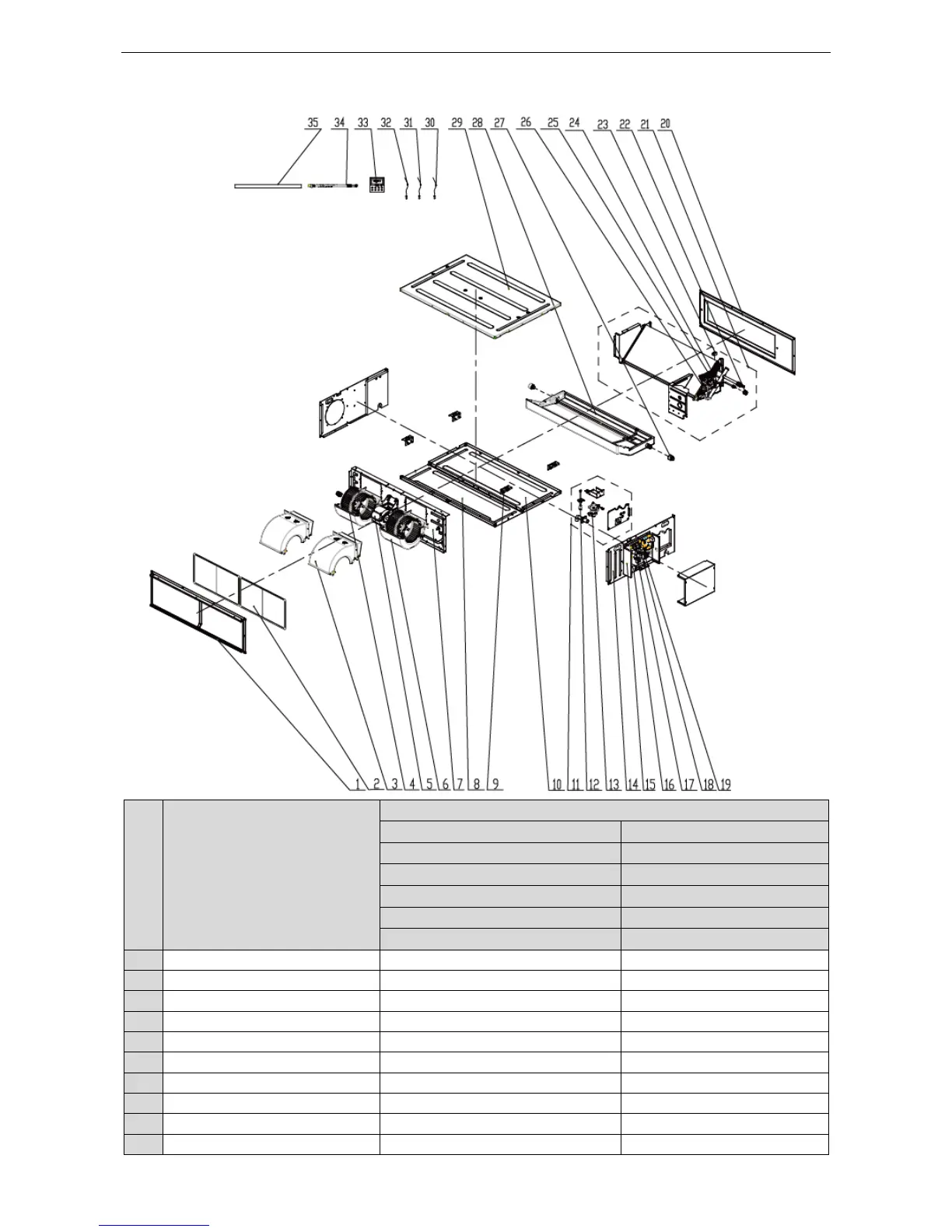

Exploded View of GMV-ND56PHS/B-T、GMV-ND63PHS/B-T、GMV-ND71PHS/B-T、GMV-ND80PHS/B-T：
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND56PHS/B-T
CM810N0380
GMV-ND63PHS/B-T
CM810N0390
GMV-ND71PHS/B-T
CM810N0400
GMV-ND80PHS/B-T
CM810N0410
Part code
Quantity
1
Centrifugal Fan Assy
'017026000002
1
2
Filter Sub-Assy
'111001000045
2
3
Propeller Housing(Upper)
'26905200078
2
4
Centrifugal Fan
'10455200003
2
5
Brushless DC Motor
'15705200016
1
6
Propeller Housing(Lower)
'26905200079
2
7
Blower Mounting Plate Sub-Assy
'01325200079
1
8
Cover Of Air-In
'01265200132
1
9
Hook
'02112466
4
10
Bottom Cover Plate
'01265200131
1
