Gree GMV series

GMV DC Inverter VRF
5

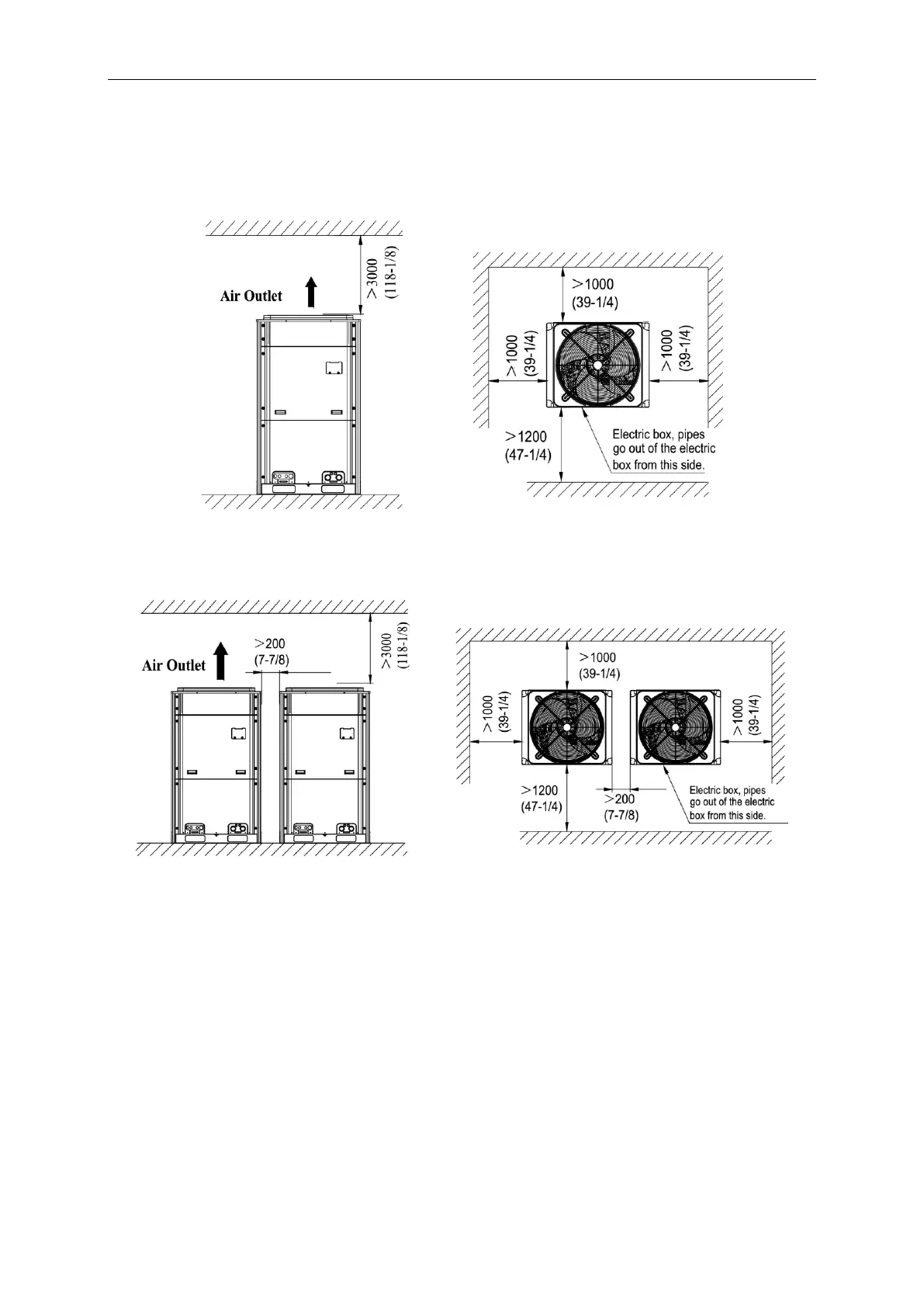

3.2.1 When the outdoor unit is totally surrounded by walls, please refer to following
figures for space dimension.
3.2.1.1 Space dimension for single-module unit
Unit: mm (in.)
Fig.3
3.2.1.2 Space dimension for dual-module unit
Unit: mm (in.)
Fig.4
