77
Maintenance
Service Manual

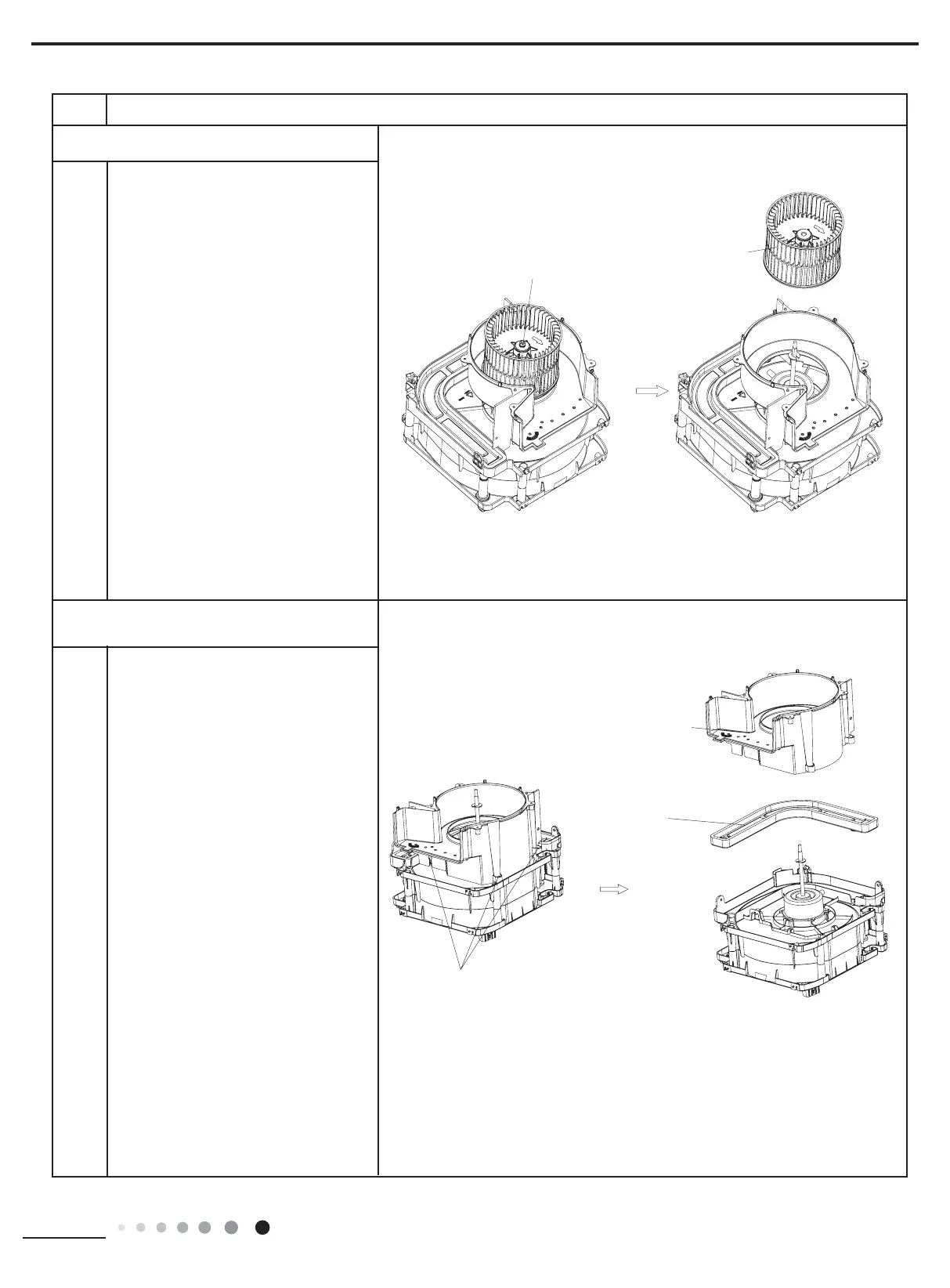

16.Remove centrifugal louver (upper)
Unscrew nuts of centrifugal louver (upper)
and motor to remove centrifugal louver
(upper).
16.Remove volute (lower) and water
tray
Unscrew 3 screws as diagram shown to
remove volute (lower) and water tray.
Step Procedure
centrifugal louver (upper)
nut
screws
volute (lower)
water tray
To Next Page
