19.2 Electric Wiring
19.2.1 Wiring principle
Refer to Section 18.4.
19.2.2 Electric wiring design
The wiring diagram stuck to the unit always prevails.

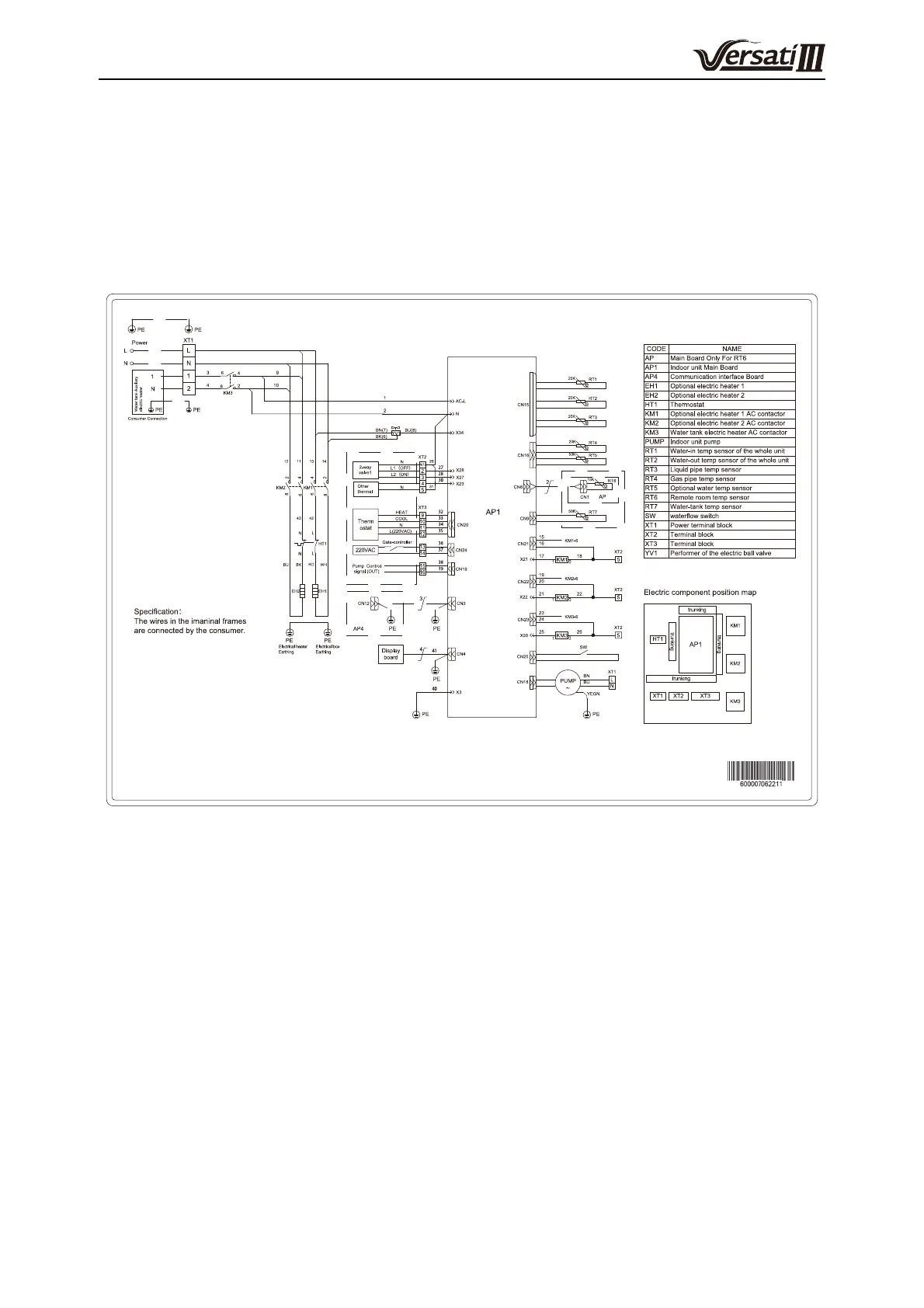

(1) Wiring diagram: indoor unit
GRS-CQ4.0Pd/NhH-E(I), GRS-CQ6.0Pd/NhH-E(I), GRS-CQ8.0Pd/NhH-E(I), GRS-CQ10Pd/NhH-E(I)
