GREE U-Match 5 SERIES UNIT SERVICE MANUAL
147

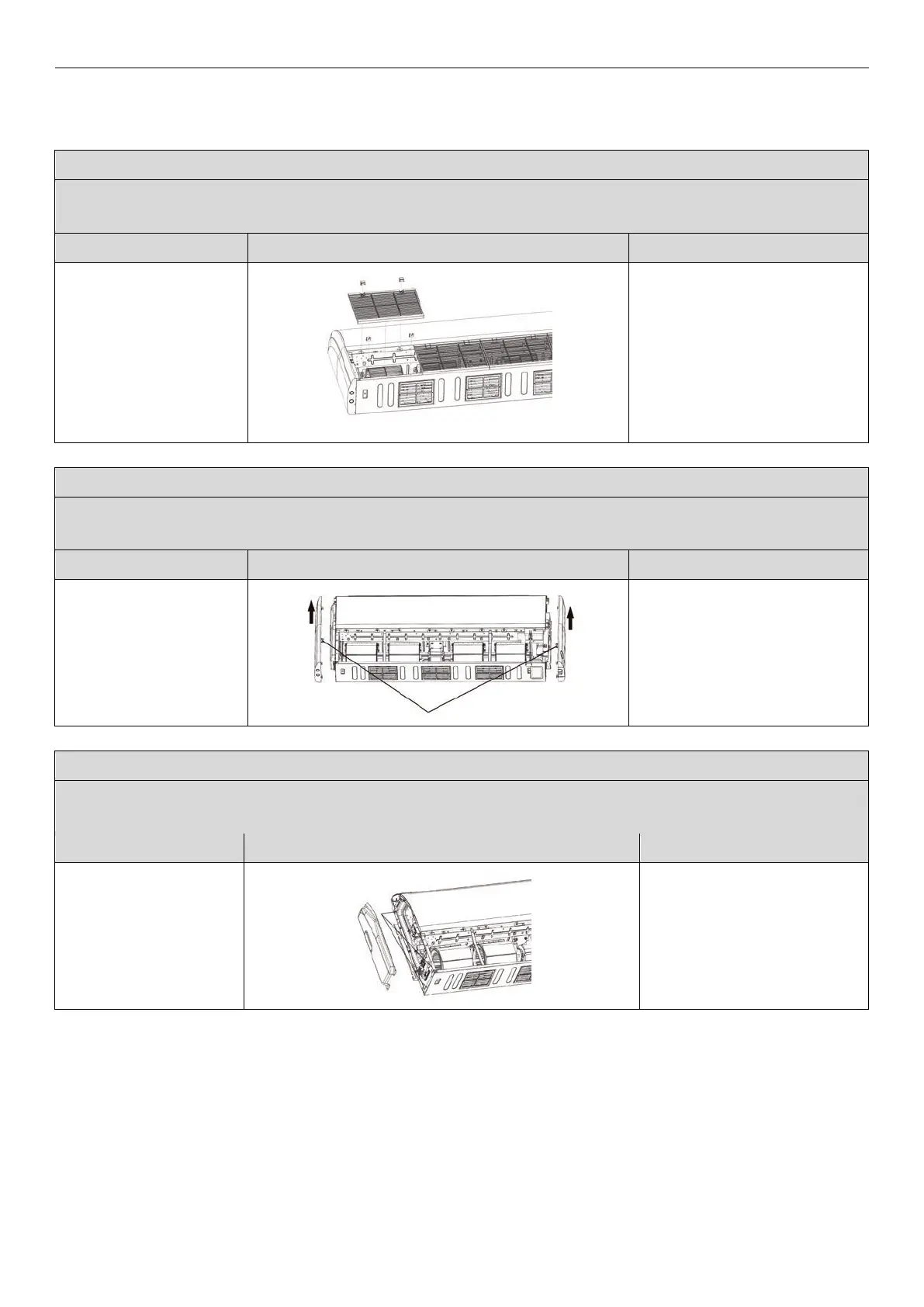

4.5.2.3 Floor Ceiling Unit
Take model GUD160ZD/A-T as an example.
Removal of front grill
Note: Before removal, make sure power is cut off. During the removal procedure, take good care of all the
place the filter near any heat source.
Step Picture Work instruction
Remove the
sub-assembly of front
grill.
Twist off the 2 hooks of the grill
and the screws of the hooks.
Open the grill and remove 2
lower clamps. Then remove
the grill.
Remove the right and left decorative boards
Note: Before removal, make sure power is cut off. During the removal procedure, take good care of all the components. Do not
scratch the appearance components.
Step Picture Work instruction
Remove the left and
right panels.
Use a screwdriver to loosen
the screws, as shown in the
picture. Then pull the right and
left panels upward. (Lines in
the picture indicate the
positions of screws.)
Removal of electric box assembly
Note: Before removal, ma
ke sure power is cut off. During the removal procedure, take good care of all the components, especially
the components in electric box. Protect it from water and collision.
Step Picture Work instruction
Remove the electric
box.
Unscrew 34 screws as
shown in the left picture and
then remove the electric box.
To Next Page
