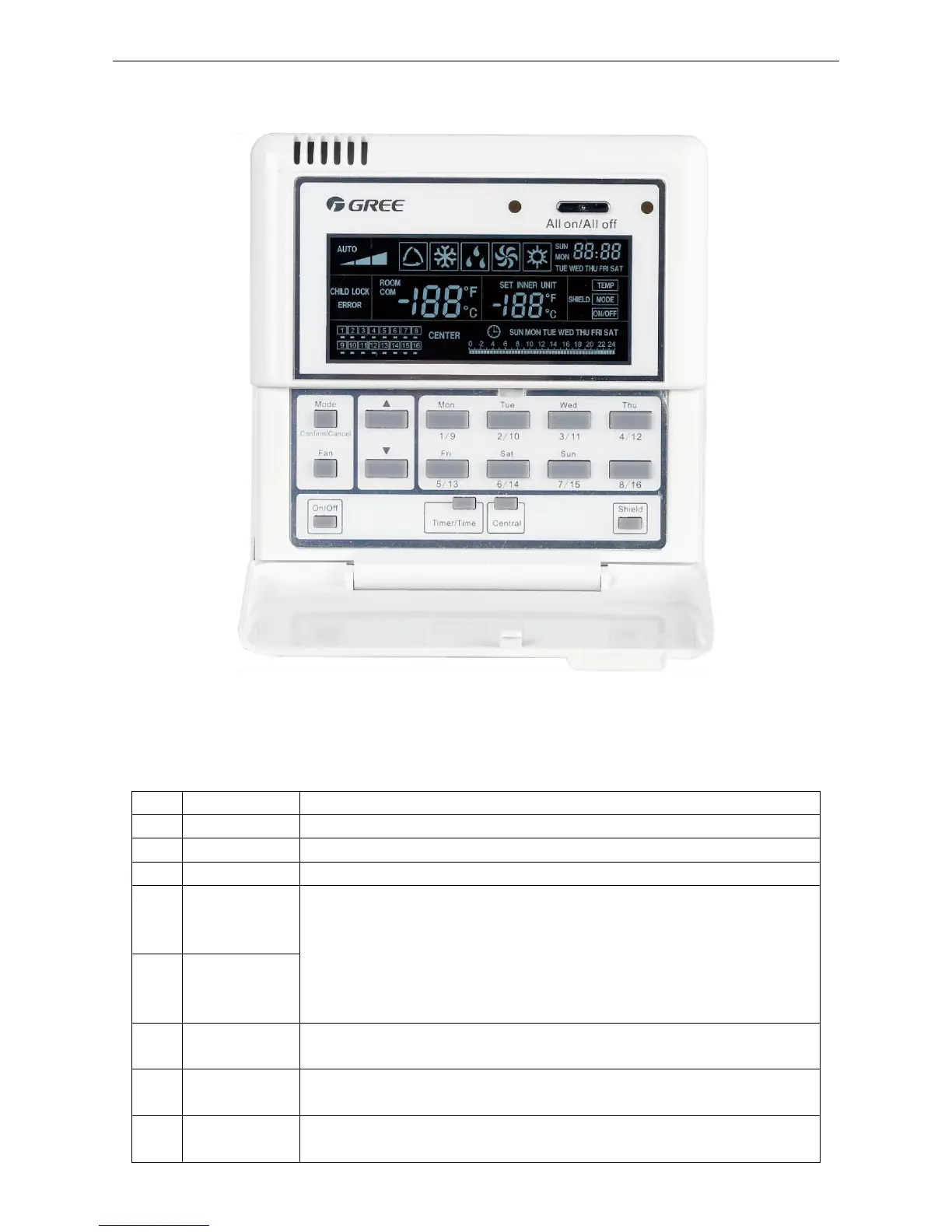

7.1.2 Outline Drawing of Press Buttons
Figure 2-7-1
7.1.3 Functions of Press Buttons
Table 2-7-1 Functions of Press Buttons
No.
Name
Function Description
1
Mode
It is used for the switchover among different modes.
2
Fan
It is used to set the fan speed, high, medium, low or auto.
3
On/Off
It is used to set the on/off status of the indoor unit.
4
▲
①. Under the single/centralized control status: It is used to set the running
temperature of the indoor unit with max.30°C (86℉) anmin.16°C (61℉);
②. Under the timing setting status: It is used to set the timing period with max.24
hours and min.0 hour;
③. Under the clock setting status: it is used to set the hour (max.:23, min.: 0) and
minute (max.:59, min.: 0) of the clock.
5
▼
6
Mon
1/9
It is used for the switchover between unit 1 and unit 9;
Under the timing or clock setting status, it indicates Monday.
7
Tue
2/10
It is used for the switchover between unit 2 and unit 10;
Under the timing or clock setting status, it indicates Tuesday.
8
Wed
3/11
It is used for the switchover between unit 3 and unit 11;
Under the timing or clock setting status, it indicates Wednesday.
