It is used for the switchover between unit 4and unit 12;
Under the timing or clock setting status, it indicates Thursday.
10
Fri
5/13
It is used for the switchover between unit 5and unit 13;
Under the timing or clock setting status, it indicates Friday.
11
Sat
6/14
It is used for the switchover between unit 6 and unit 14;
Under the timing or clock setting status, it indicates Saturday.
12
Sun
7/15
It is used for the switchover between unit 7 and unit 15;
Under the timing or clock setting status, it indicates Sunday.
13
8/16
It is used for the switchover between unit 8 and unit 16.
14
Timer/Time
It is used to set the timing or on/off time of the selected indoor unit as well as to set
the clock of the system.
15
Central
It is used for the switchover between single and centralized control modes.
16
Shield
It is used to deactivate some or all functions of a single or a group the indoor unit(s).
17
All on/off
It is used to start/stop all indoor units.
7.1.4 LCD of the Controller

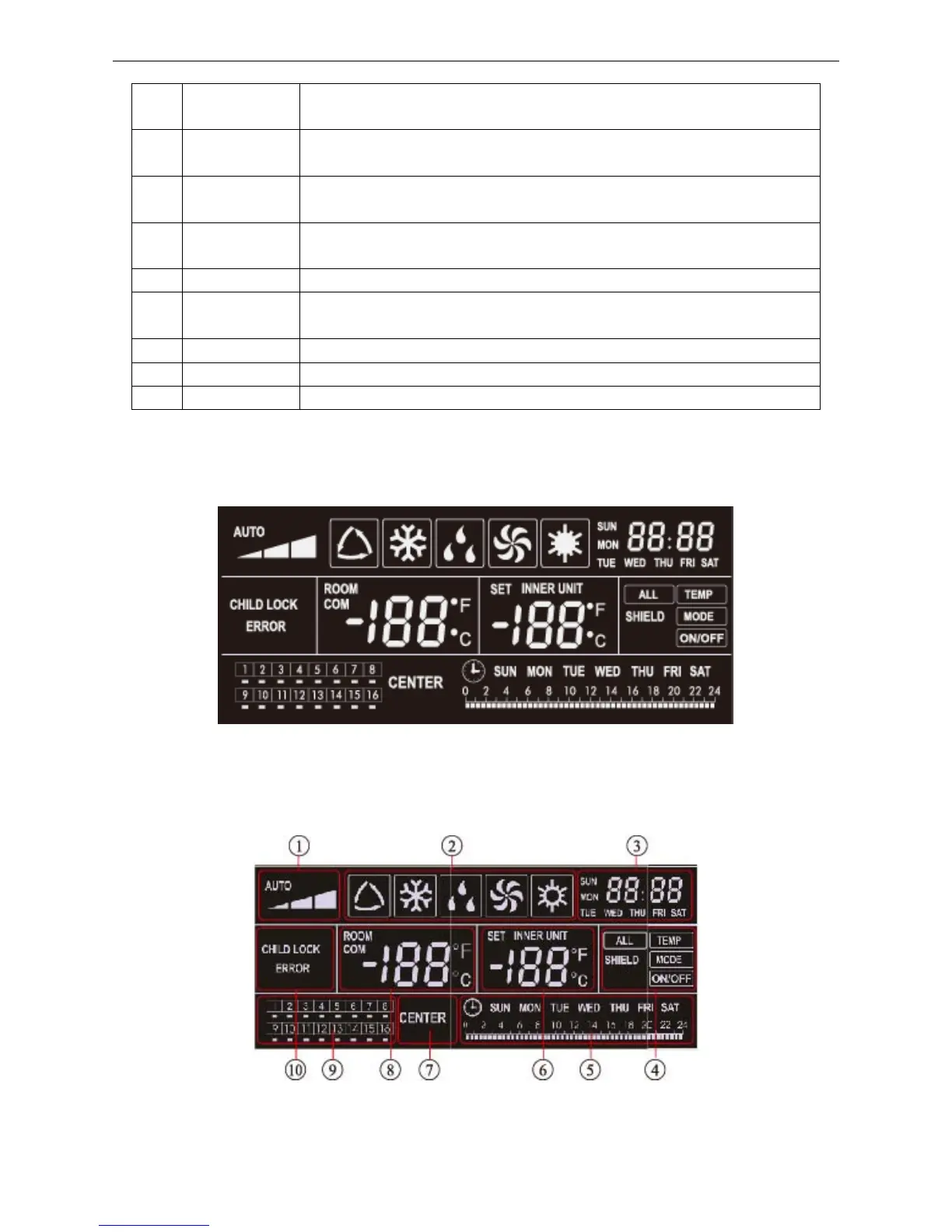

7.1.4.1 Outline Drawing of the LCD
Figure 2-7-2
7.1.4.2 Introduction to Symbols on the LCD
Figure 2-7-3
