Gree GVH24AK-K3DNC8A

Service Manual
11
Technical Information

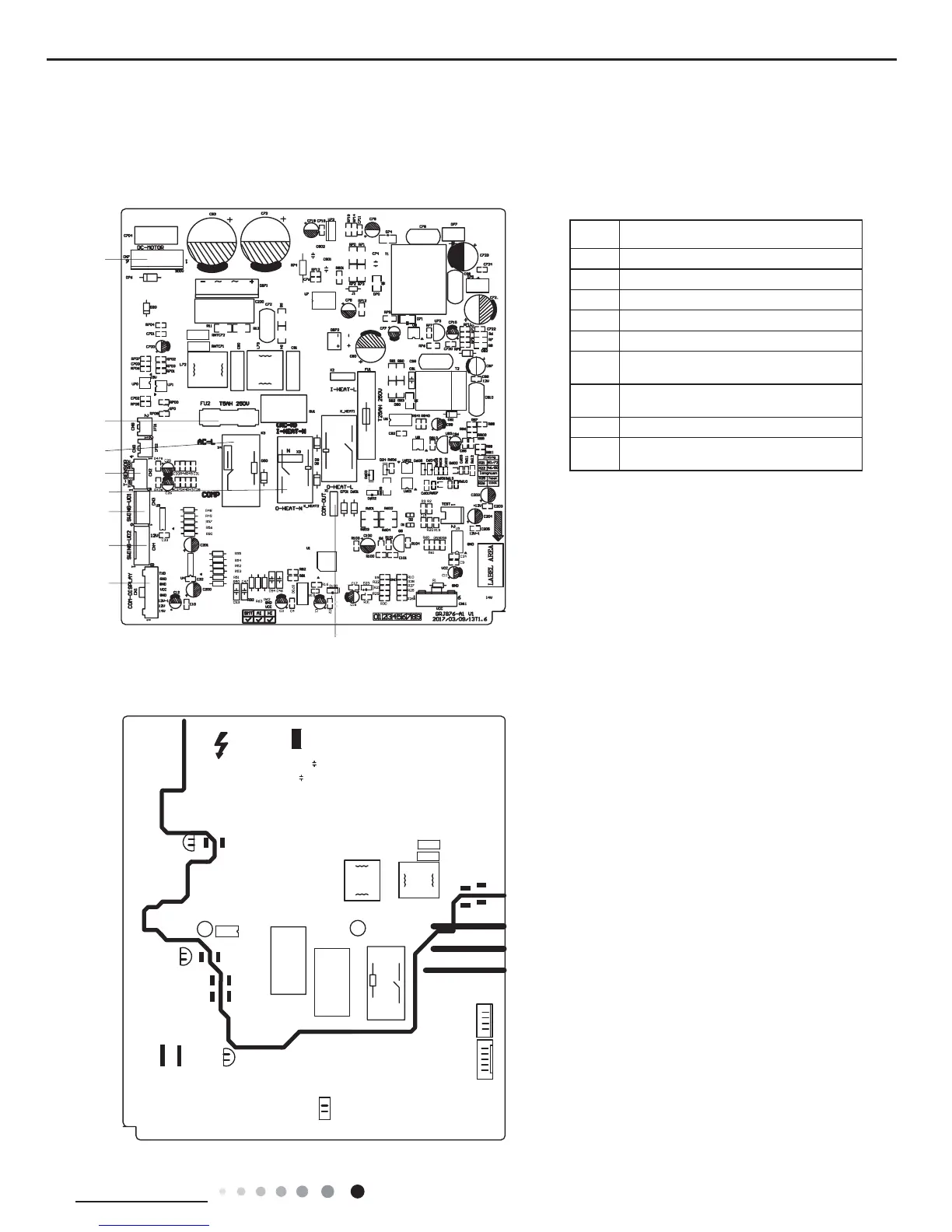

5.2 PCB Printed Diagram
● Top view
Indoor unit
● Bottom view
NO. Name
1 Wiring terminal for DC motor
2 Fuse
3 Live wire
4 Neutral wire
5 temperature sensor interface
6
Interface of up and down
swing terminal (up)
7
Interface of up and down
swing terminal (down)
8 Interface of display
9
Interface of outdoor unit
communication
1
2
3
5
4
6
7
8
9
