27
Technical Information
Service Manual
09K
No. Name No. Name
1 Interface of fan 10
Needle stand for temperature
sensor
2 Interface of neutral wire 11
Interface of gate-control (only for
the model with thisfunction)
3 Fuse 12
Wired controller (only for the
mode with this function)
4
Interface of health function(only
for the mode with this function)
13 Jump
5 Up&down 2 swing interface 14 Communication interface
6 Up&down 1 swing interface 15
Terminal of live wire used for
supplying power for outdoor unit
7
Left&right swing interface(only
for the mode with this function)
16 Live wire terminal
8 Interface of PG feedback 17 Interface of ultraviolet clean
9 Display board
1234578
9
10
11
12
1314
16
17
15
6

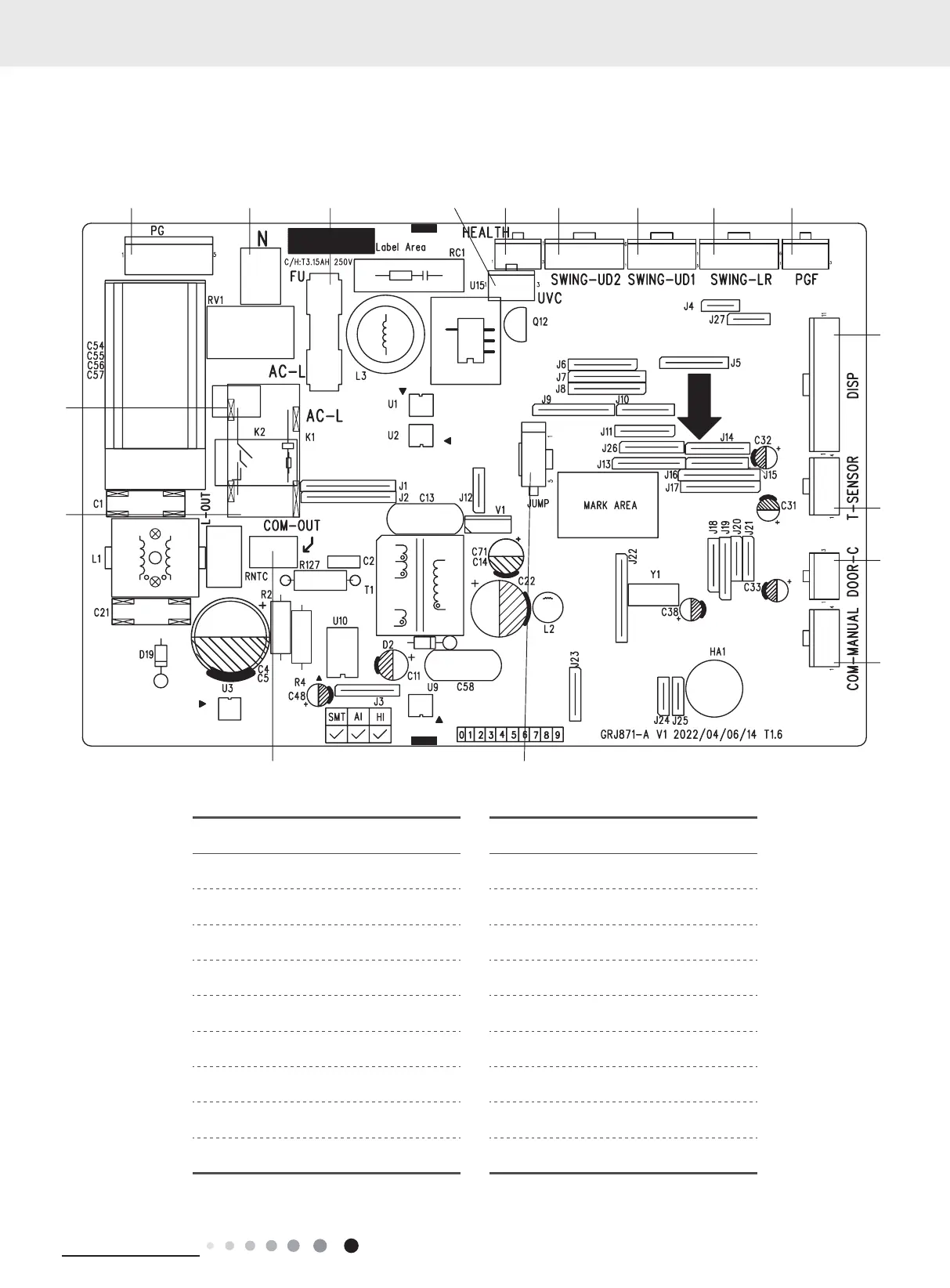

5.2 PCB Printed Diagram
Indoor Unit
