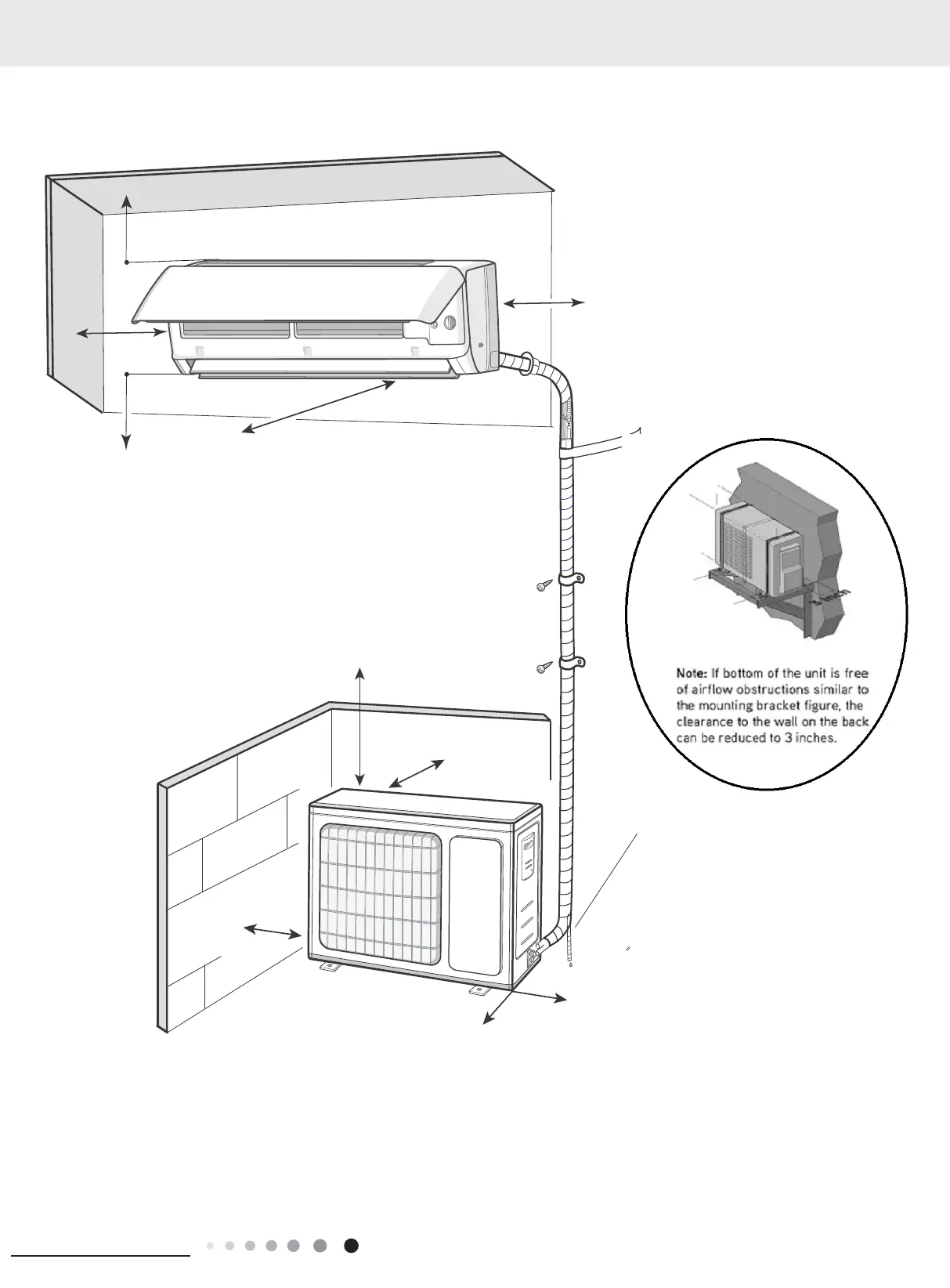

8.1 Installation Dimension Diagram
8. Installation
Drainage pipe
Space to obstruction
Min 12 in
Space to obstruction
Min 6 in
Space to the ceiling
Min 3 in
Space to the wall
Min 2 in
Space to obstruction
Min 48 in
Space to the floor
Min 48
in
Min 2 in
Space to the wall
Space to obstruction
Min 6 in
Space to obstruction
Min 24 in
Space to obstruction
Min 6 in
Wall Mounting Clearances
