92
Installation and Maintenance
Service Manual
Steps
Procedure

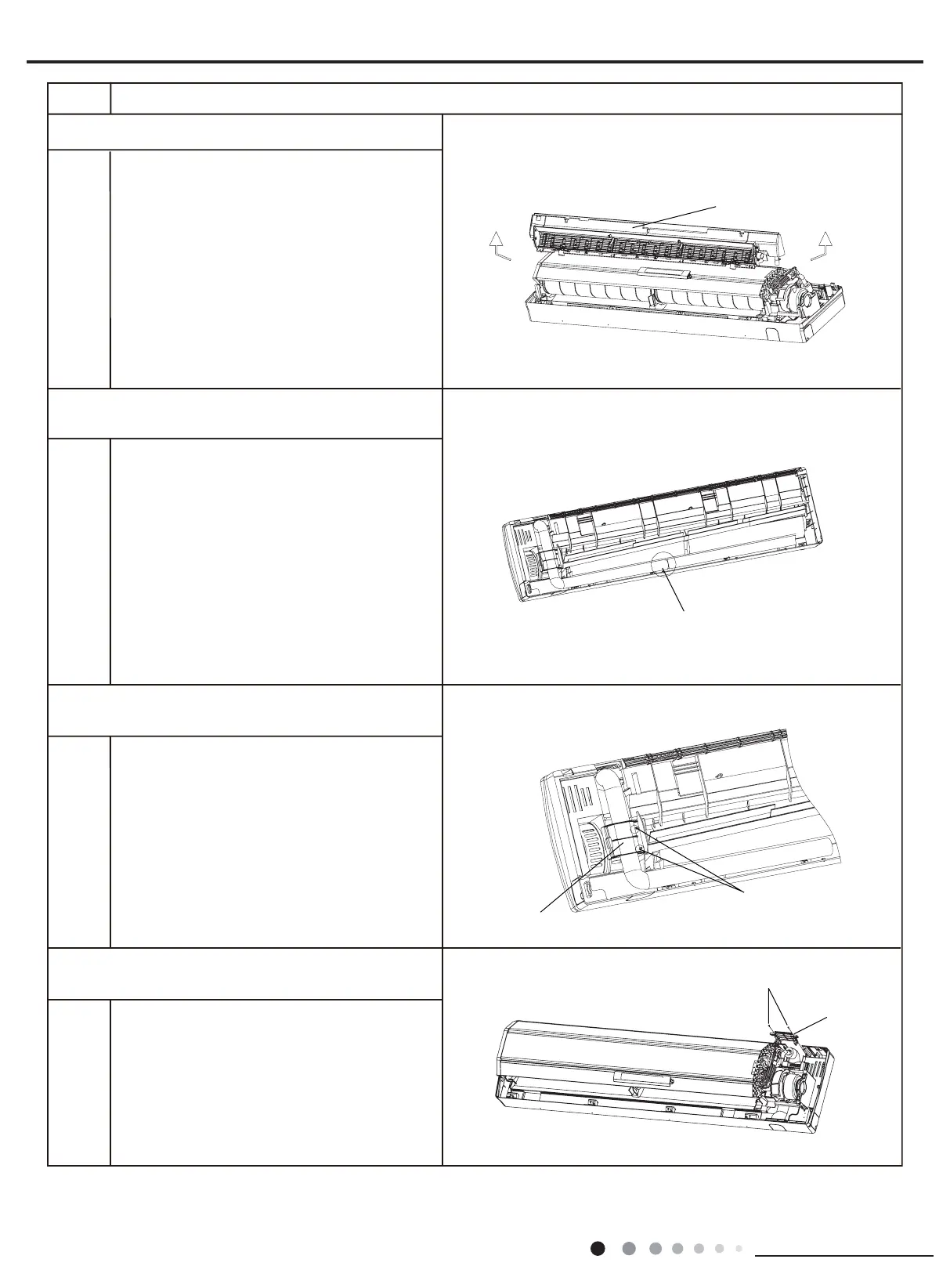

12.Remove water tray
13.Remove connection pipe between indoor and
outdoor units
14.Remove pipe-stopping plate
15.Remove damping board
water tray
connection position for indoor and outdoor units' connection pipe
pipe-stopping plate
screw
screw
damping board
Pull the water tray upwards, and then remove
the water tray.
Separate the connection pipe between
indoor and outdoor units.
Remove two screws on pipe-stopping plate for
indoor unit, and then remove the pipe-stopping
plate.
Remove 2 screws on damping board, and then
remove the damping board.
To Next Page
