67
Installation and Maintenance
Service Manual
Step Procedure

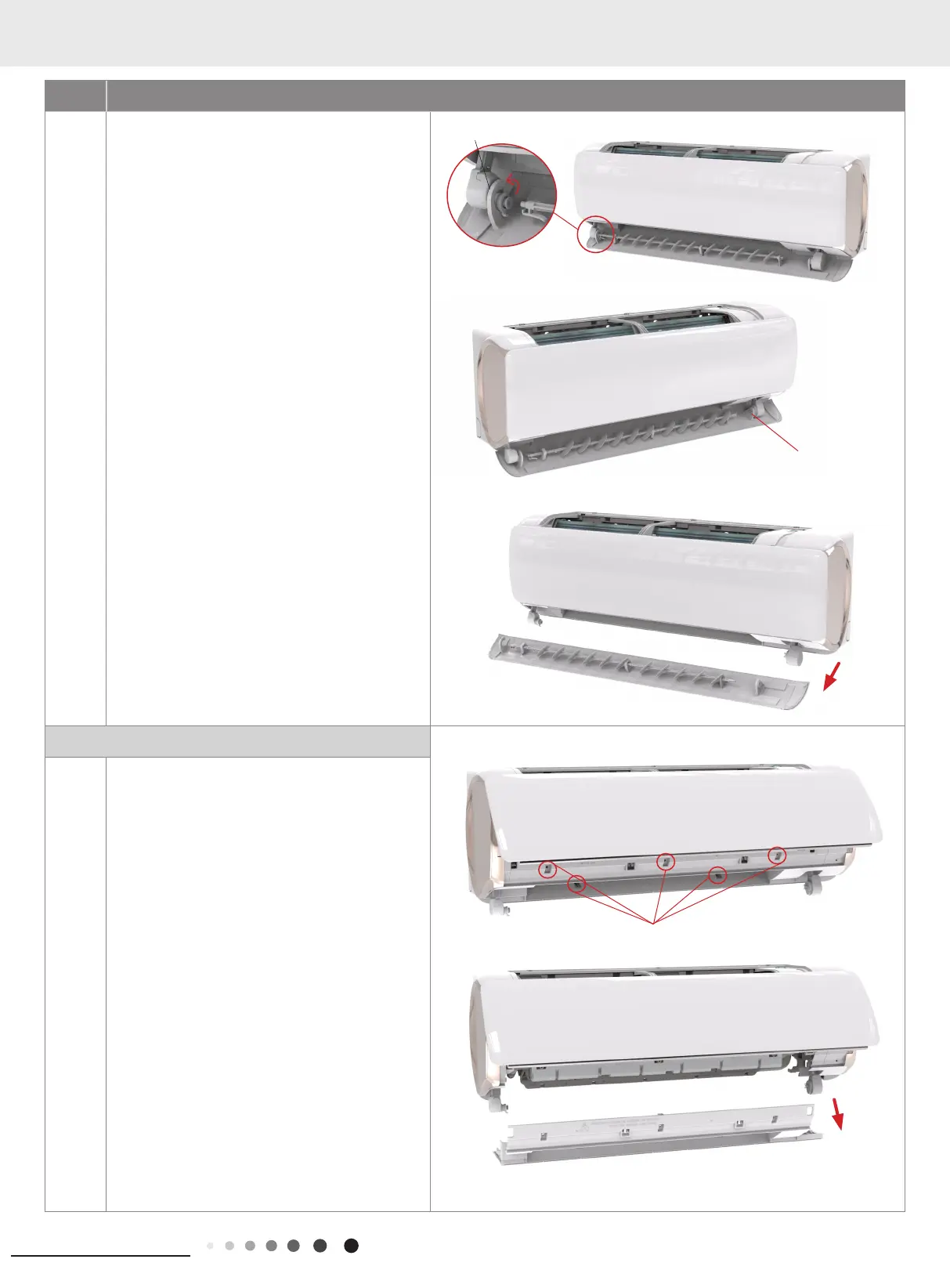

Pull the hook at the left side of air guide louver
upwards and then the left side of air guide louver
can be removed.
Hold the air guide louver, press the cross clasp at
the right side of air guide louver, hold it to the left
side and then remove the air guide louver.
3.. Remove
a
ir outlet frame
Open the panel, remove 5 screws used for fixing
the air outlet frame, hold the middle part of the air
outlet frame and pull it downwards to remove the
air outlet frame.
Hook
Hook of connection rod
Cross clasp
screws
