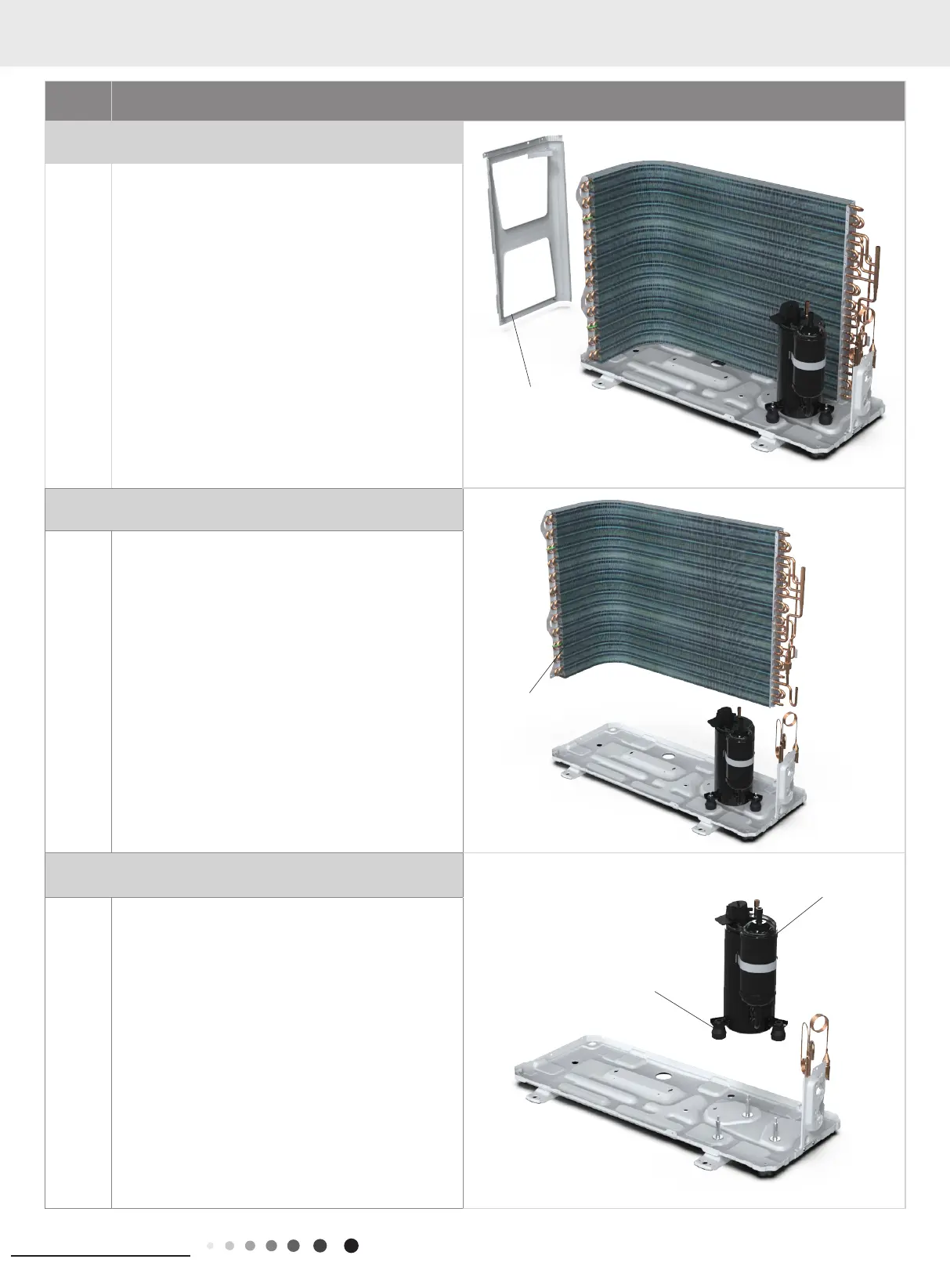

13. Remove left side plate
Remove the screws xing the left side plate and then
remove the left side plate.
14. Remove condenser sub-assy
Remove the screws xing the Remove condenser sub-
assy and then remove the Remove condenser sub-
assy.
15. Remove compressor
Remove the 3 foot nuts on the compressor and then
remove the compressor.
condenser sub-assy
left side plate
foot nuts
compressor
