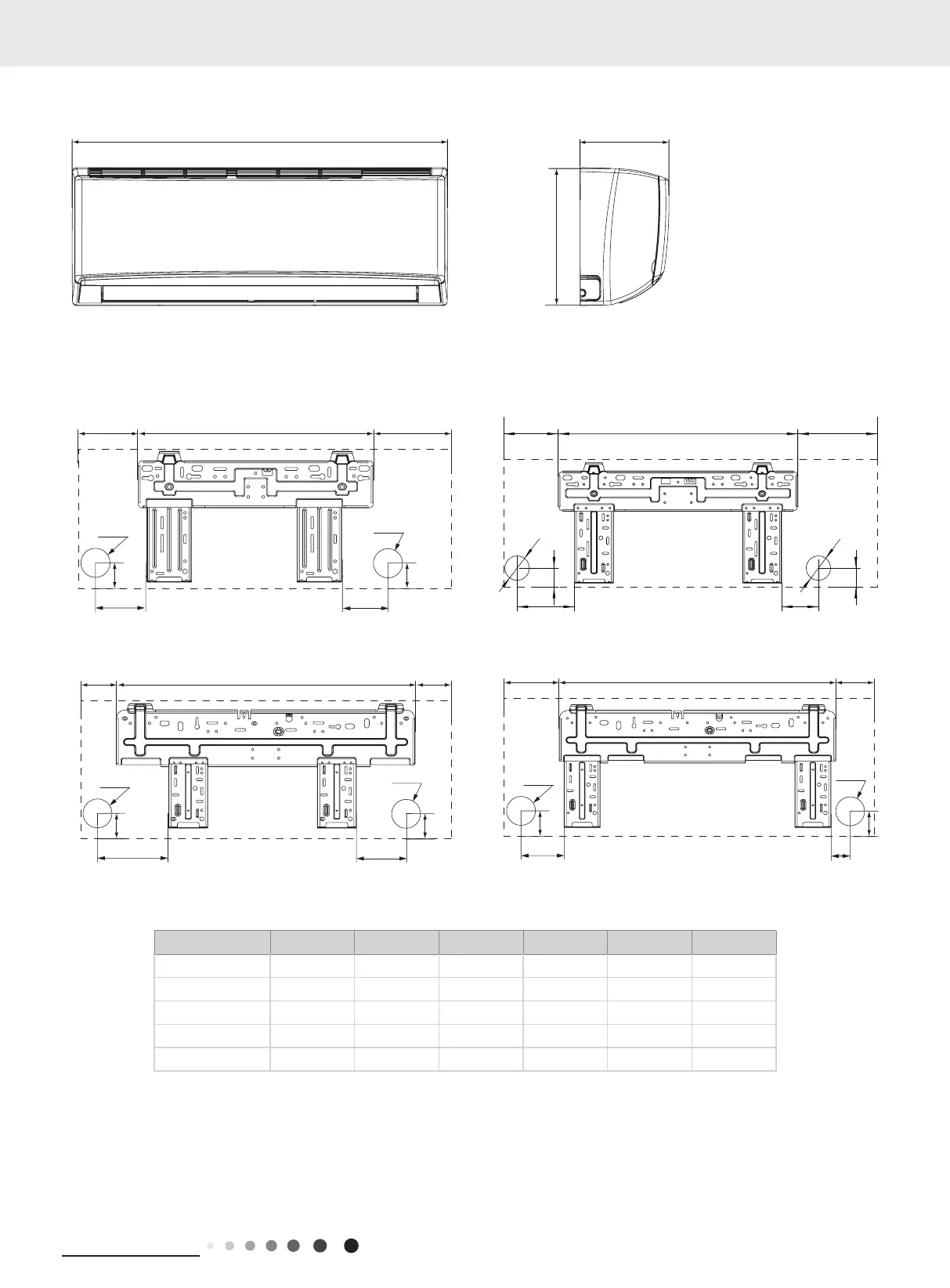

3. Outline Dimension Diagram
3.1 Indoor Unit
Model W H D W1 W2 W3
QA
713 270 195 148 462 103
QB
790 275 200 168.5 462 159.5
QC
845 289 209 123 542 180
QD
970 300 224 104 685 181
QE
1078 325 246 206 685 187
* Recommended distance
Unit:mm
W
QC
QA/QB
D
H
90
150
54
W1 W2 W3 W1 W2 W3
W1 W2 W3W1 W2 W3
Φ55
Φ55
54
QD
140
190
38
Φ55
Φ55
38
QE
79
154
43
Φ70
Φ70
43
130 83
Ø55
Ø55
43 43
