GWH18QD-K6DNA1D/O GWH24QE-K6DNA1E/O
Step Procedure
1. Remove top panel
a
Twist off the screws used for fixing the handle and
valve cover, pull the handle and valve cover up ward to
remove it.
b
Remove the 3 screws connecting the top panel with the
front panel and the right side plate, and then remove
the top panel.
2. Remove grille and panel
a
Remove the 2 screws connecting the grille and the
panel, and then remove the grille.

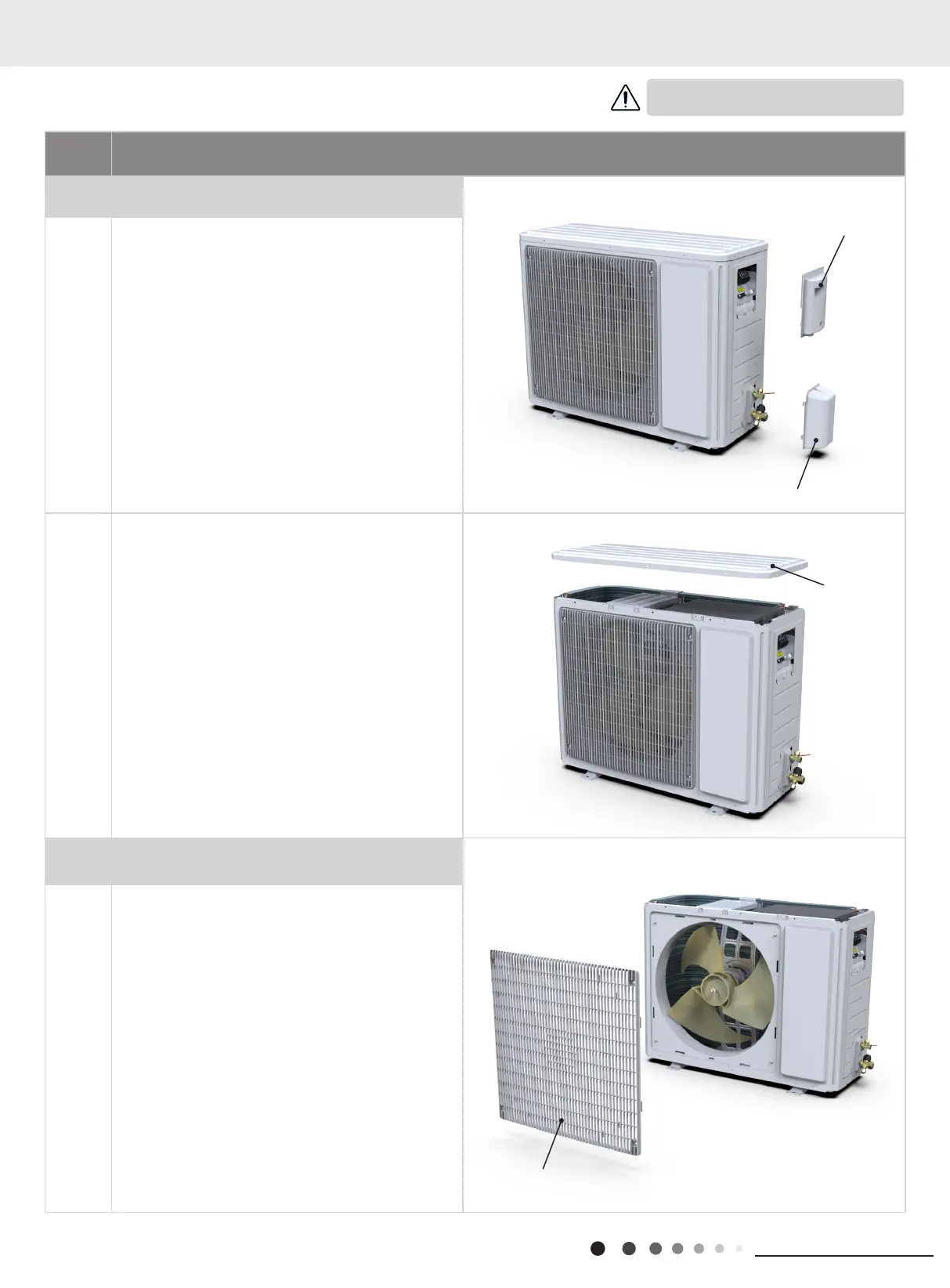

Handle
Top cover
grille
Valve cover
Caution: discharge the refrigerant
completely before removal.
To Next Page
