144
Installation and Maintenance
Service Manual
Step Procedure

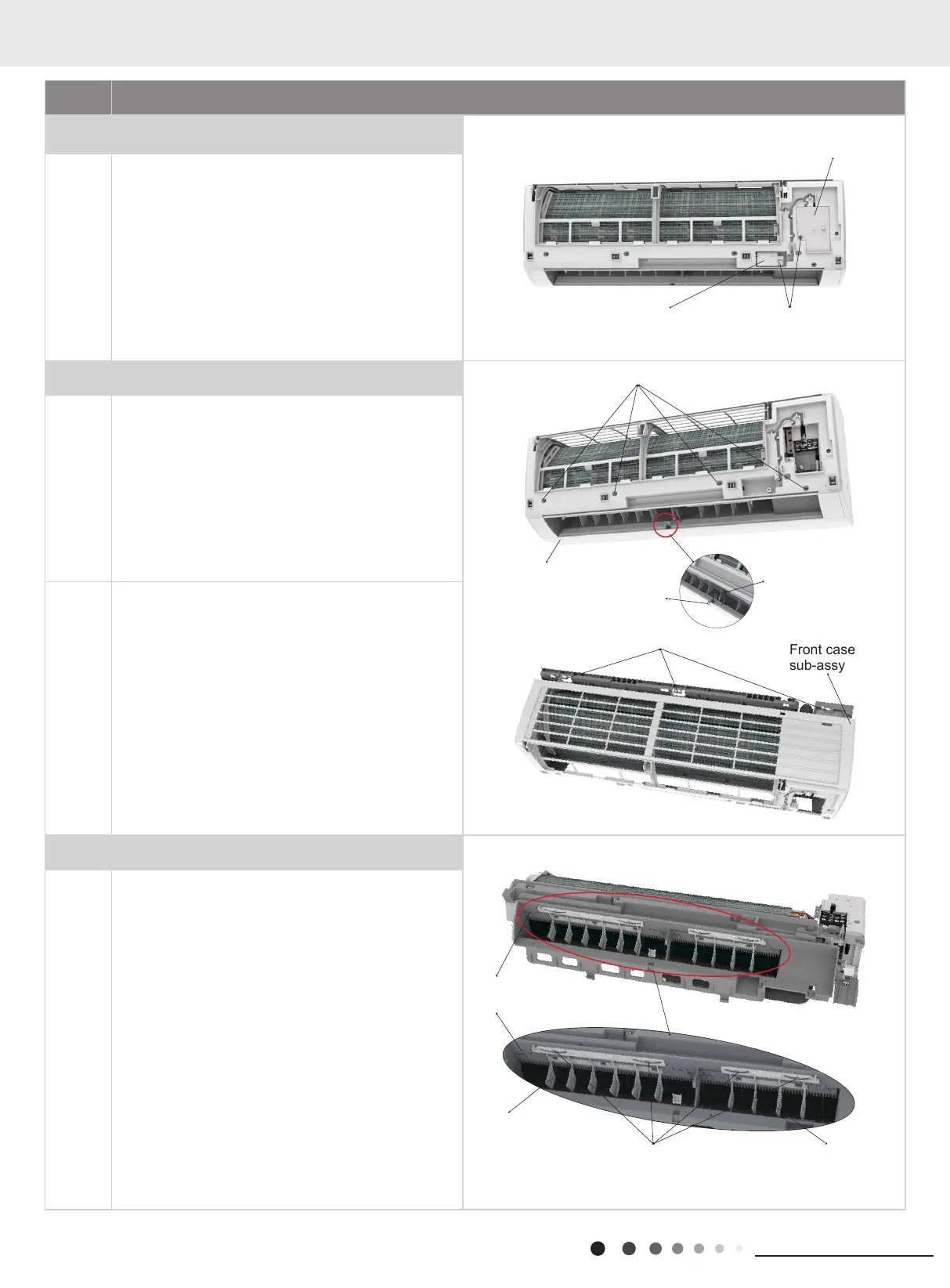

4. Remove detecting plate(wi) and electric
box cover2
Remove the screws xing detecting plate and remove
detecting plate(wi).
Remove the screws fixing electric box cover 2 and
remove electric box cover 2.
5. Remove front case sub-assy
a
Remove the screws xing front case.
Note:
1.Open the screw caps before removing the screws
around the air outlet.
2.The quantity of screws xing the front case sub-assy
is different for different models.
b
Loosen the connection clasps between front case sub-
assy and bottom case. Lift up the front case sub-assy
and take it out.
6. Remove vertical louver
Loosen the connection clasps between vertical louver
and bottom case to remove vertical louver.
Detecting plate(WIFI)
Screw
Screw
Front case
sub-assy
Front case
sub-assy
Screw
Clasp
Bottom
case
Vertical
louver
Clasp
Vertical
louver
Screw caps
Electric box cover 2
To Next Page
