Technical Information
Service Manual
NOTE:

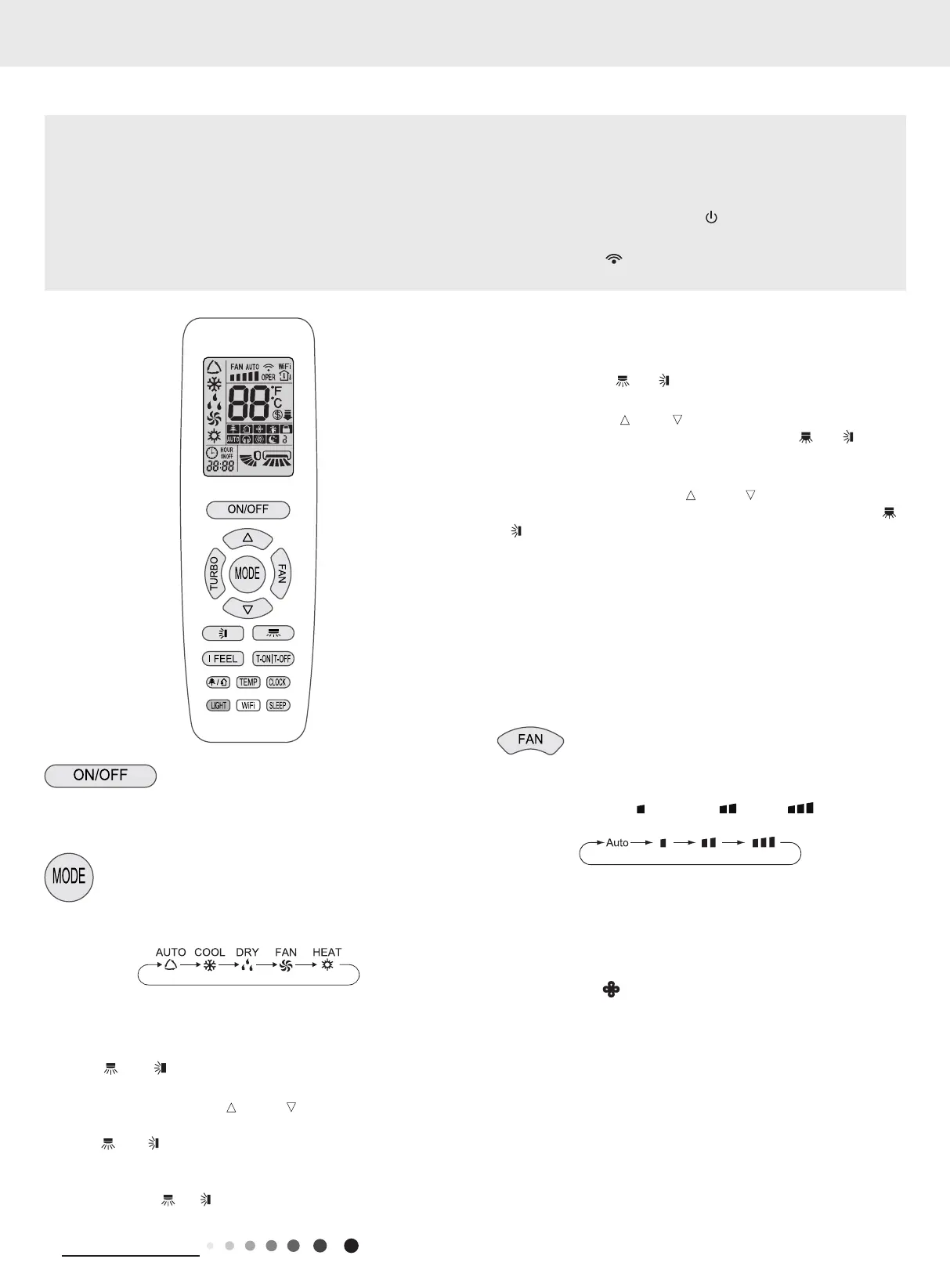

● This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which
the model doesn't have, if press the corresponding button on the remote controller that the unit will keep the original running
status.
● After putting through the power, the air conditioner will give out a sound. Power indicator " " is ON (red indicator, the
colour is different for different models). After that, you can operate the air conditioner by using remote controller.
● Under on status, pressing the button on the remote controller, the signal icon " " on the display of remote controller will
blink once and the air condition-er will give out a “ di ” sound, which means the signal has been sent to the air conditioner.
button
Press this button to turn on the unit. Press this button again to
turn off the unit.
button
Press this button to select your required operation mode :
● When selecting auto mode, air conditioner will operate
automatically according to the sensed temperature. Set
temperature can't be adjusted and will not be displayed
as well. Press "FAN" button can adjust fan speed.
Press " "/" " button can adjust fan blowing angle.
● After selecting cool mode, air conditioner will operate
under cool mode. Press " " or " " button to adjust set
temperature. Press "FAN" button to adjust fan speed.
Press" "/" " button to adjust fan blowing angle.
● When selecting dry mode, the air conditioner operates at low
speed under dry mode. Under dry mode, fan speed can't be
adjusted. Press " "/" " button to adjust fan blowing angle.
● When selecting fan mode, the air conditioner will only blow
fan, no cooling and no heating. Press "FAN" button to adjust
fan speed. Press" "/" " button to adjust fan blowing angle.
When selecting heat mode, the air conditioner operates under
heat mode. Press " " or " " button to adjust set temperature.
Press "FAN" button to adjust fan speed. Press " " / " " button
to adjust fan blowing angle.
● When selecting heating mode, the air conditioner operates
under heat mode. Press " " or " "button to adjust set
temperature. Press "FAN" button to adjust fan speed. Press " "
/ " "button to adjust fan blowing angle. (Cooling only unit won't
receive heating mode signal. If setting heat mode with remote
controller, press ON/OFF button can’t start up the unit).
NOTE:
● For preventing cold air, after starting up heat mode,indoor unit
will delay 1~5 minutes to blow air (Actual delay time depends on
indoor ambient temperature).
● Set temperature range from remote controller: 16~30
o
C(61-
86
o
F).Fan speed: auto, low speed, medium speed, high speed.
● This mode indicator is not available for some models.
button
Pressing this button can set fan speed circularly
as: auto (AUTO), low( ), medium( ), high( ).
Note:
● Under AUTO speed, air conditioner will select proper fan speed
automatically according to factory default setting.
● It's low fan speed under dry mode.
● X-FAN function Hold fan speed button for 2s in cool or dry
mode, the icon " " is displayed and the indoor fan will continue
operation for a few minutes in order to dry the indoor unit even
though you have turned off the unit. After energization, X-FAN
OFF is defaulted. X-FAN is not available in AUTO, FAN or HEAT
mode. This function indicates that moisture on evaporator of
indoor unit will be blowed after the unit is stopped to avoid mould.
● Having set X-FAN function on: After turning off the unit by
pressing ON/OFF button indoor fan will continue running for a
few minutes. at low speed. In this period, Hold fan speed button
for 2s to stop indoor fan directly.
● Having set X-FAN function off: After turning off the unit by
pressing ON/OFF button, the complete unit will be off directly.
YAP1F2(WiFi)
