6.2 Remote Controller Introduction of YAC1FB1

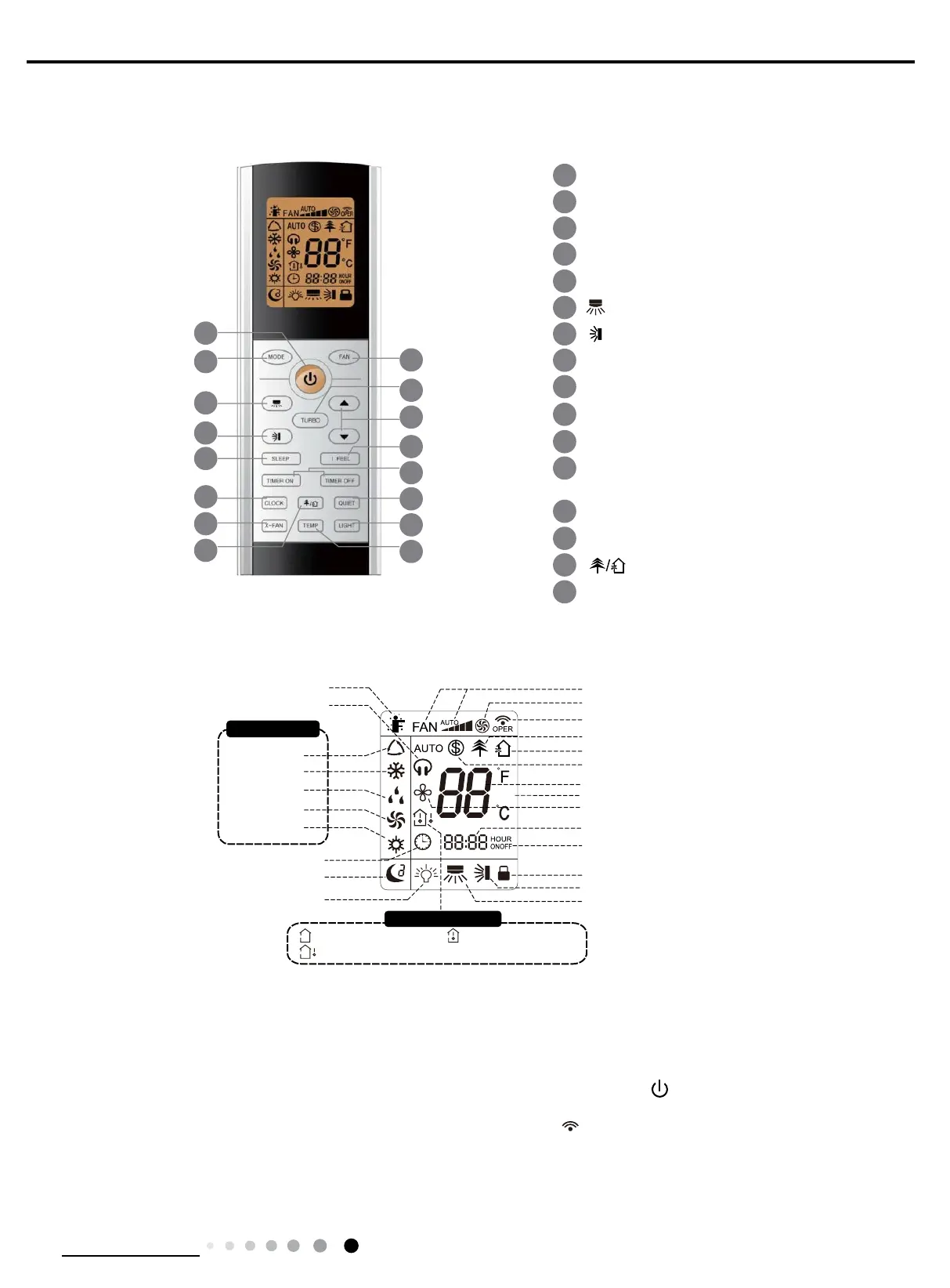

Introduction for icons on display screen
Introduction for buttons on remote controller
Note:
● After putting through the power, the air conditioner will give out a sound. Operation indictor "
" is ON (red indicator). After that,
you can operate the air conditioner by using remote controller.
●
Under on status, pressing the button on the remote controller, the signal icon " " on the display of remote controller will blink once
and the air conditioner will give out a “de” sound, which means the signal has been sent to the air conditioner.
WIFI
6
3
7
9
11
13
15
12
14
16
10
8
5
4
2
1
1 ON/OFF button
2 MODE button
3 FAN button
4 TURBO button
6 button
7 button
9 I FEEL button
14 LIGHT button
15 button
16 TEMP button
11 CLOCK button
12 QUIET button(This function is unavailable for this
model)
13 X-FAN button
10 TIMER ON / TIMER OFF button
8 SLEEP button
5 ▲/ button
▲
WIFI
Send signal
Turbo mode
8
℃
heating function
Set temperature
Set time
X-FAN function
TIMER ON /TIMER OFF
Child lock
Up & down swing
Left & right swing
Set fan speed
Light
Temp. display type
:Set temp.
:Outdoor ambient temp.
:Indoor ambient temp.
Sleep mode
Clock
Heat mode
Fan mode
Dry mode
Cool mode
Auto mode
Operation mode
I feel
Healthy mode
Scavenging functions
Quiet
WIFI(This unit without WiFi fuction)
