Gree GWH12AFC-K6DNA2F/O

53
Technical Information
Service Manual
1
2
3
45 67
89
10
11
12
13
14
15
1617

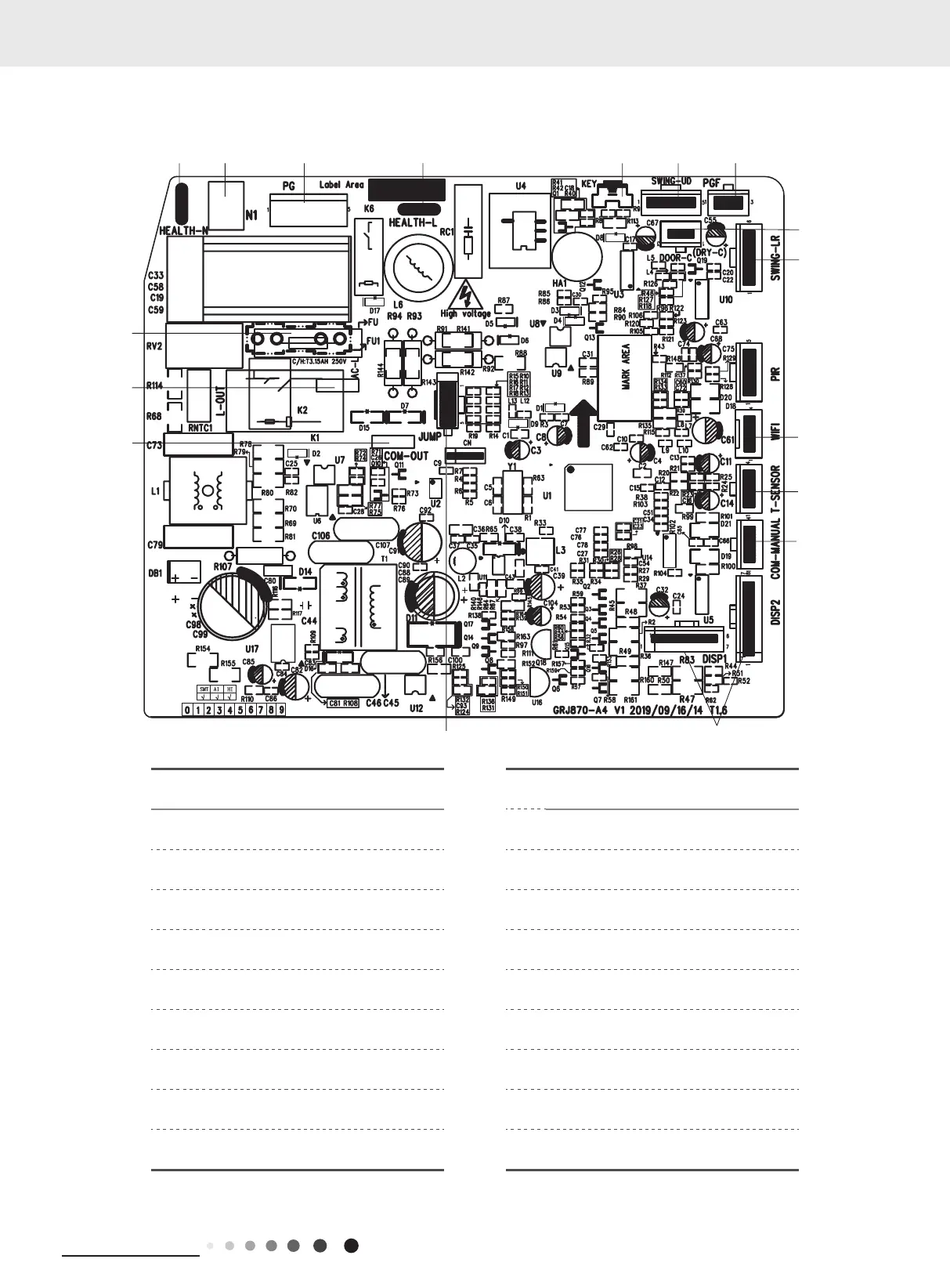

No. Name No. Name
1
Interface of communication wire for
indoor unit and outdoor unit
10 Interface of PG feedback
2 Interface of live wire 11 Left&right swing interface
3 Fuse 12
Interface of dry contact(only for the
model with this function)
4
Interface of health function neutral
wire(Applicable for some models)
13 Interface of wi
5 Interface of neutral wire 14
Needle stand for tube temperature
sensor
6 Interface of fan 15 Relay used for controlling wire
7 Interface of health function live wire 16 Display board
8 Auto button 17 Jumper cap
9 Up&down swing interface
GWH18QD-K6DNC4D/I GWH24QE-K6DNC4E/I
