Right side plate
Electric box
assy

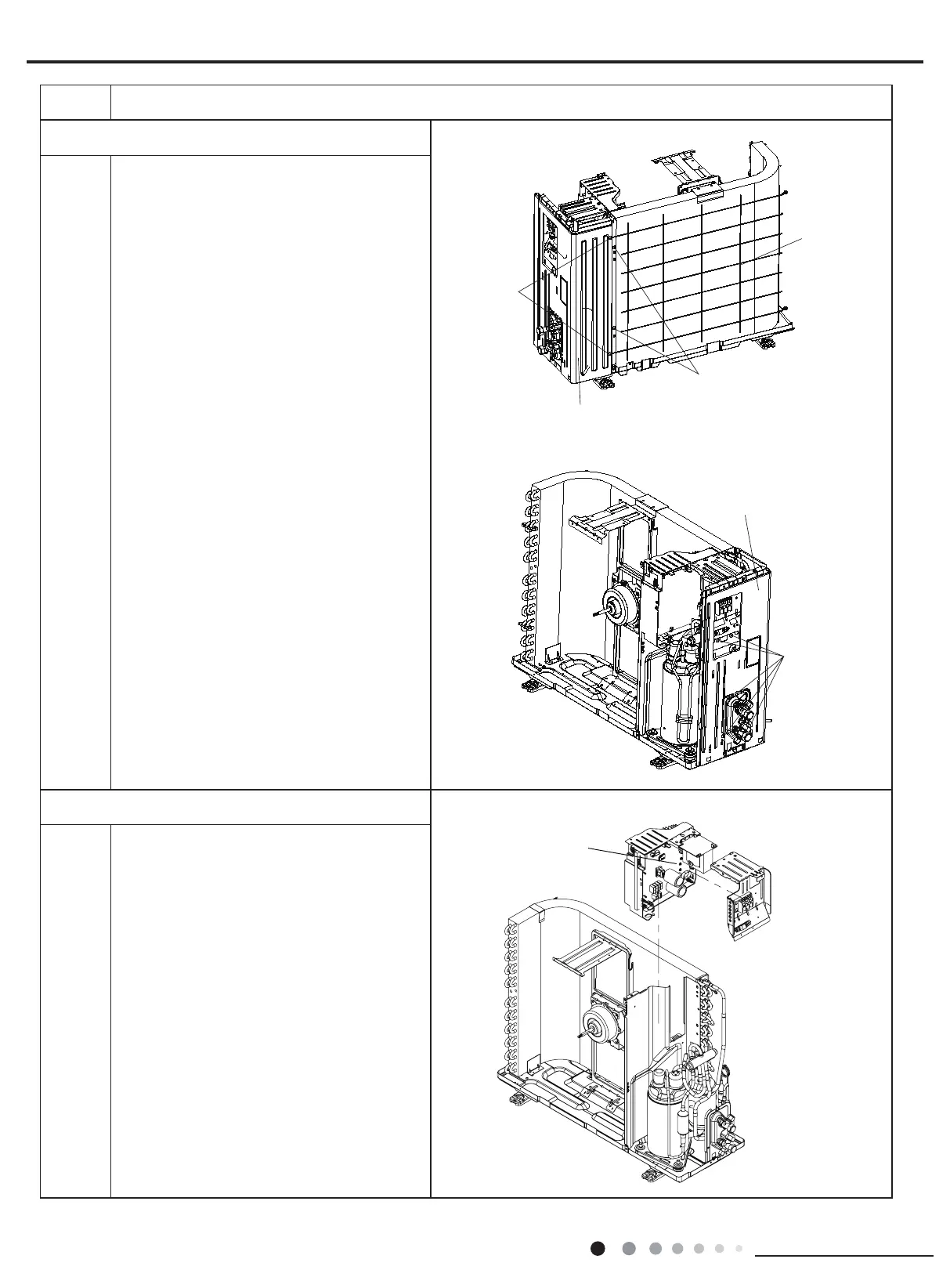

Remove the screws 2 fixing right side
plate and then remove the right side plate.
Screws 2
Right side plate
Protective
grille
Screws 1
Screws 2
Remove the screws 1 fixing protective
grille and then remove the protective
grille.
Remove the screws xing electric box
assy ; pull out each wiring terminal; lift the
electric box assy upwards to remove it.
Note:
When pulling out the wiring terminal, pay
attention to loose the clasp and dont pull
it so hard.
