Remove the tapping screws xing the
motor and disconnect the leading wire
insert of the motor. Then remove the
motor.
Remove the tapping screws xing the
motor support and lift the motor support to
remove it.
Remove screws xing the electric box
subassembly; loosen the wire bundle and
unplug the wiring terminals. Then lift the
electric box to remove it.
Remove the screws xing the isolation
sheet and then remove the isolation
sheet.
motor support
motor
Electric Box Assy
Procedure
Steps
isolation sheet

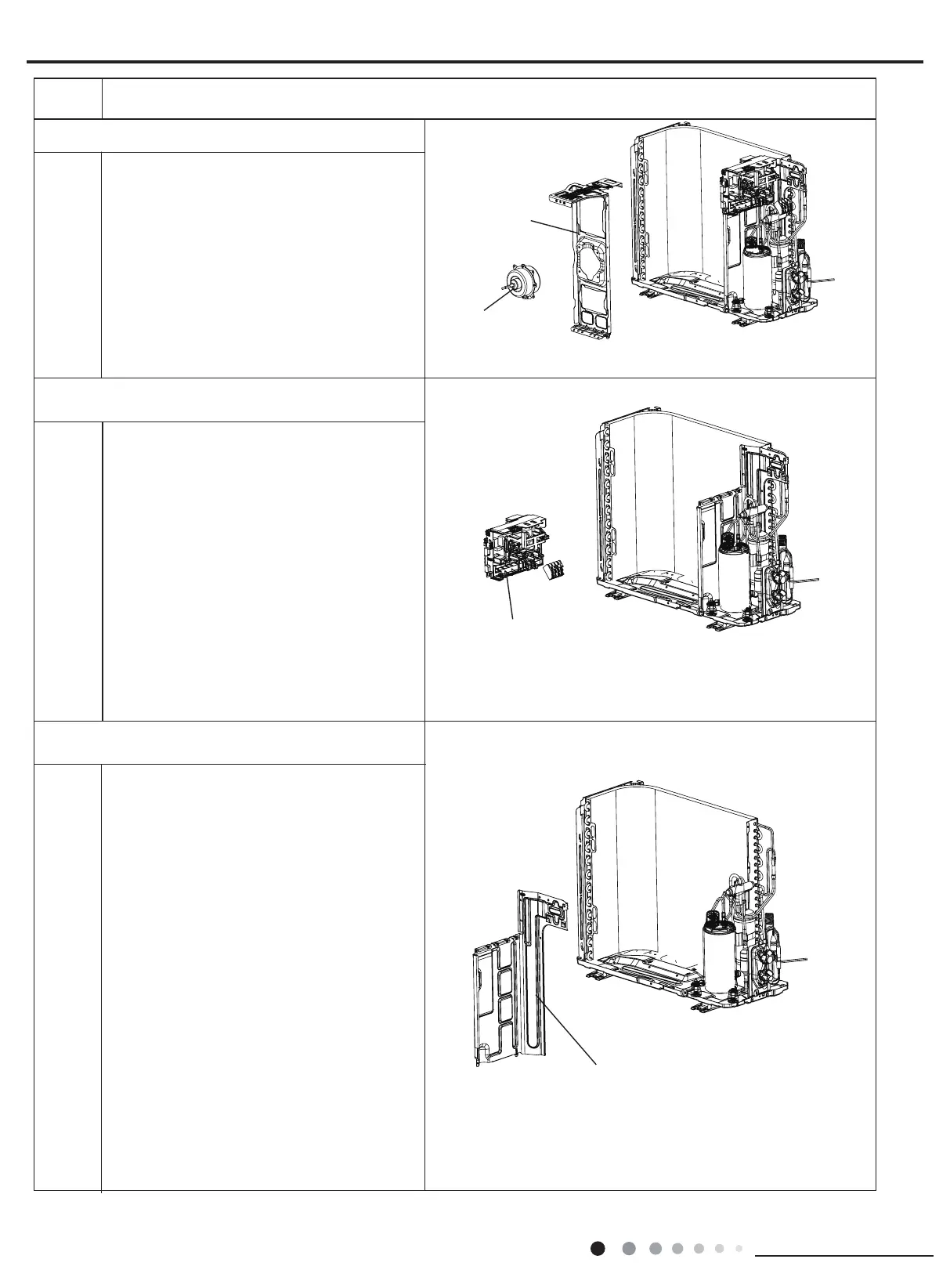

8. Remove motor and motor support
9. Remove Electric Box Assy
10. Remove isolation sheet
