Technical Information
Service Manual

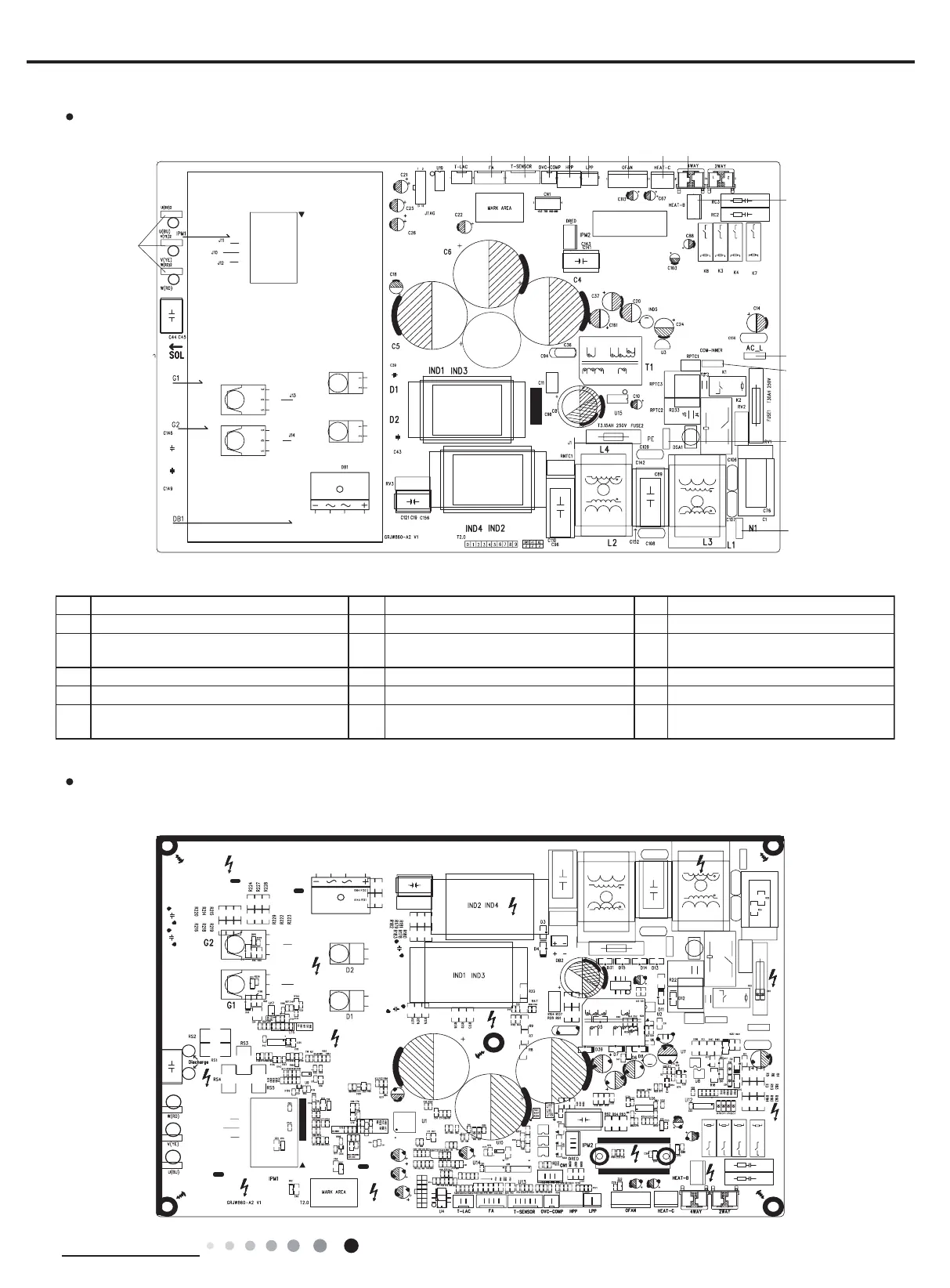

24K
Bottom View
NO. Name NO. Name NO. Name
1 Compressor three phase input interface 6Terminal of high pressure protection 11 Te rminal of chassis electric heating
2
Terminal of low ambient temperature
cooling temperature sensor
7Terminal of low pressure protection 12 Te rminal of live wire
3Terminal of electronic expansion valve 8Terminal of outdoor fan13Terminal of communication
4Terminal of outdoor temperature sensor 9Terminal of compressor electric heating 14 Te rminal of grounding wire
5
Terminal of compressor overload
protection
10 Terminal of 4-way valve15Terminal of neutral wire
1
23 4567 8910
11
12
13
14
15
