Gree GWH12NB-K3NNB1C


5HPRYDO3URFHGXUH

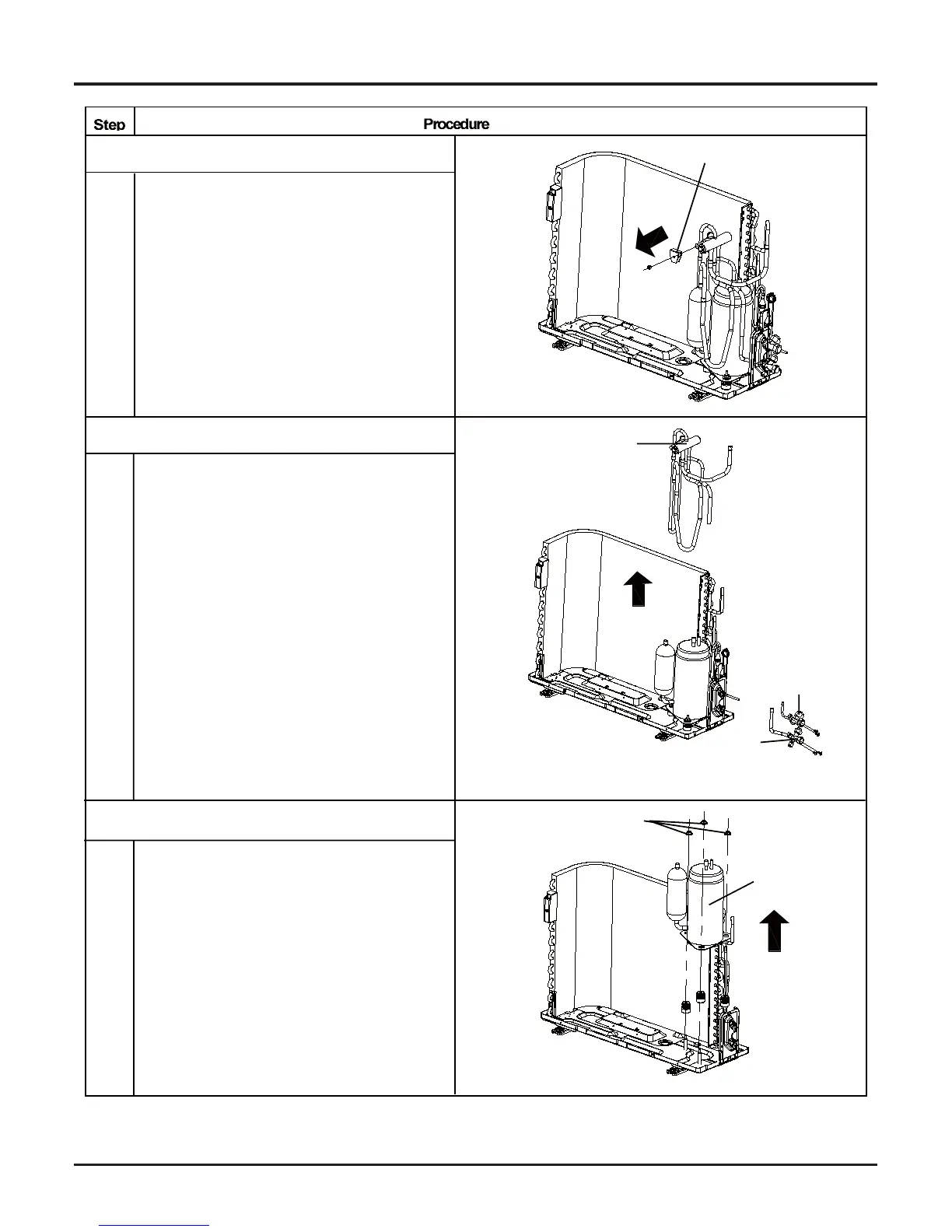

12. Remove magnet coil
Remove the screw fixing the magnet coil and then
remove the coil.
magnet coil
13. Remove valves and 4-way valve subassembly
4-way valve
14. Remove compressor
Remove the foot nuts on the compressor and then
remove the compressor.
compressor
Unsolder welding joint connecting the capillary,
the valve and the outlet pipe of condenser to
remove the capillary. Do not block the capillary
with welding slag during unsoldering.
Remove the 2 screws fixing the gas valve and
unsolder the welding point between the gas valve
and the air-return pipe to remove the gas valve.
(NOTE: Discharge the refrigerant completely
before unsoldering; when unsoldering, wrap the
gas valve with a wet cloth completely to avoid
damage to the valve caused by high temperature).
Remove the 2 screws fixing the liquid valve and
unsolder the welding joint connecting the liquid
valve to the Y-type pipe to remove the liquid valve.
Unsolder the welding joint connecting the 4-way
valve, the compressor and the condenser to
remove the 4-way valve.
liquid valve
gas valve
foot nuts
