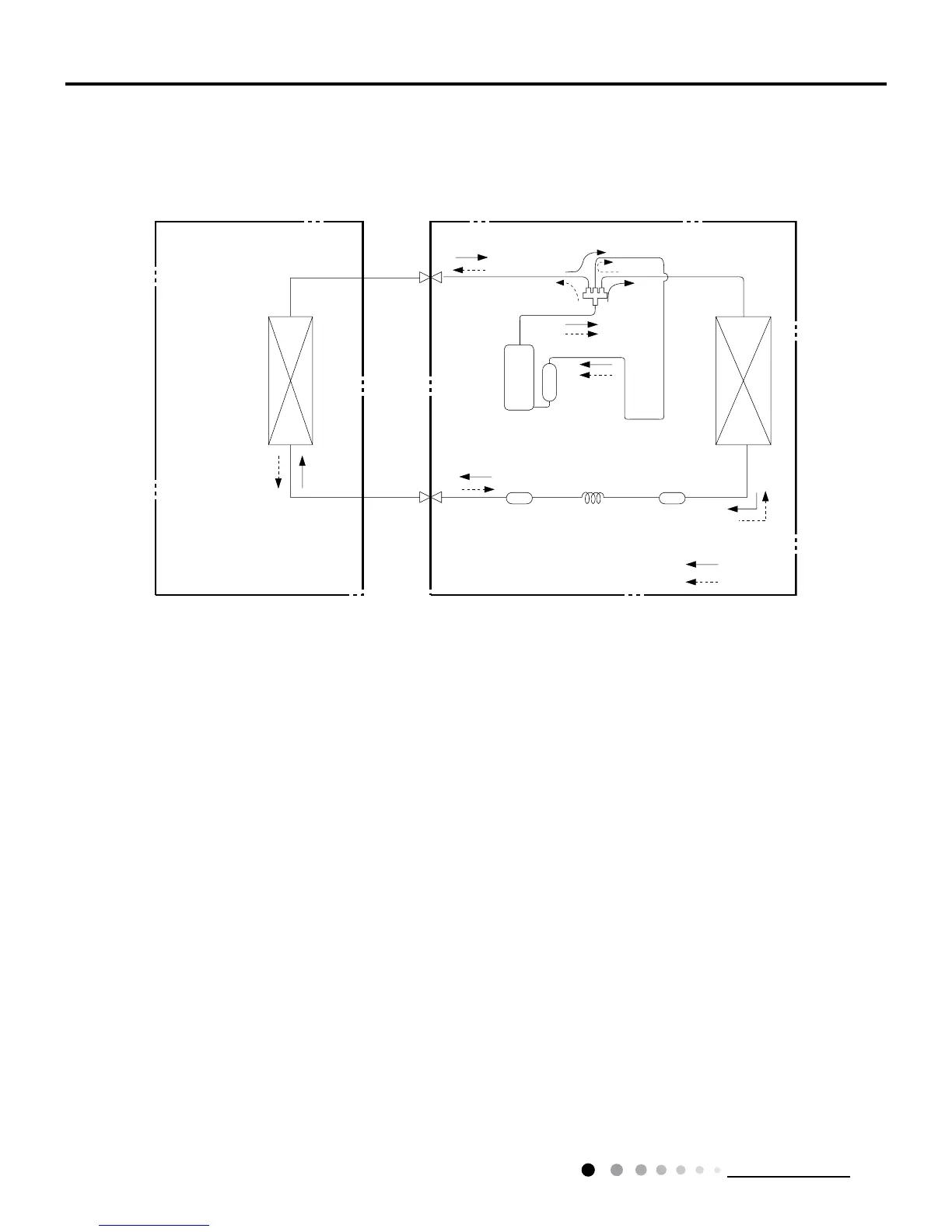

4. Refrigerant System Diagram
Indoor unit
Outdoor unit
COOLING
HEATING
4-Way valve
Discharge
Suction
Heat
exchanger
(evaporator)
Heat
exchanger
(condenser)
Valve
Valve
Liquid pipe
side
Gas pipe
side
Strainer Capillary Strainer
Accumlator
Compressor
&RQQHFWLRQSLSHVSHFL¿FDWLRQ
/LTXLGSLSHPP
*DVSLSHPP
Cooling and heating model
