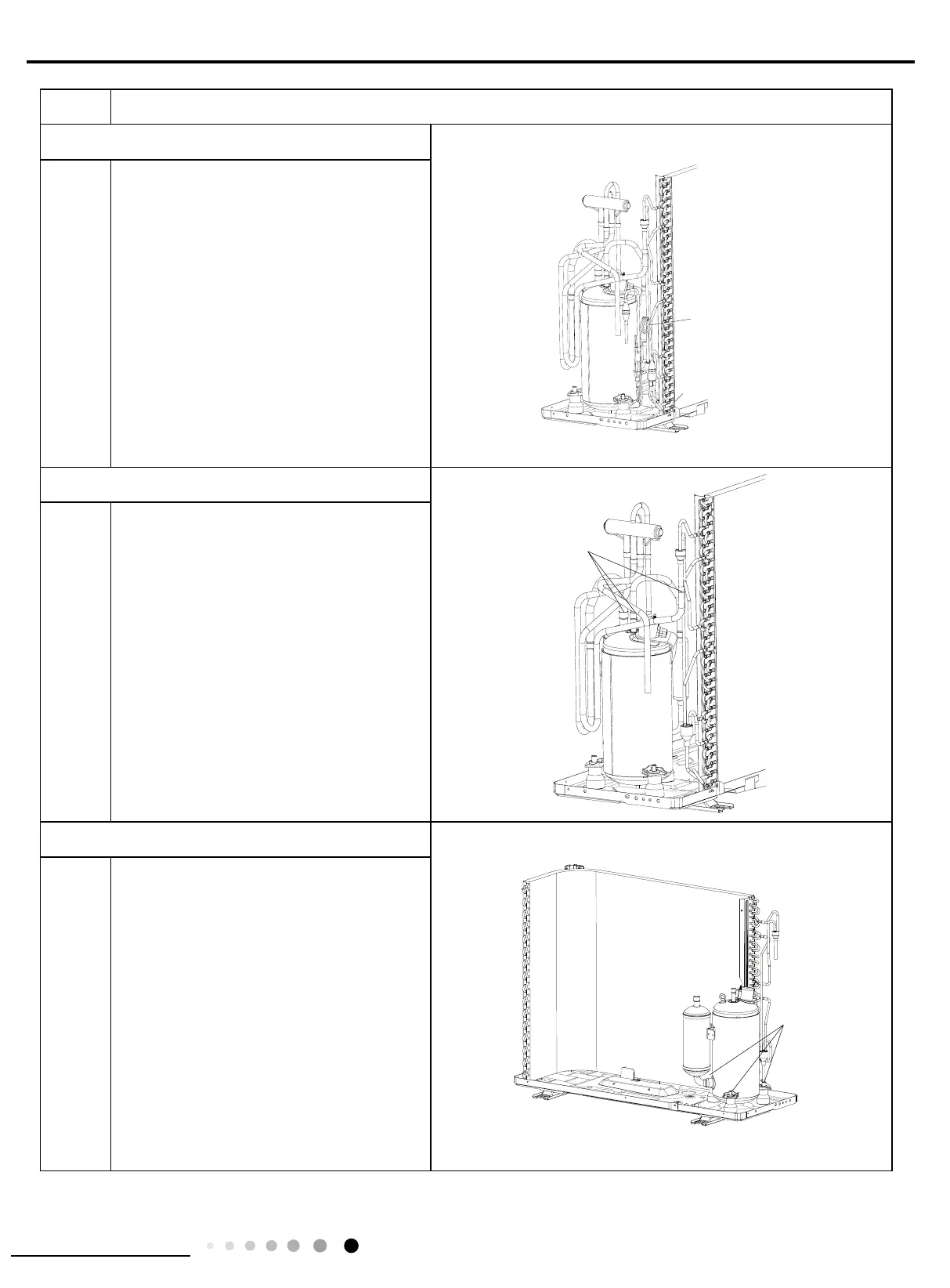

15. Remove 4-way valve assy
14. Remove capillary sub-assy
Cut off the welded pipe of the 4-way valve
component to the condenser assy and
compressor, and then remove the 4-way
valve.
Note:
When cutting weld, wrap the 4-way valve
with wet cloth completely to avoid damaging
the valve due to high temperature.
Cut off the capillary welded tube to the
condenser and remove the capillary.
welds
Capillary Sub-assy
Remove 3 foot nuts on compressor, and then
remove the compressor.
Note:
Protect the ports of discharge pipe and
suction pipe to avoid foreign objects to
enter it.
16. Remove compressor
welds
