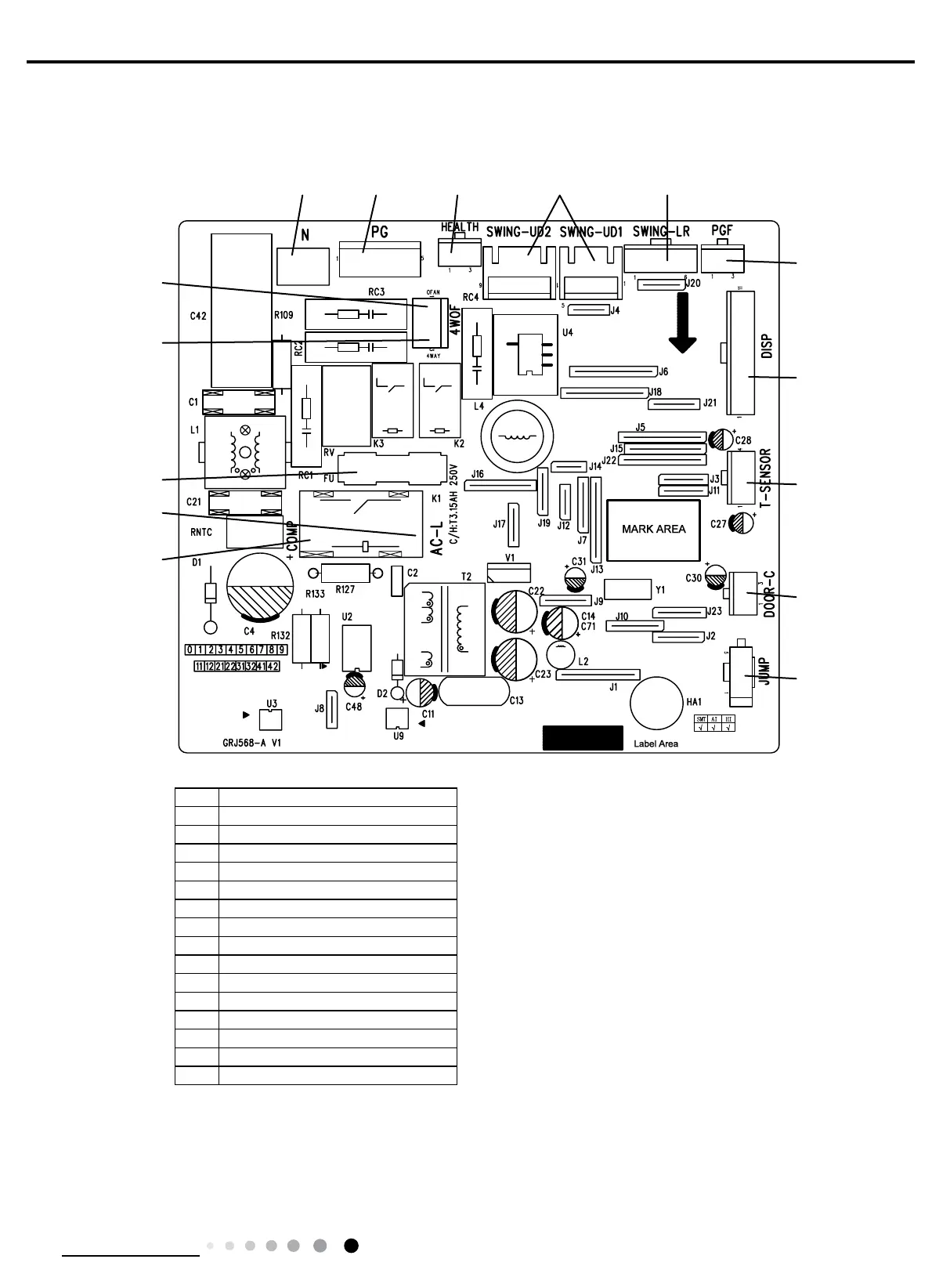

5.2 PCB Printed Diagram
Indoor Unit
6
7
8
9
AGA/AGB
No. Name
1 Neutral wire terminal
2 Control terminal of PG motor
3 Cold plasma control terminal
4 Up&down swing control terminal
5 Left&right swing control terminal
6 PG motor feedback terminal
7 Display terminal
8 Temperature sensor terminal
9 Access control (dry contact) terminal
10 Jumper cap
11 Wiring terminal of compressore
12 Live wire terminal
13 Fuse
14 Control terminal of 4-way valve
15 Control terminal of outdoor fan motor
