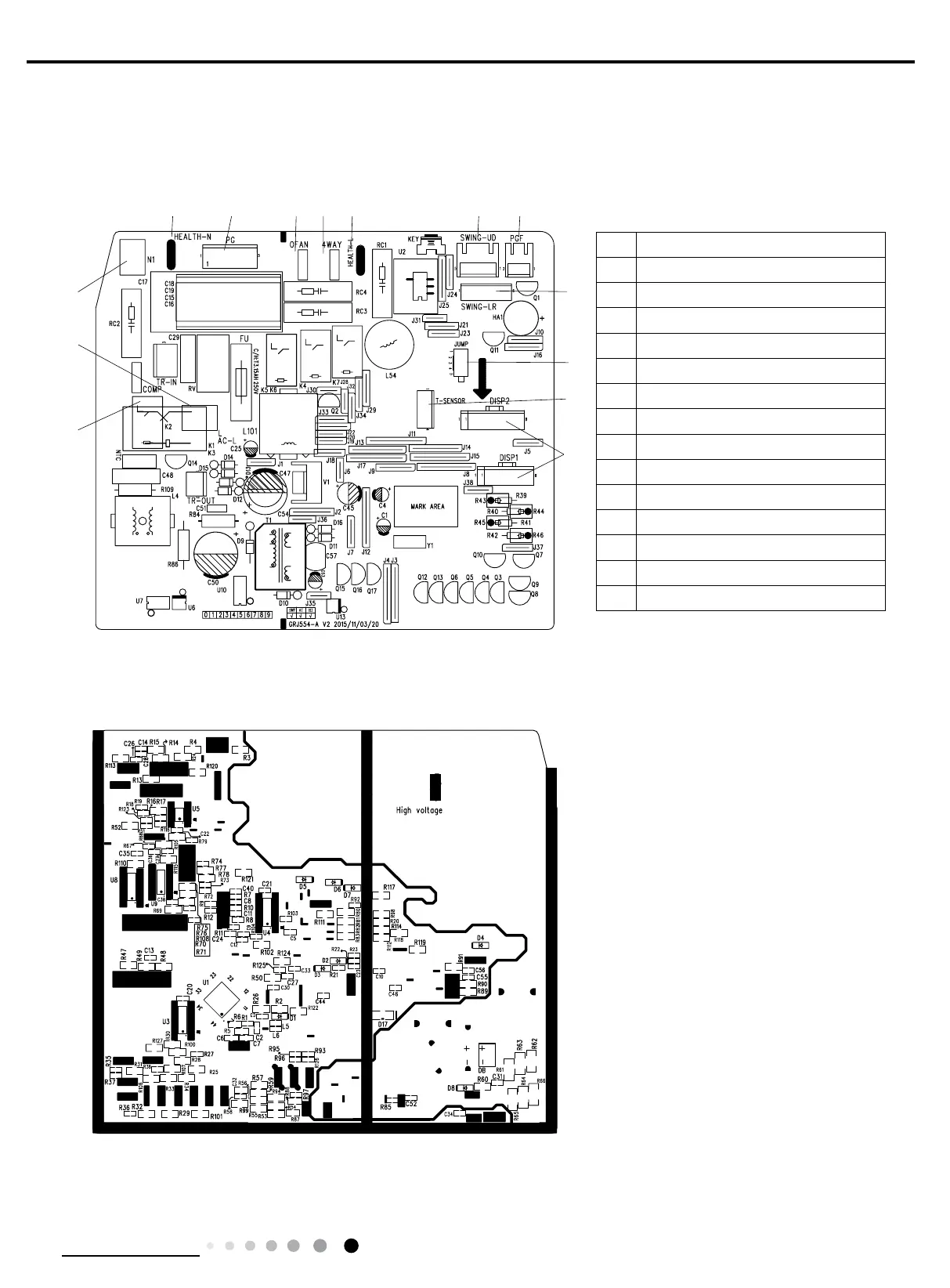

5.2 PCB Printed Diagram
● Top view
● Bottom view
45 67 8910
11
12
14
13
No. Name
1 Compressor interface
2 Interface of power cord live wire
3 Interface of power cord neutral wire
4 Interface of cold plasma neutral wire
5 PG motor interface
6 Outdoor fan interface
7 4-way valve interface
8 Interface of cold plasma live wire
9 Up&down swing interface
10 PG motor feedback interface
11 Left&right swing interface
12 Jumper cap
13 Temperature sensor interface
14 Display board interface
