Gree KF-25GW/NA20 - Disassemble Evaporator Assy

Operation procedures/pictures
Screw
Earth screw
Clasp
Fig.
Fig.
Fig.
Screw
Rear pipe clamp

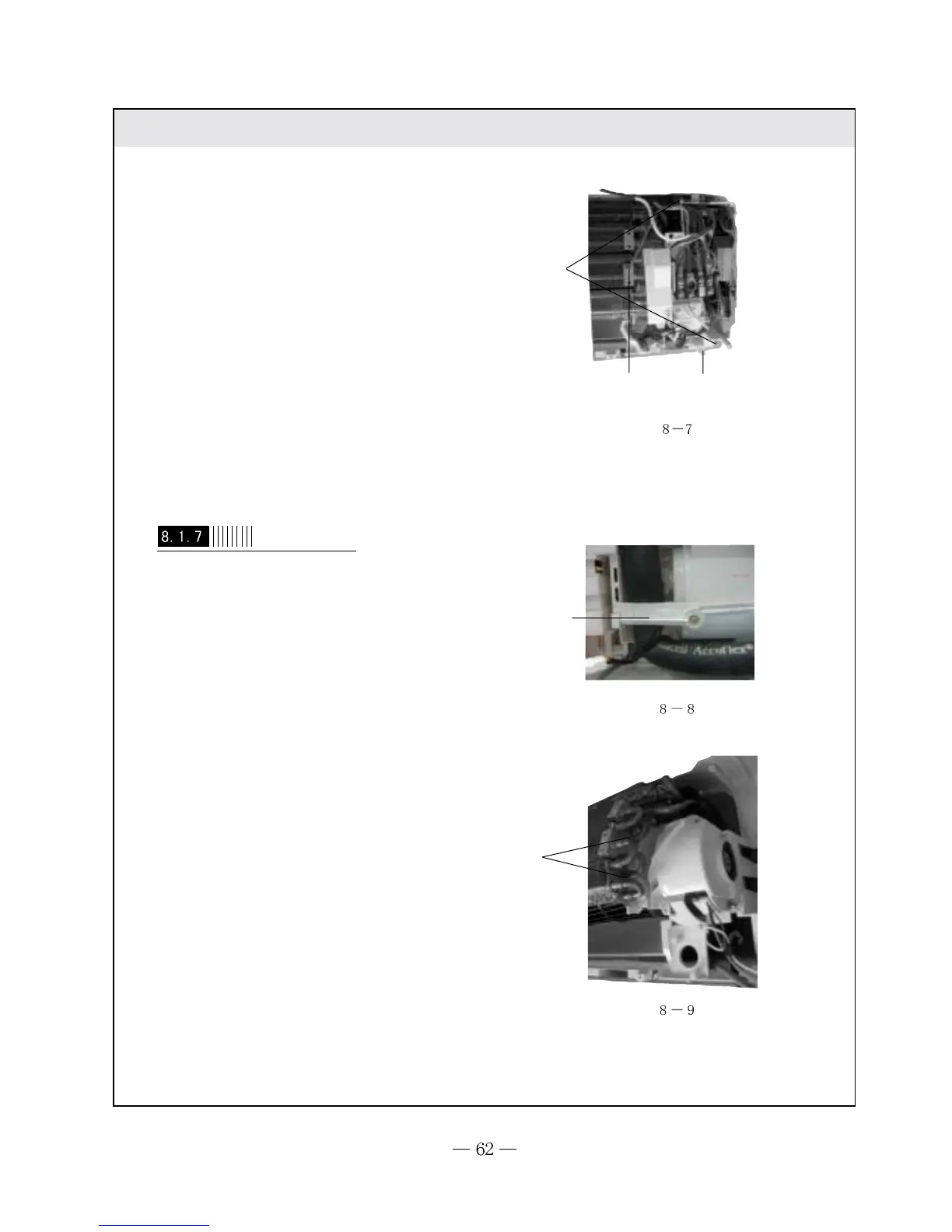

Disassemble evaporator assy
Screw off the screws from rear pipe clamp with
screwdriver, disassemble the rear pipe clamp.
(As shown in Fig.8-8)
T o screw off 2pcs screw from the right of evaporator.
(As shown in Fig.8-9)
