Gree MULTI18HP230V1EO Service Manual

22
Technical Information
Service Manual

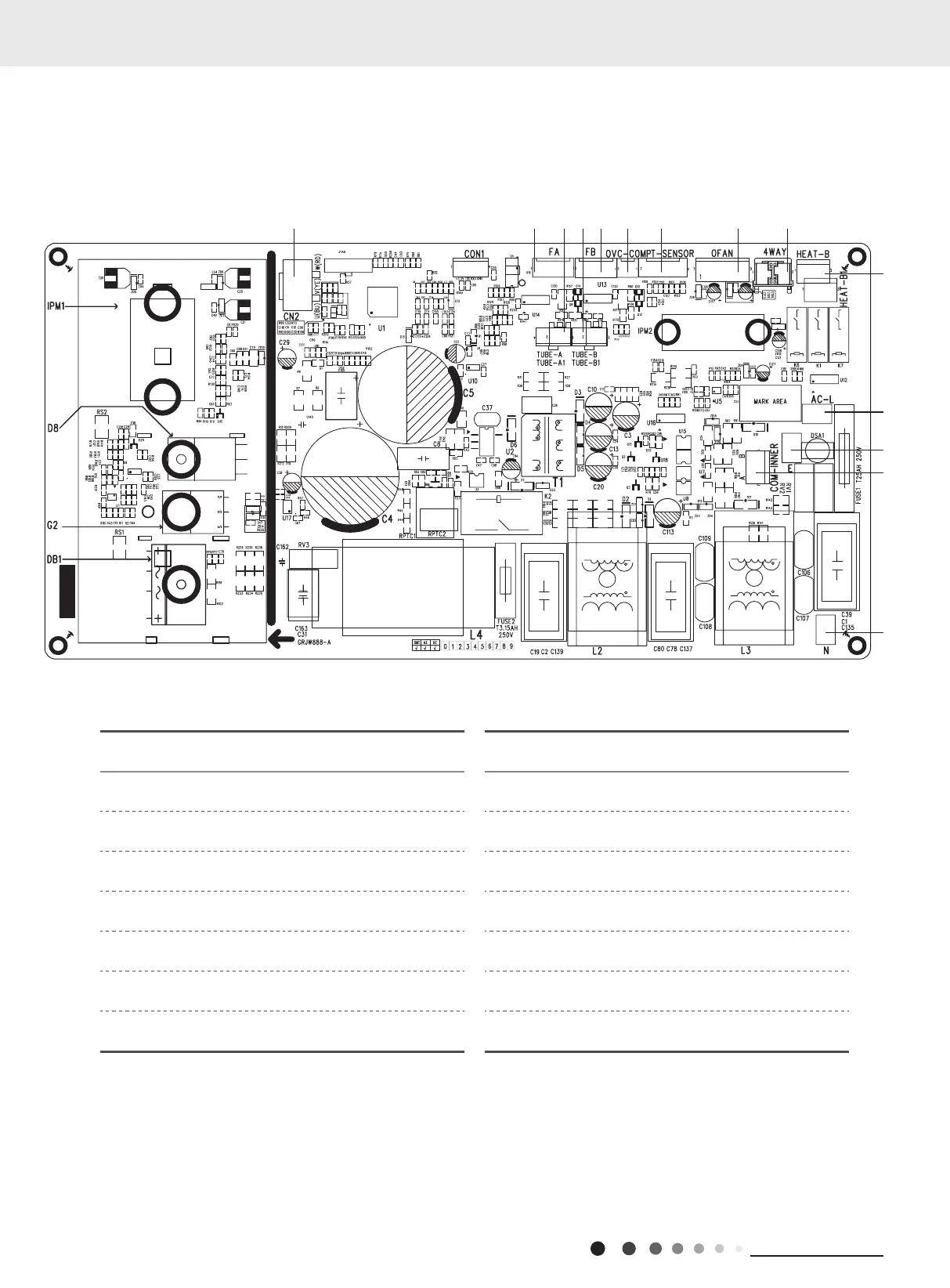

5.2 P
CB Printed Diagram
MULTI18HP230V1EO
No. Name
1 Terminal of compressor
2 Terminal of electronic expansion valve A
3 Terminal of gas-liquid valve temperature Sensor A
4 Terminal of gas-liquid valve temperature Sensor B
5 Terminal of electronic expansion valve B
6 Overload protection terminal of compressor
7 Terminal of temperature Sensor
No. Name
8 Terminal of outdoor fan
9 Terminal of 4-way valve
10 Electric heating terminal of chassis
11 Terminal of live wire
12 Terminal of grounding wire
13 Terminal of communication wire
14 Terminal of neutral wire
1 2 5 6 7 8 9
10
11
12
13
14
3 4
