Gree MULTI24HP230V1CO

11
Technical Information
Service Manual
123456 879
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Ɣ

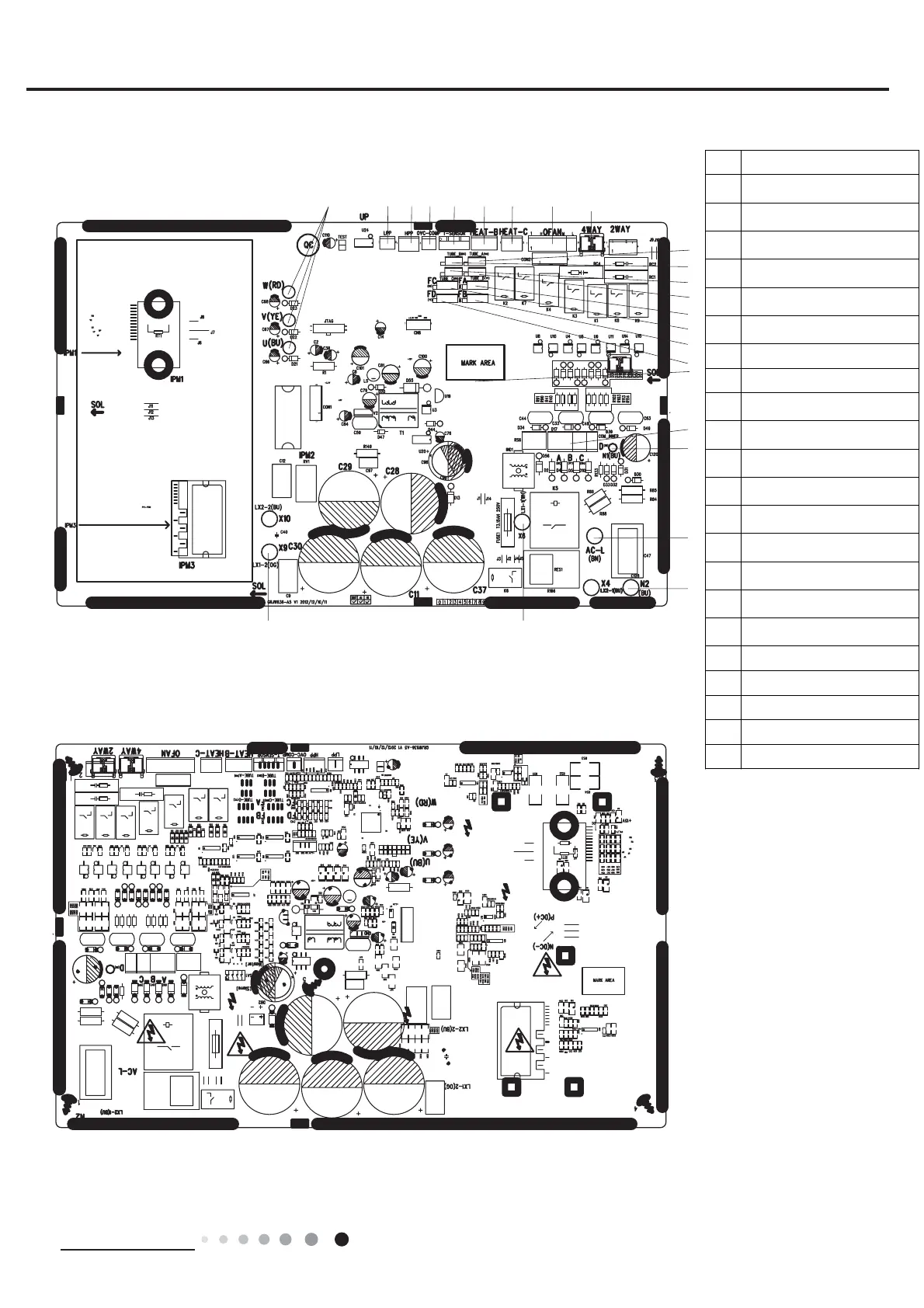

BOTTOM VIEW
MULTI24HP230V1CO
Ɣ
TOP VIEW
1
Terminal of compressor
2
Low pressure protection
terminal
3
High pressure protection
terminal
4
Overload protection terminal of
compressor
5
Temperature sensor terminal of
outdoor unit
6
Electric heating terminal of
chassis
7
Electric heating terminal of
compressor
8
Terminal of outdoor unit
9
Terminal of 4-way valve
10
Temperature sensor for liquid
valve and gas valve for unit A
11
Temperature sensor for liquid
valve and gas valve for unit B
12
Temperature sensor for liquid
valve and gas valve for unit C
13
Temperature sensor for liquid
valve and gas valve for unit D
14
Electronic expansion vale for
unit A
15
Electronic expansion vale for
unit C
16
Electronic expansion vale for
unit B
17
Electronic expansion vale for
unit D
18
Communication wire with indoor
unit
19
Neutral wire for counication
20
Live wire
21
Neutral wire
22
Reactor wire 1
23
Reactor wire 2
