47
Installation and Maintenance
Service Manual

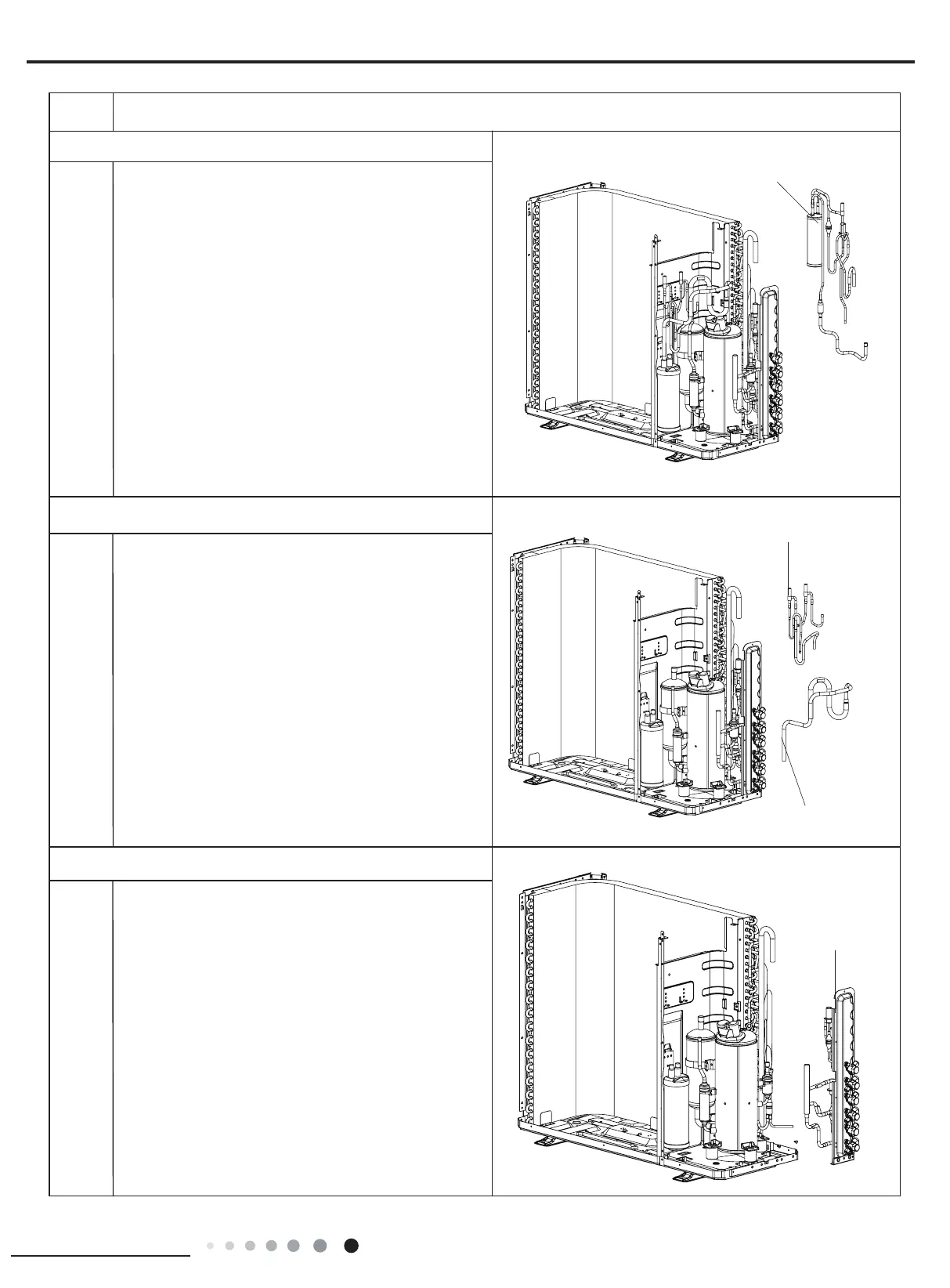

Steps Procedure
electromagnetic valve sub-assy
inhalation tube sub-assy
Unsolder all spot welds electromagnetic valve sub-
assy and then remove the electromagnetic valve sub-
assy.
Unsolder all spot welds inhalation tube sub-assy and
then remove the inhalation tube sub-assy.
11. Remove electromagnetic valve sub-assy and inhalation
tube sub-assy
10. Remove ash vaporizer assy
ash vaporizer assy
Unsolder all spot welds cflash vaporizer assy, and
then remove the ash vaporizer assy.
valve support
Unsolder all spot welds connected with valve support
and then remove the valve support.
Note:When unsoldering the spot weld, wrap the gas
valve and liquid valve with wet cloth completely to
avoid damage to valve due to high temperature.
12. Remove valve support
To Next Page
