GMV5 HR HEAT RECOVERY VRF Units Technical Sales Guide

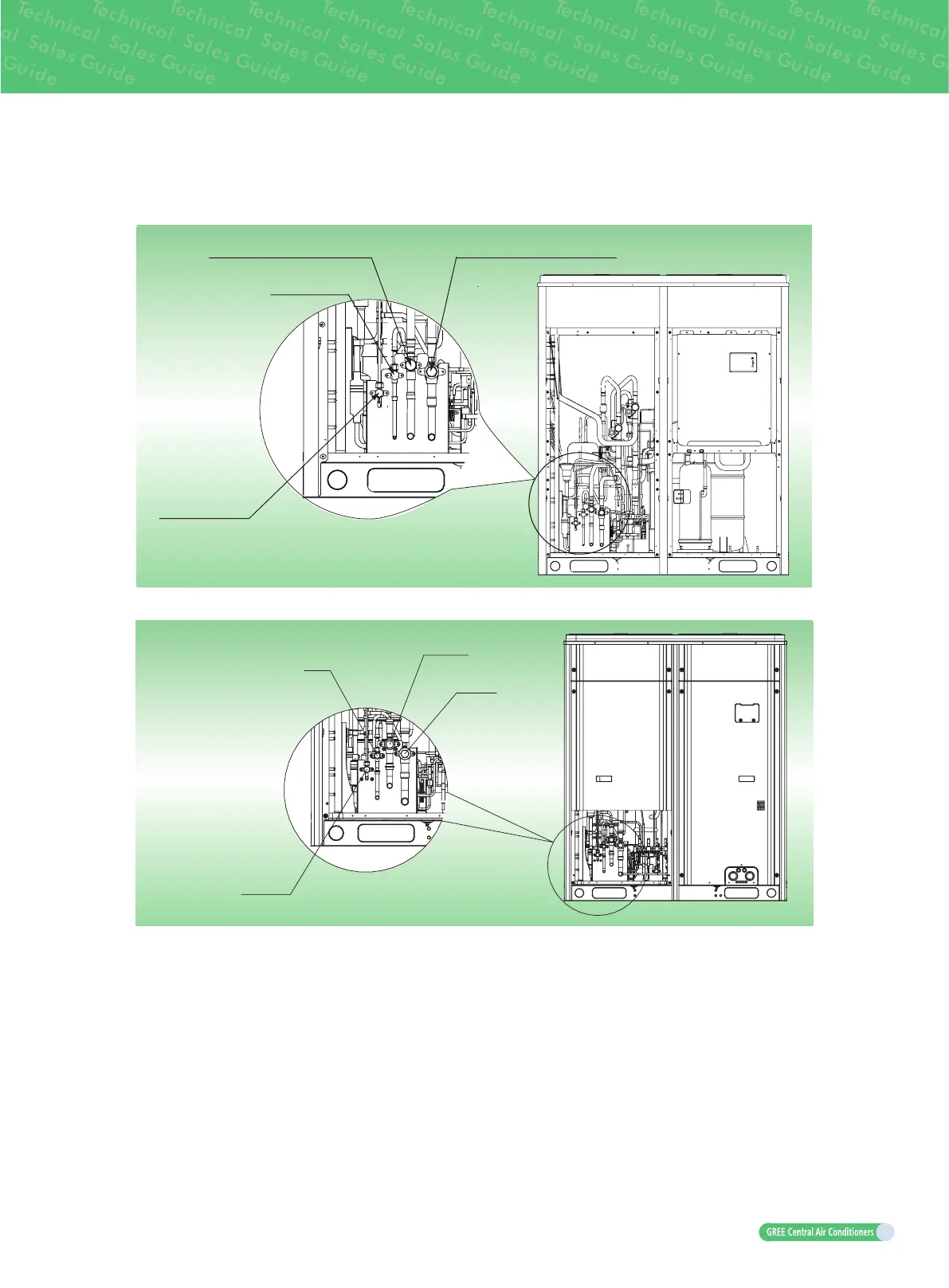

Schematic Diagram of Piping Sequence
GMV-Q72WM/B-F(U), GMV-Q96WM/B-F(U) and GMV-Q120WM/B-F(U); GMV-Q144WM/B1-F(U),
GMV-Q72WM/B-U(U), GMV-Q96WM/B-U(U) and GMV-Q120WM/B-U(U)
High pressure gas pipe Low pressure gas pipe
Liquid pipe
Low pressure
check valve
GMV-Q168WM/B1-F(U)
Liquid pipe
High pressure gas pipe
Low pressure gas pipe
Low pressure check valve
