Gree U-match Series

DC Inverter U-match Series Cassette Type Unit
42

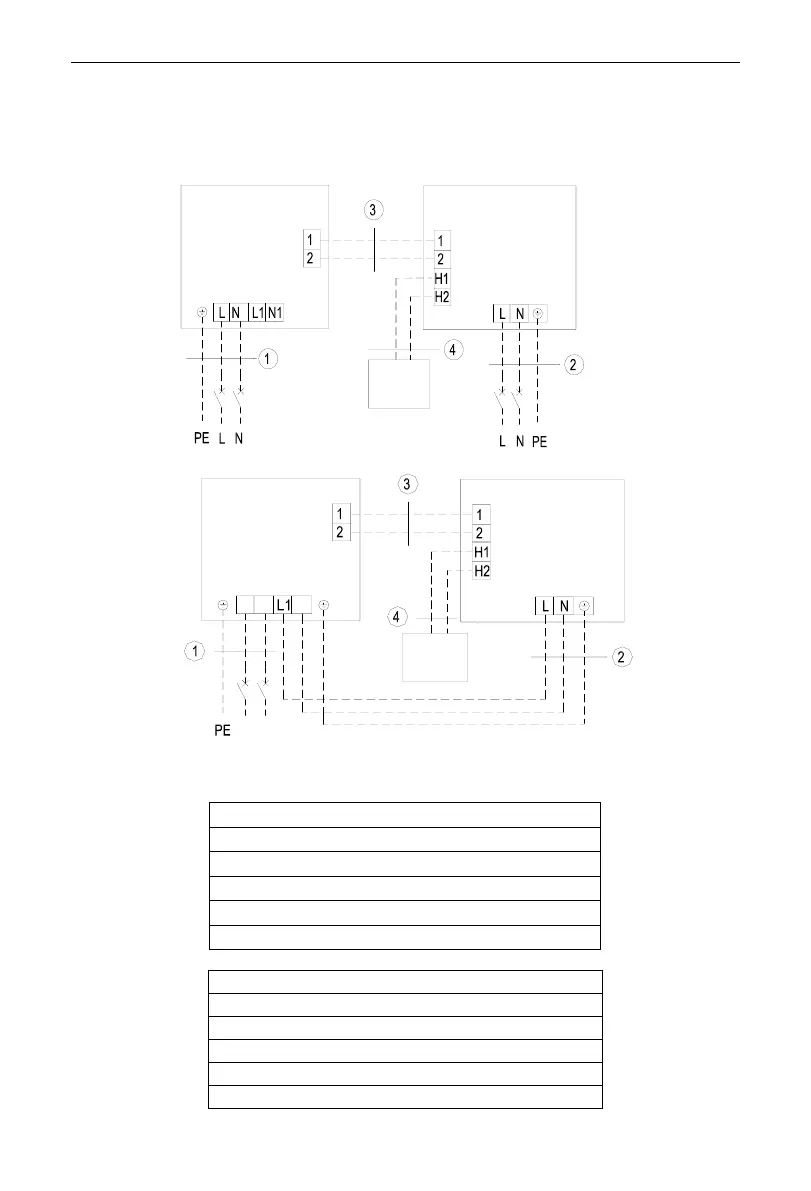

(4) Wire between indoor and outdoor units.
Single-phase unit: GUD35W/NhA-T, GUD50W/NhA-T, GUD71W/NhA-T,
GUD85W/NhA-T.
Outdoor Unit
Indoor Unit
Wired
Controller
Breaker
Breaker
Power:220V-240V~50Hz/208V-230V~60Hz
Power:220V-240V~50Hz/208V-230V~60Hz
L N
Outdoor Unit
L N
Indoor Unit
Wired
Controller
N1
Power:220V-240V~50Hz/208V-230V~60Hz
Power:220V-240V~50Hz/208V-230V~60Hz
Breaker
GUD35T/A-T+GUD35W/NhA-T
GUD50T/A-T+GUD50W/NhA-T
①
. Power cord 3×1.5mm²
②
. Power cord 3×1.0mm²
③
. Communication Cords 2×0.75mm
2
④
. Communication Cords 2×0.75mm
2
GUD71T/A-T+GUD71W/NhA-T
GUD85T/A-T+GUD85W/NhA-T
①
. Power cord 3×2.5mm²
②
. Power cord 3×1.0mm²
③
. Communication Cords 2×0.75mm²
④
. Communication Cords 2×0.75mm²
