2) Outdoor side.
Remove the big handle/front panel of the outdoor unit and insert one end of
the communication cord and the power cord to the terminal board.
Single-phase unit: GUD35W/NhA-T, GUD50W/NhA-T, GUD71W/NhA-T,
GUD85W/NhA-T.

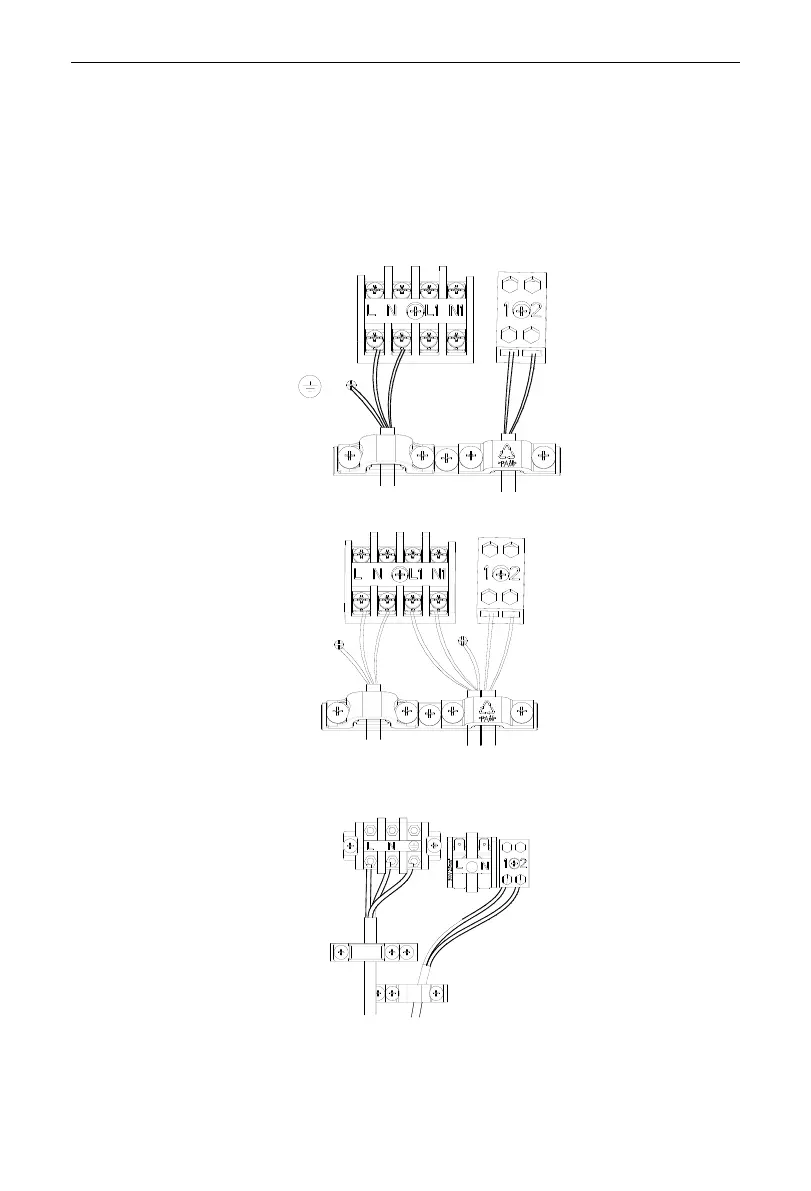

a) Wire routing of separated power supply:
b) Wire routing of unified power supply：
Single-phase unit
：
GUD100W/NhA-T, GUD125W/NhA-T, GUD140W/NhA-T.
a) Wire routing of separated power supply for single phase.
