Gree YAA1FB1 - Refrigerant System Diagram; Indoor Unit; Outdoor Unit


5HIULJHUDQW6\VWHP'LDJUDP
5HIULJHUDQW6\VWHP'LDJUDP
5HIULJHUDQWSLSHGLDPHWHU
/LTXLGPP*DVPP

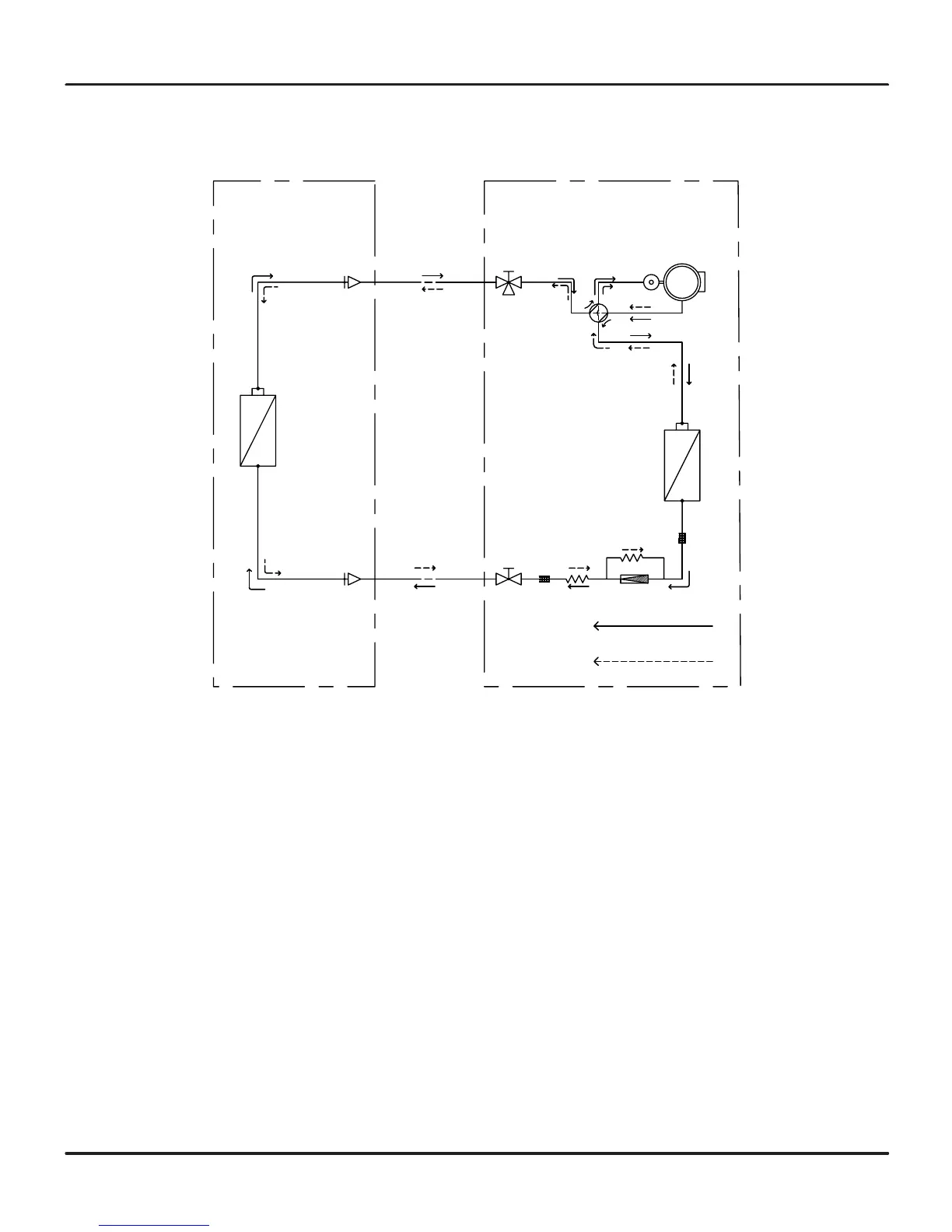

Cooling cycle
Indoor unit
Outdoor unit
Narrow tube
Wide tube
Capillary
tube
Heat exchanger
Heat exchanger
Compressor
cone-way valve
Capillary
tube
Heating cycle
4-way valve
Accumlator
Strainer
Strainer
Wide tube
service
valve
Narrow
tube
service
valve
