Technical Information
Service Manual

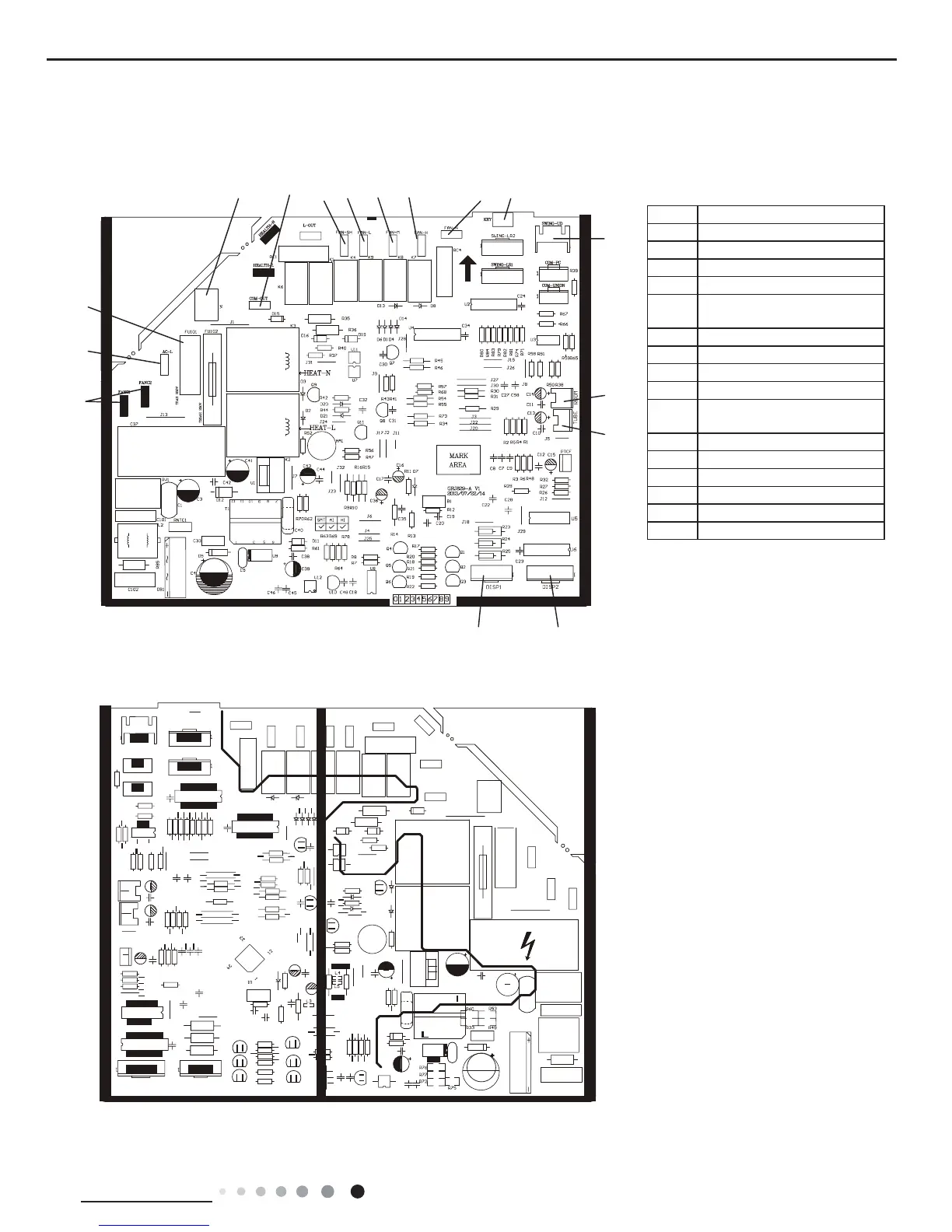

5.2 PCB Printed Diagram
● Top view
● Bottom view
No. Name
1 Fan motor capacitor terminal
2 Live wire
3 Fuse
4 Neutral wire
5
Indoor & outdoor unit
communication cable terminal
6 Wiring terminal for turbo fan
7 Low fan level terminal
8 Medium fan level terminal
9 High fan level terminal
10
Wring terminal for neutral wire
of fan
11 Auto button
12 Up & down swing terminal
13 Ambient temp sensor
14 Tube temp sensor
15 No.2 double-8 display terminal
16 No.1 double-8 display terminal
1
2
3
456879 1110
12
13
14
15
16
Indoor Unit
