TECHNICAL INFORMATION
TIMED ON INDICATOR
The indicator glows when the ‘TIMED
O
N’ output is active.
BOOST ACTIVATOR
The indicator glows if the ‘BOOST
SWITCH’ is used.
ON/OFF SWITCH - SWITCH IS IN ‘OFF
POSITION’
The settings of the ‘TIMED ON’and
‘BOOST’ time period are not activated
the clock runs but the heater is
disconnected.
SWITCH IS IN ‘ON POSITION’
The settings of the ‘TIMED ON’ AND
‘BOOST’ time period are activated and
the water will be heated during the
‘TIMED ON’ time period.
BOOST BUTTON
1. This button is only needed if you
need extra hot water during the
day time ‘PEAK’ time.
2. Choose your boost time
(adjustable between 15 & 120
minutes). Press
the ‘BOOST BUTTON’
once for switching ON.
3. If you want to interrupt the boost
function before the boost time is
completed: Press the ‘BOOST
BUTTON
’ again.
CHANGING THE ‘TIMED ON’ TIME
PERIOD
To set the time on period, move the
tappets for the ‘TIMED ON’ time period
to the outer position of the dial. The
minimum switching time is 15 minutes.
SETTING THE TIME OF DAY
Turn the dial in the direction of the
arrow (clockwise) until the correct time
of day is exactly opposite the time set
m
arker on the clockface (24hr clock).
FITTING THE SEE-THROUGH COVER
1
. Once the see through cover is
located, it can be removed using a
screwdriver.
2. Align the bar on the edge of the
c
over with the groove at the lower
end of the dial in the housing.
3. Remove the cover by applying a
screwdriver between groove and
c
over.
Dia.10
Dia.11
Boost
Indicator
Boost
Button
On/Off
Switch
T
imed on
Indicator
Clock with
Tappets

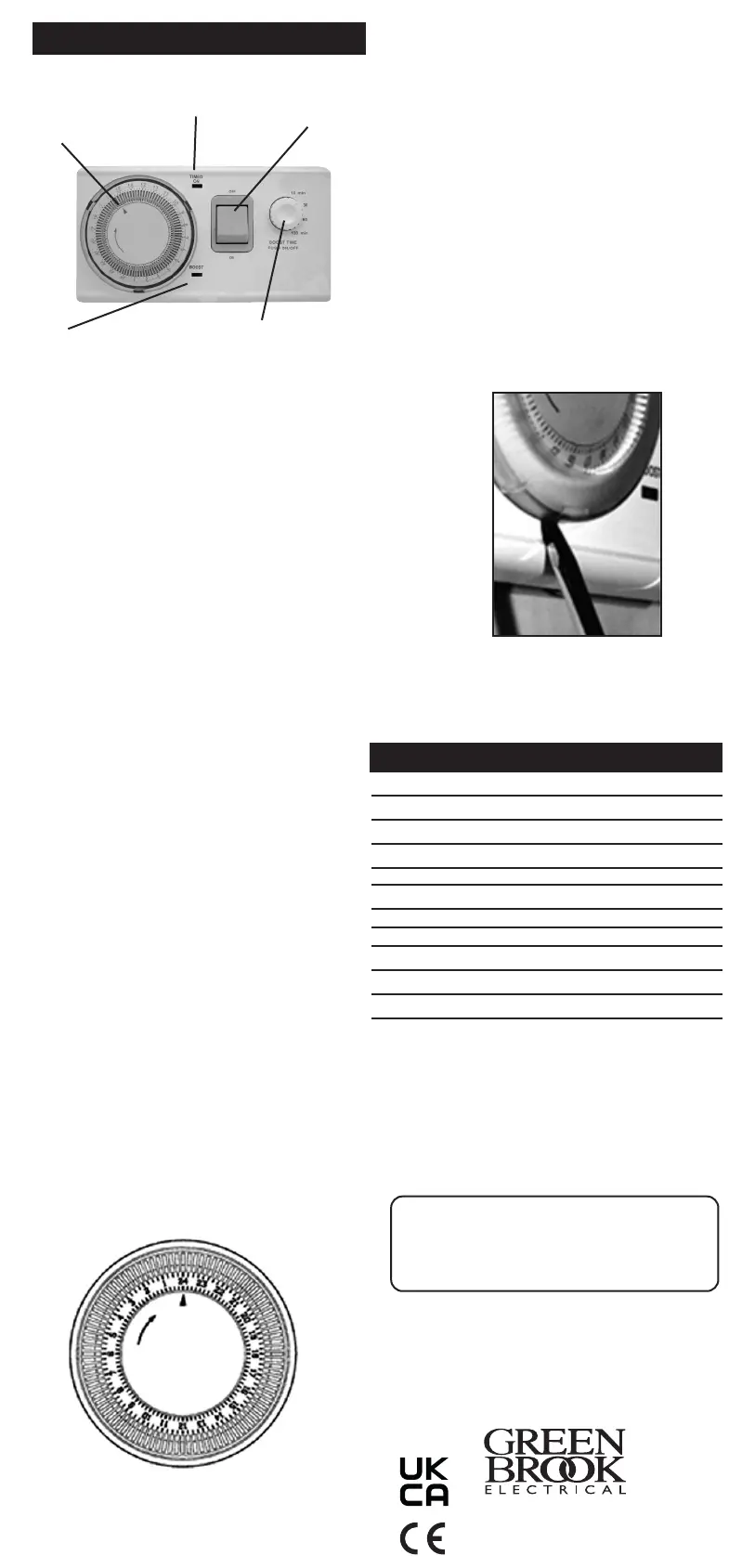

H
EATER CONTROLLER AT A GLANCE
Dia.9
Rated Voltage: 230V, AC 50Hz
Max Current: 16A resistive, 2A Inductive
Ambient Temp: -10°C to + 55°C
Rating: 16A for immersion
heaters upto 3.5Kw
Boost: Adjustable between 15
and 120 minutes
Fitting: Surface mounted
Dimensions: 86H x 155W x 55D (mm)
Protection Category: IP20
Conforms To: EN 60730-1 & EN 60730-2-7
Issue no: 706355
WEST ROAD . HARLOW
ESSEX . CM20 2BG . UK
info@greenbrook.co.uk
www.greenbrook.co.uk
GUARANTEE
Your GreenBrook Dual Tariff Boost Timer
is guaranteed for 1 year from
the date of purchase.
This is in addition to your statutory rights.
PLEASE KEEP THESE INSTRUCTIONS
SAFE FOR FUTURE REFERENCE
NOTE:
Product & Packaging Disposal
When disposing of this item and its packaging
please follow local regulations and use an
appropriate waste disposal centre.
See GreenBrook website for further details.
