Greenheck MS-1P User Manual

3
Motor Starter Single Phase
Lockout Options

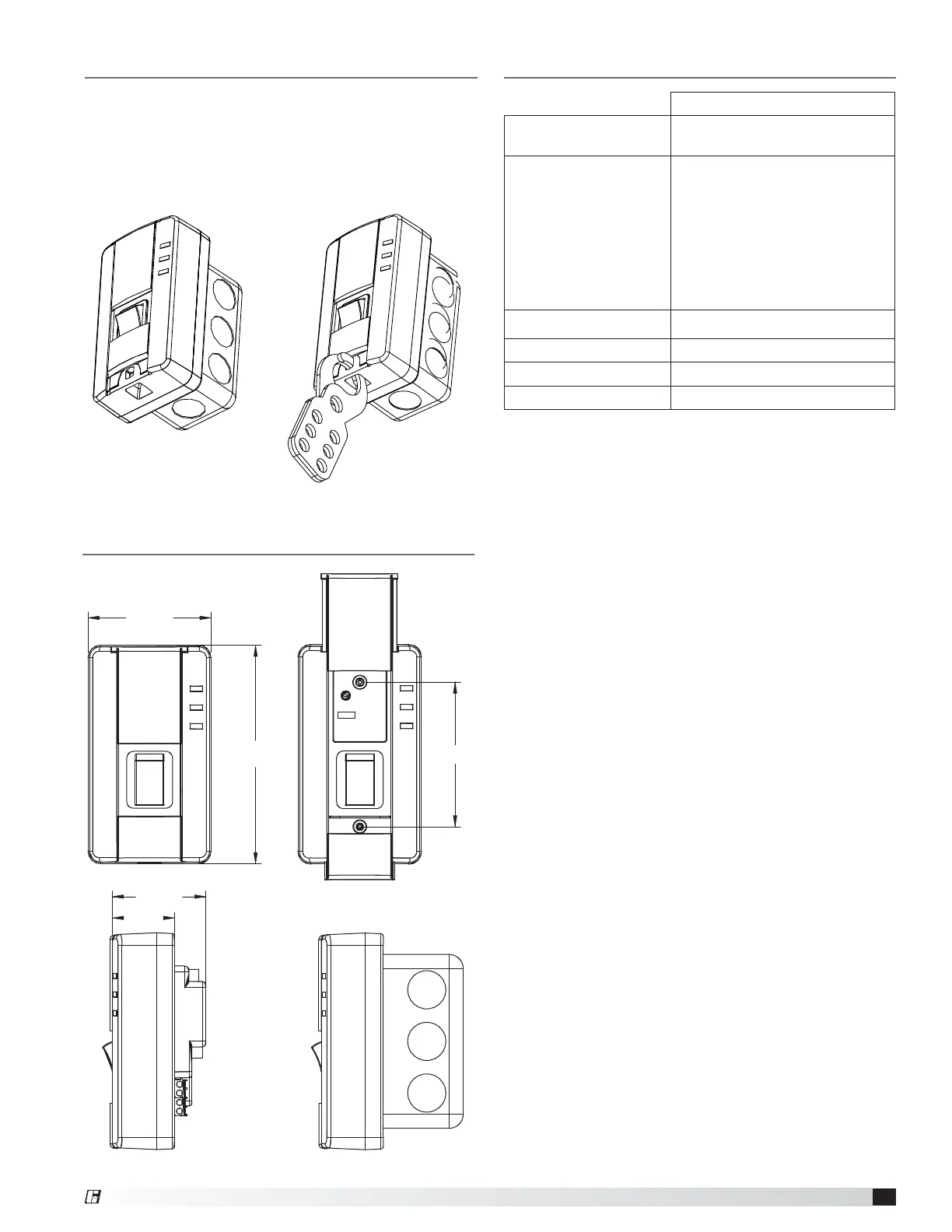

To lockout, slide the lower cover upward to reveal
concealed locking grasp. Insert a standard padlock
to prevent unauthorized access or tampering. If
multiple padlocks are required, an optional padlocking
attachment can be utilized (not included).
See Figures 2A and 2B
Figure 2A Figure 2B
3.29
4.93
2.75
1.43
2.15
HAND RESET
AUTO
All dimensions in inches
Dimensions
Product Ratings
MS-1P
Horsepower
1 Horsepower
115 or 230 VAC
Short Circuit
Protection
Suitable for use on a circuit
capable of delivering not more
than I
k
RMS Symmetrical
Amperes, 240 volts maximum
when protected by Class J or
Class RK fuses (30 amp max)
or magnetic circuit breaker (40
amp max)
Interrupt Current I
k
≤ 5kA RMS Symmetrical
Max Current 16A
Overload I
2
t Class 10
Reset Manual
®
