Greenlee 690 - Wiring Diagram

Greenlee Textron / Subsidiary of Textron Inc.
14
4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070

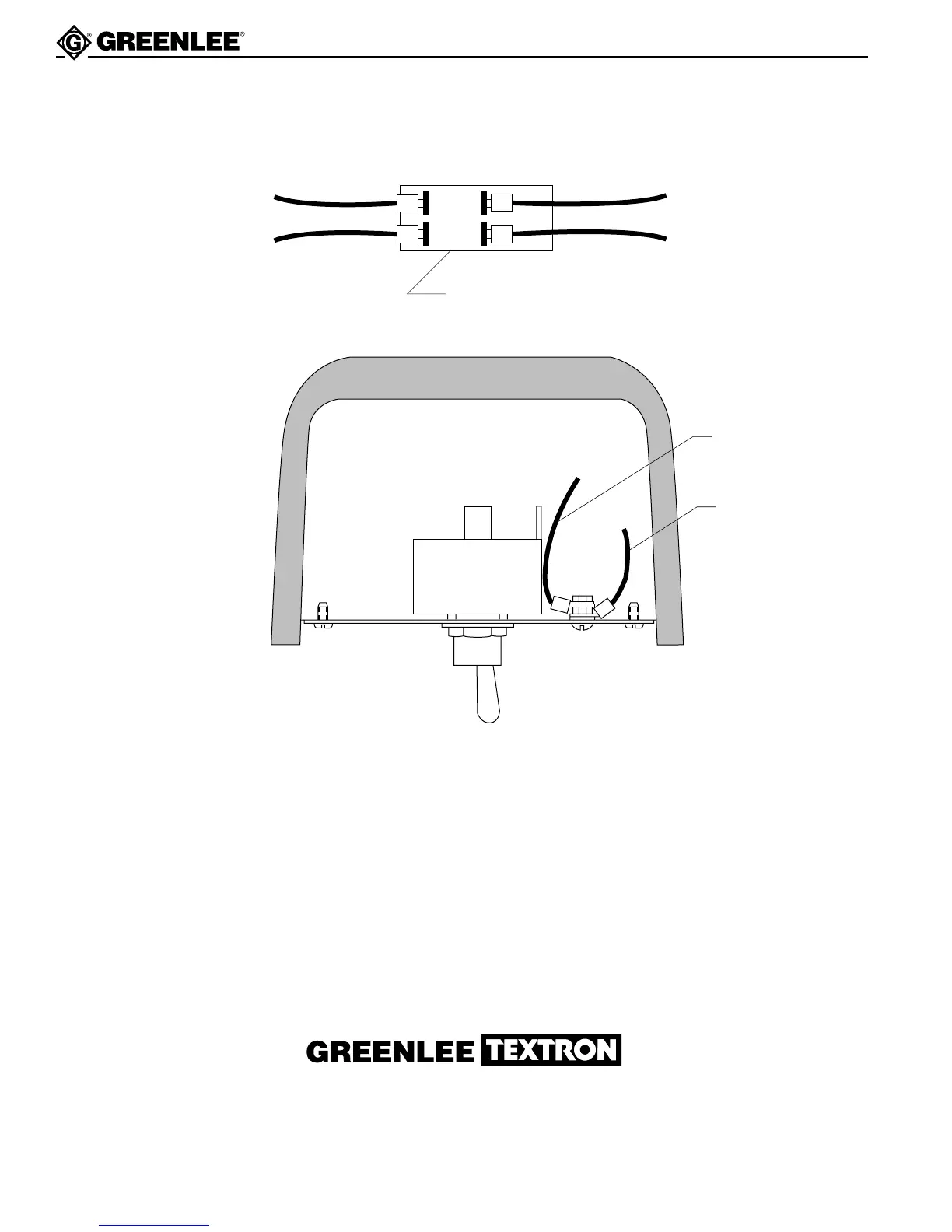

690 and 690-22 Power Fishing Systems
Wiring Diagram
Switch
Black
Motor Leads Power Cord
White
Black
White
Ground Wire from Motor
Ground Wire from Cord
