980 Hydraulic Power Pump

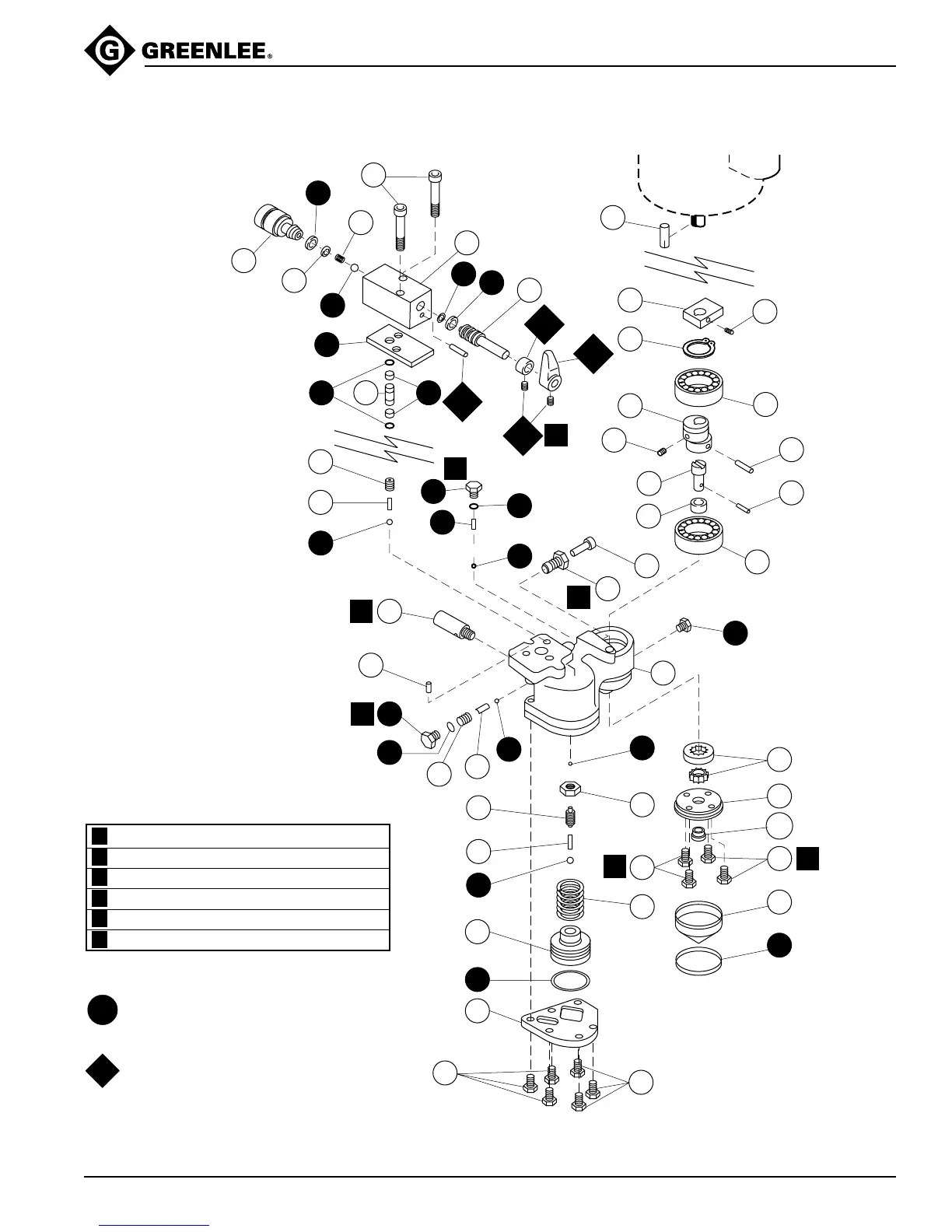

Exploded View—Pump Block
78
7
7
50
49
48
46
45
44
47
7
43
42
71
70
69
107
68
73
72
71
70
69
105
79
106
42
58
56
57
104
61
60
112
55
52
64
63
59
66
65
34
32
36
33
38
39
40
77
103
41
76
75
84
80
81
102
82
83
7
37
114
62
54
53
9
2
2
5
6
3
4
2
See Driv-Lok Pin under
Sealing Instructions
for Assembly in the
Service Section.
503 4369.6
Hydraulic Repair Kit
503 5464.7
Release Knob Retrofit Kit
1 1.13 - 1.35 N
•
m 10 - 12 inch-pounds
2 2.8 - 3.4 N
•
m 25 - 30 inch-pounds
3 110 N
•
m 80 foot-pounds
4 27 N
•
m 20 foot-pounds
5 34 N
•
m 25 foot-pounds
6 68 N
•
m 50 foot-pounds
Torque Table
