LS60L Battery-powered Punch Driver
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
6

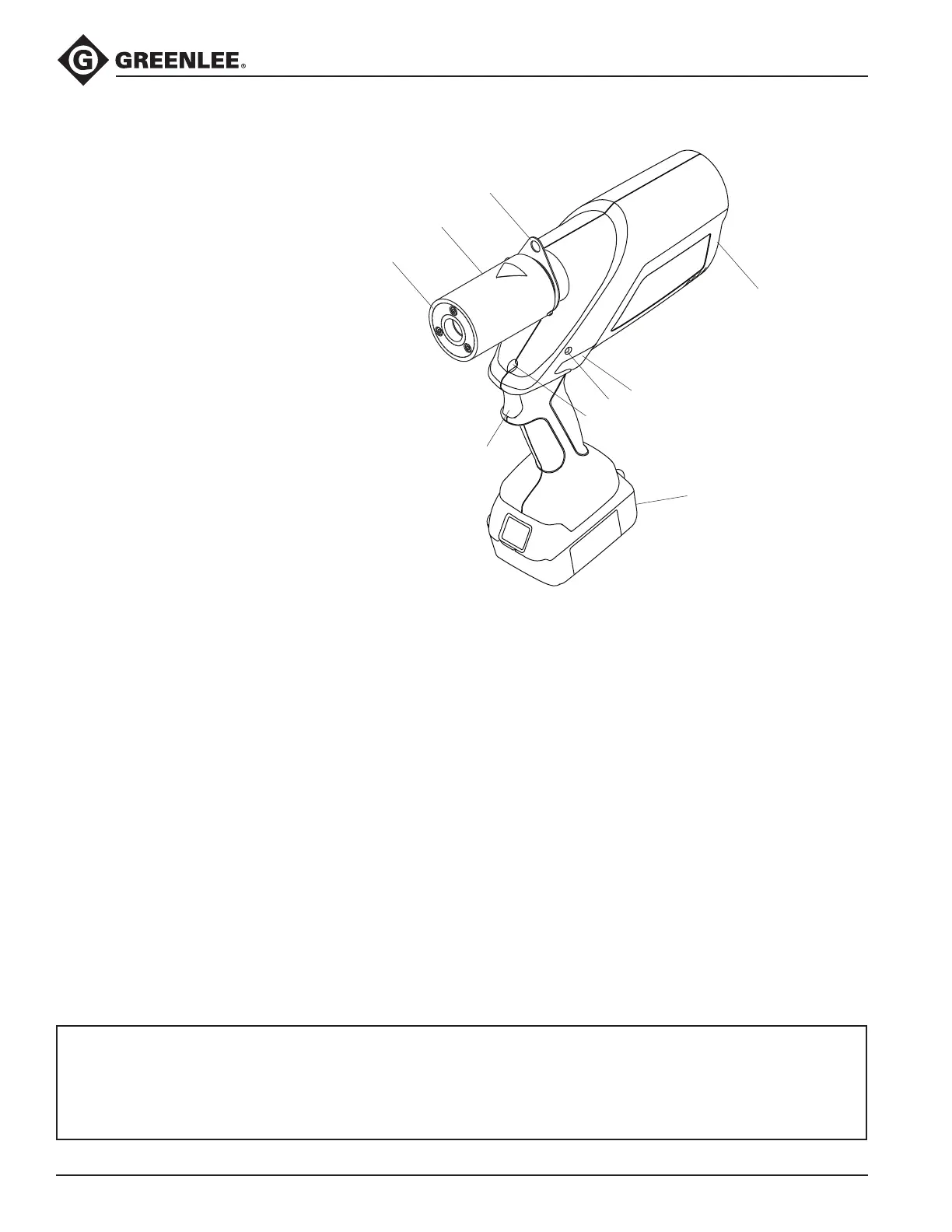

Identification
1. Ram
2. Ram Housing
3. Lanyard Ring
4. Housing
5. Retract Button
6. LED Indicator (red)
7. LED Work Light (white)
8. Battery
9. Trigger
Specifications
Punch Driver
Overall Length (ram retracted) .................................................................. 10.5" (266.7 mm)
Overall Length (ram extended) .................................................................... 11.3" (287 mm)
Width .......................................................................................................... 2.87" (72.9 mm)
Height ..................................................................................................... 11.75" (298.4 mm)
Weight ........................................................................................................... 7.75 lb (3.5 kg)
Punch Force ................................................................................................6.7 tons (60 kN)
Maximum Punch Diameter (in 10 gauge mild steel) ................................... 2.50" (63.5 mm)
Maximum Ram Travel ................................................................................... 0.87" (22 mm)
Hydraulic Oil ......................................................... 52057878 biodegradable hydraulic uid
Recommended Operating Temperature Range ......................
5 °F to 122 °F (–15 °C to 50 °C)
Battery Charger ........................................................................ Read the instructions supplied
with the battery charger
8
3
6
5
4
7
9
2
1
52047087 120 VAC corded adapter
52047088 230 VAC corded adapter
52049189 18 V, 3 Ah lithium-ion battery
52049201 120 VAC, 18 V charger
52049202 230 VAC, 18 V charger
52049204 12 VDC, 18 V charger
52054992 Li (18 V) to NiCd, NiMH (12 V) charger adapter
50122746 Carrying strap
