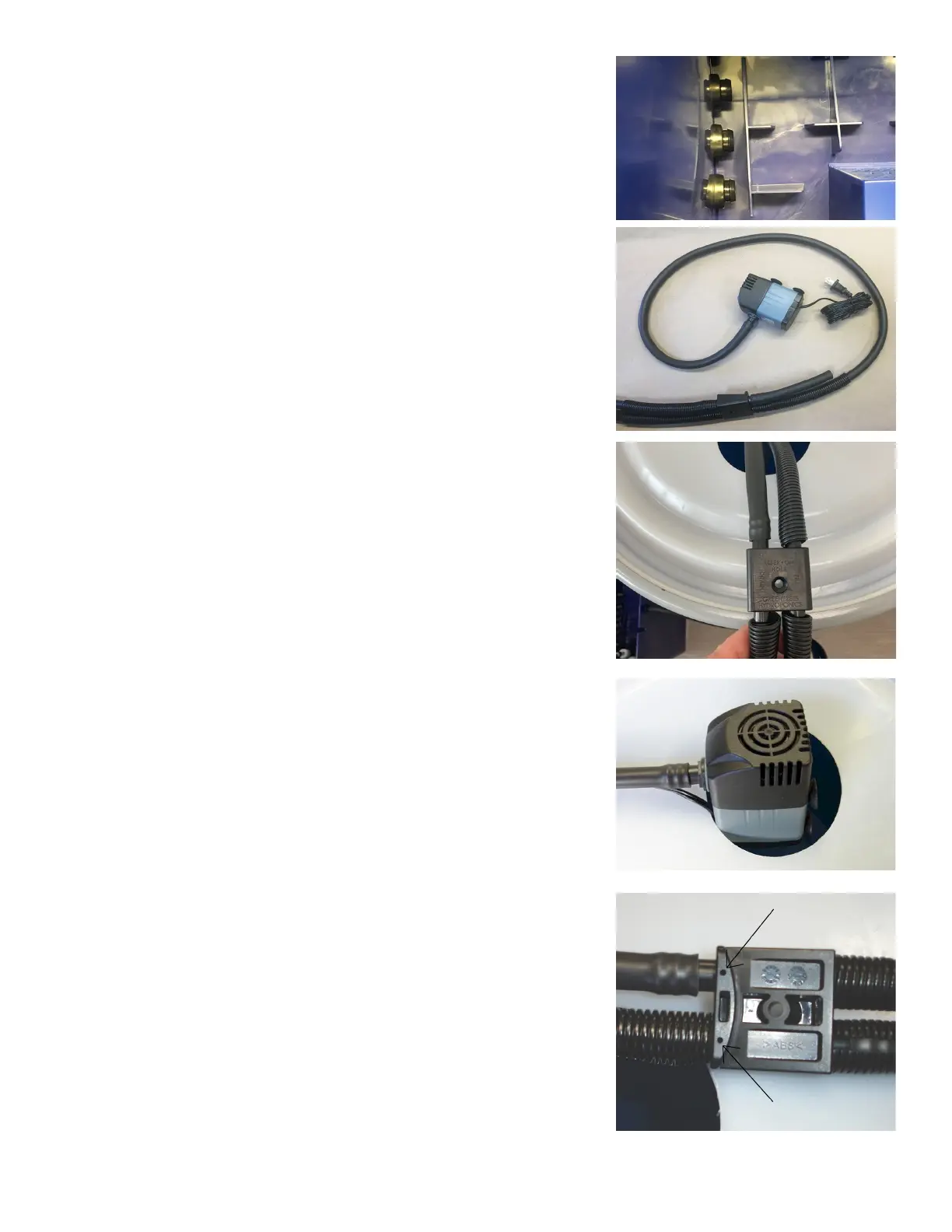

Insert the Connectors just far enough so the first ridge is exposed
on the inside. Pushing the Connectors in to far may cause a reduction in
water flow.
Cut a ten inch section of the ½” tubing and connect it to the
Fill/Drain Tube Mount fitting marked DRAIN on the side marked
RESERVOIR HOLE. Cut three sections of the ½” tubing four feet long
and connect them to the other three fittings on the Fill/Drain Tube Mount.
Cut three sections of the 5/8” Tube Wrap one foot long and slide
them over the three longer tubes on Fill/Drain Tube Mount up to the
Mount. Connect one of the pumps to the long tube on the Fill/Drain Tube
Set marked FILL on the side marked RESERVOIR HOLE.
Put the Fill Pump with the Fill/Drain Tube Set connected to it, into
the hole in the top of the reservoir. Hang the power cord over the side, it
will be plugged into the Controller later.
The Fill/Drain Tube Mount has two small holes on the bottom side.
These are siphon breaks and must not be obstructed! A small
amount of water may come out of the hole so position them over the
large opening in the reservoir.
To Next Page
