ASSEMBLY

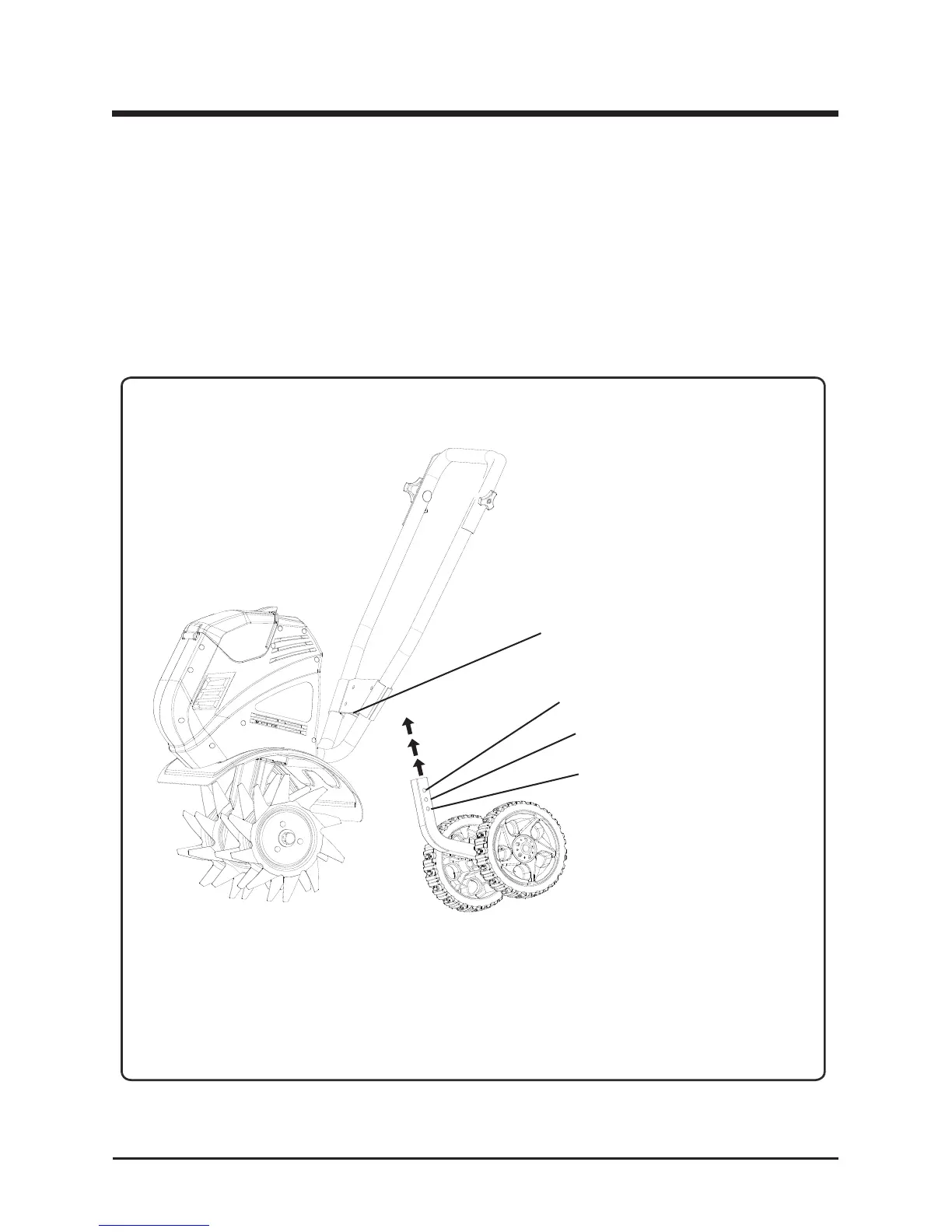

ASSEMBLING THE WHEELS (See Figure. 5)
The wheels are used to control the depth of operation. To adjust the height of the wheels.
1. Remove the battery from the unit.
2. Place cultivator in a stable position as shown in Fig. 5
3. Insert the wheel assembly (2) into the support rod (3). (Fig. 5)
4. Pull out on spring-loaded knob (4) and slide wheel shaft up or down depending on the
depth trying to be achieved.
5. The deepest tilling is Position A and highest, Position B.
POSITION A - DEEPEST
Fig. 5
(2) WHEEL ASSEMBLY
(3) SUPPORT ROD
POSITION B - HIGHEST
