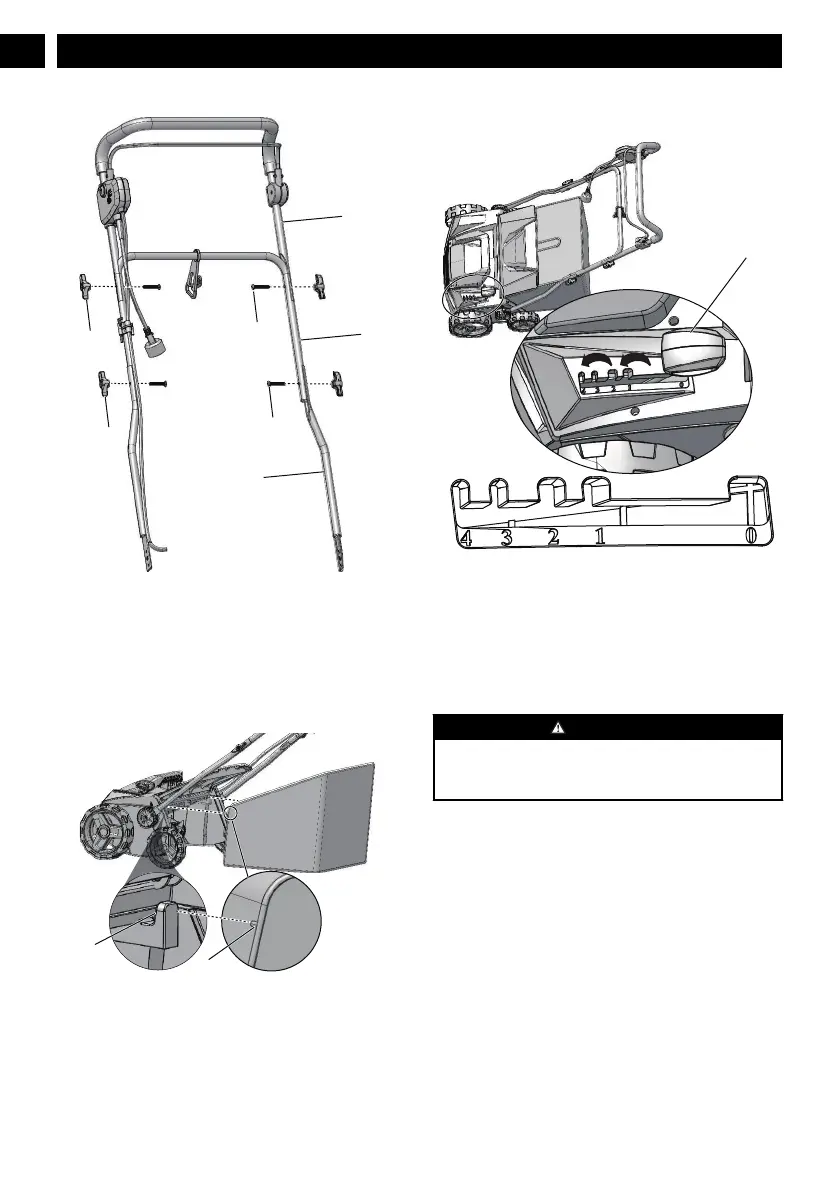

3.3 INSTALL THE UPPER HANDLE
10
8
4
15
16
16
15
1. Align the holes in the upper handle (10), the middle
handle (8) and the lower handle (4).
2. Put the bolt (16) through the hole.
3. Tighten the knob (15) onto the bolts.
4. Repeat the same operation on the other side.
3.4 INSTALL THE GRASS CATCHER
17
18
1. Open the rear discharge door and hold it.
2. Hold the grass catcher by its handle and engage the hooks
(18) over the slots (17).
3. Close the rear discharge door.
3.5 SET THE BLADE HEIGHT
The machine can be set to different working depths.
6
-7/16” -3/8” -1/4” -1/8” 1/4”
1. Pull the depth adjustment lever (6) forwards to increase
the working depth.
2. Pull the depth adjustment lever backwards to decrease the
working depth.
4 OPERATION
WARNING
To avoid serious personal injury, wear googles or safety
glasses at all times when operating the dethatcher. Wear a
face mask or dust cover at dusty locations.
