GreenWorks G24JACK - Jack Overview and Installation; Install the Battery Pack; Remove the Battery Pack; Operation

3 JACK OVERVIEW
2
3
9
1
4
5
6
7
8
1 LED Light 6 Saddle
2 24V Car Jack 7 Piston
3 Directional Switch 8
Release Valve
Wrench
4 Power Switch 9 Hazard Lights
5 Release Valve
4 INSTALLATION
4.1 INSTALL THE BATTERY PACK
Note: Always inspect the battery charger, battery, and
battery compartment for damage, dirt, or debris before
inserting battery into the car jack. Do not use battery if
it is damaged. Clean any dirt or debris from battery and
battery compartment.
Note: greenworks
®
bears no liability for accidents,
personal injury or property damage (or damage to
batteries,products or chargers) that occurs as a result of
the use of non-genuine, counterfeit and / or “knock-off"
batteries and / or chargers.
2
1
3

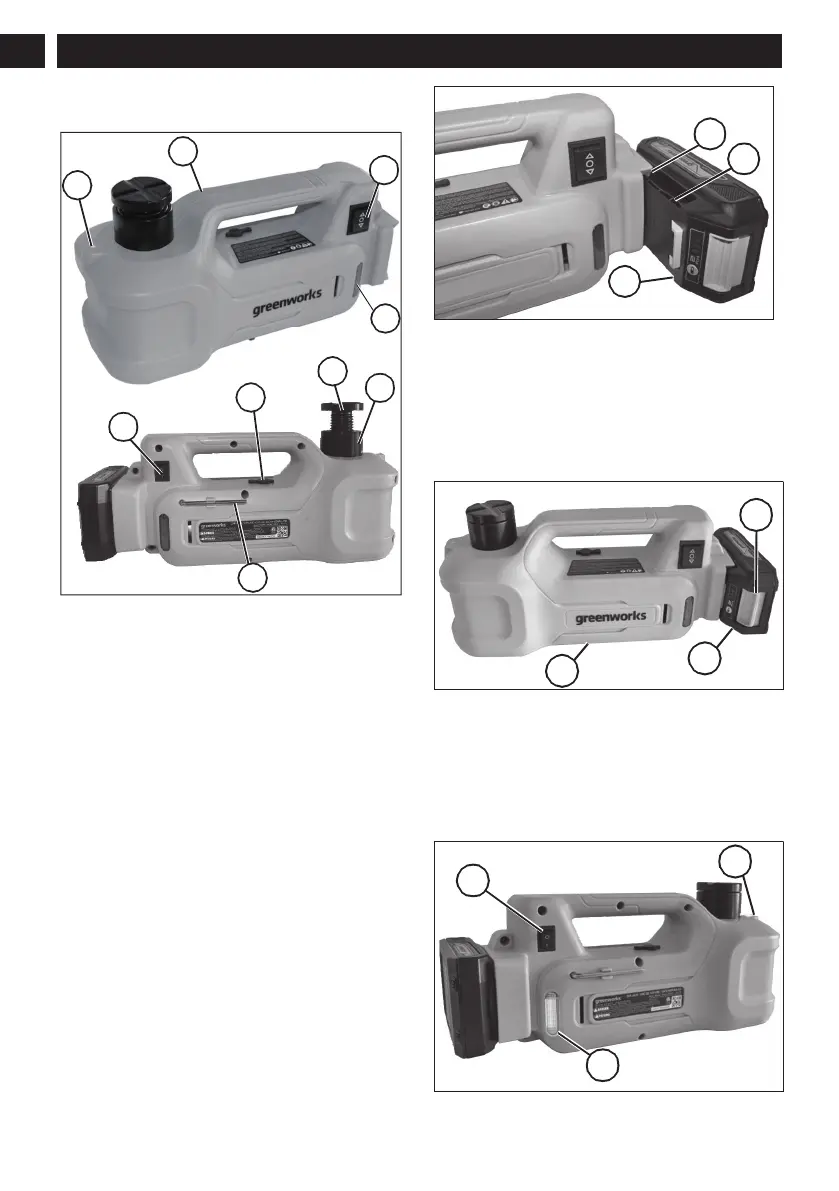

1. Align the lift grooves (1) on the battery compartment
with the ribs (2) on the battery pack (3).
2. Push the battery pack into the jack battery
compartment until the battery locks firmly into place.
Note: There will be a “click” when the battery is
correctly installed.
4.2 REMOVE THE BATTERY PACK
1
2
3
1. Press and hold the battery release button (1).
2. Remove the battery (2) from the jack (3).
5 OPERATION
5.1 TURN THE LIGHTS ON
1. Install the battery pack.
GW000025
1
3
2
8
