GreenWorks MO40L01 - Installing Side Discharge Chute

INSTALLING SIDE DISCHARGE CHUTE (See Figure 6)
• Lift the side discharge cover (1).
• Align the grooves (2) on the side discharge chute (3) with the pins (4) on the underside of the
discharge cover.
• Lower the discharge chute until the hooks on the mower deck are secured in the openings of
the discharge chute.
• Release the side discharge cover.
ASSEMBLY INSTRUCTIONS

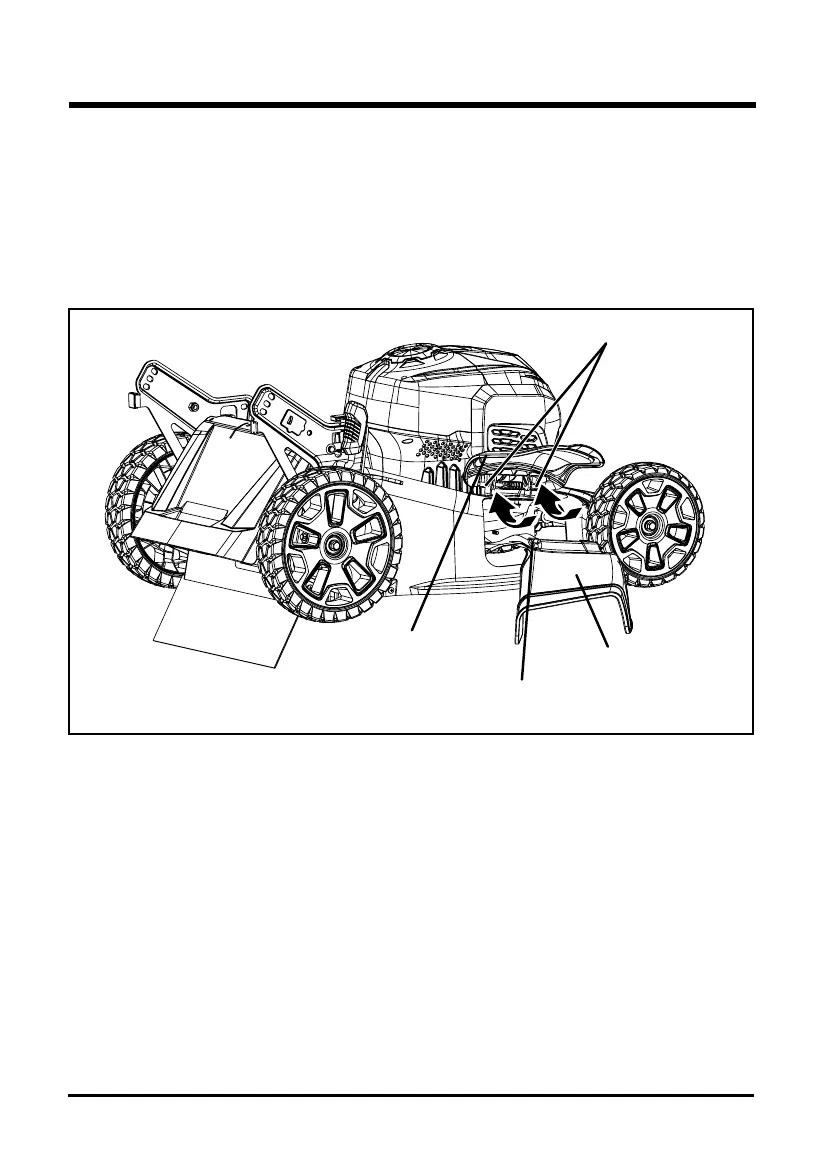

Fig. 6
(3) Side discharge chute
(2) Groove
18
(1) Side discharge cover
(4) Pins
