Operation manual SP 9 - Compact
CHAPTER V – ATTACHEMENT AND DISENGAGEMENT – Page 1
5. ATTACHMENT AND DISENGAGEMENT
5.1. THE SECURE ATTACHMENT AND DISENGAGEMENT OF
THE PLOUGH
Do not let anybody to stay between the tractor and the plough when it is backing for attachment.
Before leaving the driving cabin put t
he gear-change
into the «Parking» position, pull the hand-brake, stop
the engine, take out the starter key and put it into
your pocket.
The plough must be put on the ground before
disengaging. Make sure that the plough is placed on
the stable plane surface.
5.2. THE PLOUGH ATTACHMENT TO THE TRACTOR
5.2.1. In the case if tractor equipped with fixed ball axle-journal bottom
lifting levers:
Before every work be sure to control the plough journals and the diameter of the ball axle-journal
are the same.

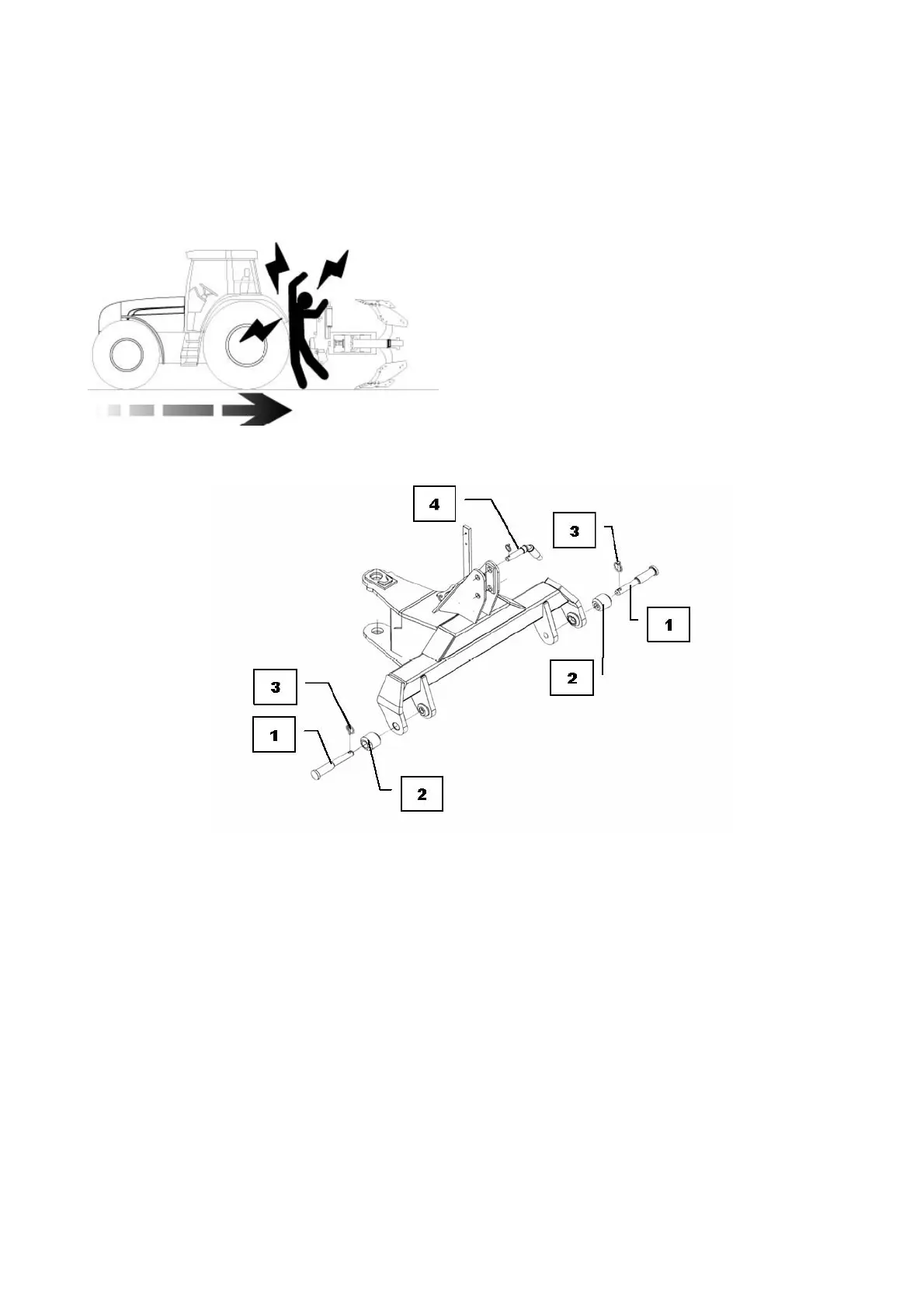

Take out the plough journals (1) and drag binder (2) with the help of pulling out the security pins
and bolts (3),
Back the tractor that the holes of the bottom lifting levers be in the same line with the plough
traversing rod.
To avoid the lateral slipping of the levers on the pins use the fixing brackets (2). If clearance is too
big get the fixing brackets of the suitable length.
Adjust to each other the pins (1) and fixing brackets (2) then fasten them with the help of security
pins and bolts (3).
